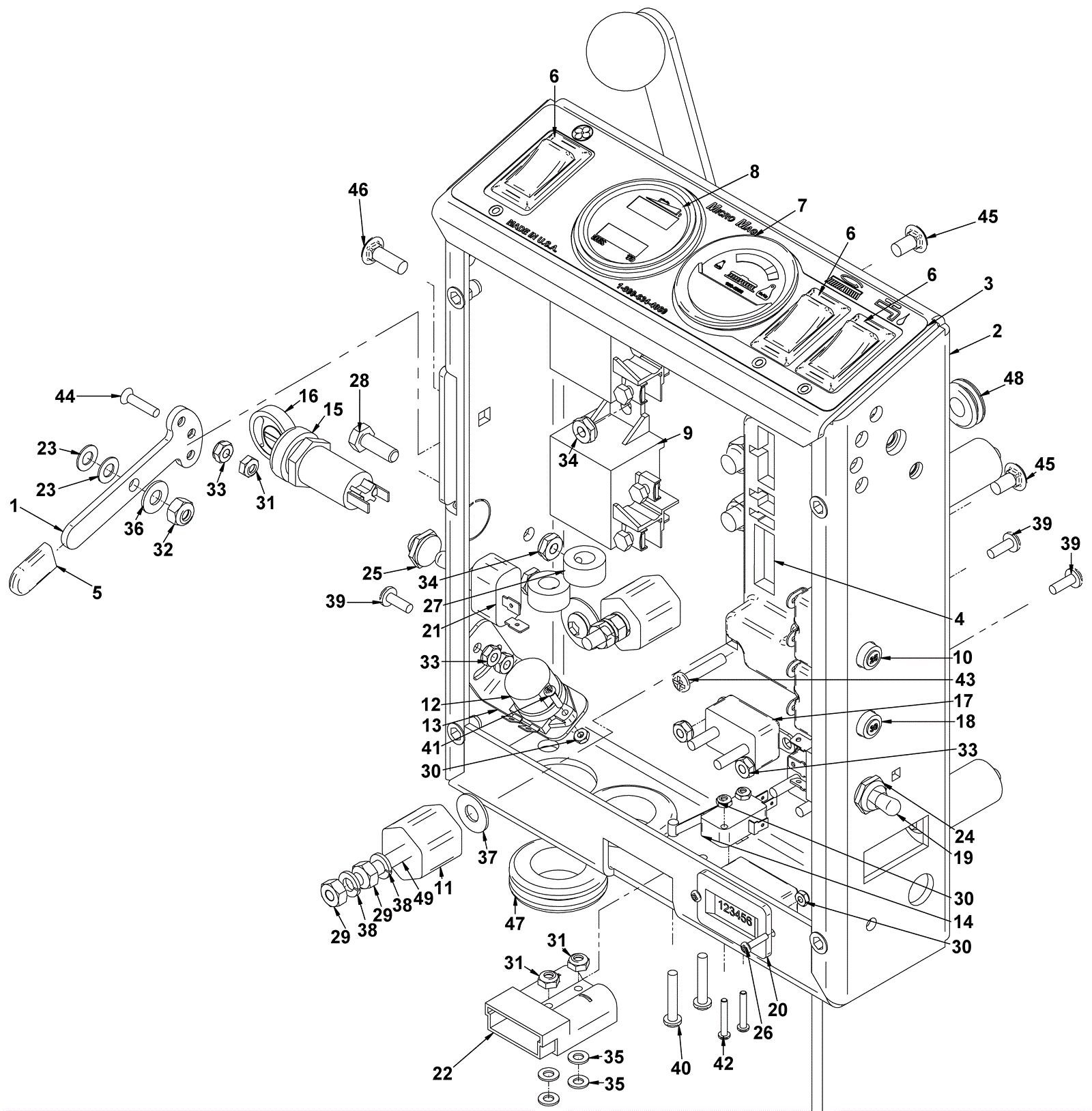

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
202-5383
|
Valve lever |
1 |
|
|
2 |
202-5384
|
Traction control panel |
1 |
|
|
3 |
202-5385
|
Control panel decal |
1 |
|
|
5 |
202-5386
|
Handle grip (blue) |
1 |
|
|
6 |
202-5388
|
Rocker switch |
3 |
|
|
7 |
202-4159
|
40amp brush pressure gauge |
1 |
|
|
8 |
202-2855
|
Battery meter |
1 |
|
|
9 |
202-4165
|
24V 50amp relay |
1 |
|
|
10 |
202-2241
|
25amp resettable fuse |
1 |
|
|
11 |
202-2858
|
Switchboard insulator |
1 |
|
|
12 |
202-2859
|
Tilt switch |
1 |
|
|
13 |
202-2860
|
Tilt switch bracket |
1 |
|
|
14 |
202-0721
|
Microswitch |
1 |
|
|
15 |
202-2300
|
Key switch with key entry (red) and ring (black) |
1 |
|
|
16 |
991-1634
|
Key (pkg of 2) |
1 |
|
|
17 |
202-2052
|
15amp circuit breaker |
1 |
|
|
18 |
202-2242
|
30amp fuse |
1 |
|
|
19 |
202-0521
|
Toggle switch |
1 |
|
|
20 |
202-5155
|
Hour meter |
1 |
|
|
21 |
202-0097
|
Toggle switch |
1 |
|
|
22 |
991-9284
|
50amp charger plug SB50 with pins (red) |
1 |
|
|
23 |
202-1196
|
Washer 17/64 x 21/64 nylon flat |
2 |
|
|
24 |
202-1865
|
Toggle switch protective boot (blue) |
1 |
|
|
25 |
202-1355
|
Toggle switch protective boot (black) |
1 |
|
|
26 |
999-0983
|
Screw 4-40 x 1 pan head phillips zinc plated |
1 |
|
|
27 |
202-2964
|
Shaft collar |
2 |
|
|
28 |
999-0334
|
Bolt 1/4-20 x 3/4 inch hex head stainless steel |
2 |
|
|
29 |
999-0609
|
Nut 1/4-20 hex stainless steel |
4 |
|
|
30 |
999-0295
|
Nut 4-40 nylon insert lock stainless steel |
5 |
|
|
31 |
999-0357
|
Nut 8-32 nylon insert lock stainless steel |
36 |
|
|
32 |
999-0294
|
Nut 1/4-20 hex nylon lock type NE stainless steel |
1 |
|
|
33 |
999-1464
|
Nut 8-32 keps lock with external tooth lockwasher ss |
7 |
|
|
34 |
999-1466
|
Nut 1/4-20 lock with external toothed lockwasher SS |
6 |
|
|
35 |
999-0266
|
Washer #8 SAE flat stainless steel |
4 |
|
|
36 |
999-0335
|
Washer 1/4 x 5/8 SAE flat stainless steel |
1 |
|
|
37 |
999-0549
|
Washer 5/16 x 3/4 SAE flat stainless steel |
2 |
|
|
38 |
999-0632
|
Washer 1/4 split lock stainless steel |
8 |
|
|
39 |
999-0916
|
Screw 8-32 x 1/2 pan head phillips stainless steel |
6 |
|
|
40 |
999-1574
|
Screw 8-32 x 1 pan head phillips stainless steel |
2 |
|
|
41 |
202-2370
|
Screw 4-40 x 1/2 Phillips pan head stainless steel |
2 |
|
|
42 |
202-2371
|
Screw 4-40 x 3/4 round pan head |
2 |
|
|
43 |
999-0870
|
Screw 8 x 3/4 pan head phillips stainless steel |
2 |
|
|
44 |
999-1851
|
Screw 8-32 x 3/4 phillips flat head stainless steel |
1 |
|
|
46 |
999-0963
|
Bolt 1/4-20 x 3/4 carriage head stainless steel |
1 |
|
|
47 |
202-2592
|
Grommet |
2 |
|
|
48 |
202-3348
|
Rubber grommet |
1 |
|
|
49 |
202-5389
|
Stud |
2 |
|
|
