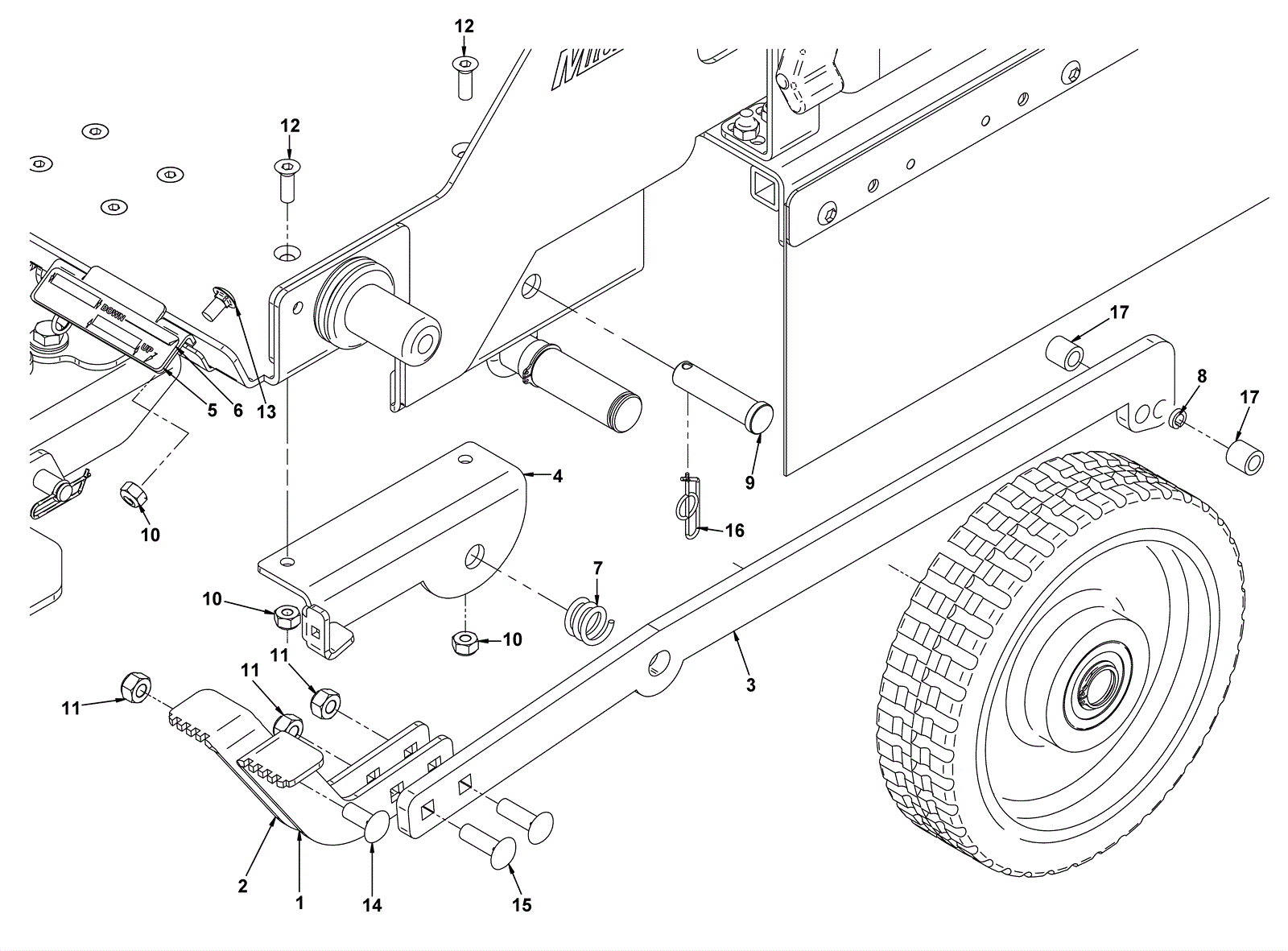

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
202-5355
|
Left side foot pedal |
1 |
|
|
2 |
202-5356
|
Right side foot pedal |
1 |
|
|
3 |
202-5357
|
Foot pedal arm |
1 |
|
|
4 |
202-5358
|
Foot pedal arm lock |
1 |
|
|
5 |
202-5359
|
Decal bracket |
1 |
|
|
6 |
202-5360
|
Foot pedal decal |
1 |
|
|
7 |
202-5361
|
Spring |
1 |
|
|
8 |
202-5304
|
Spring roll pin |
1 |
|
|
9 |
202-3401
|
Clevis pin |
1 |
|
|
10 |
999-0294
|
Nut 1/4-20 hex nylon lock type NE stainless steel |
3 |
|
|
11 |
999-0423
|
Nut 5/16-18 nylon insert lock stainless steel |
3 |
|
|
12 |
999-1571
|
Screw 1/4-20 x 3/4 flat head socket stainless steel |
2 |
|
|
14 |
999-0967
|
Bolt 5/16-18 x 3/4 carriage head stainless steel |
1 |
|
|
15 |
999-9066
|
Bolt 5/16-18 x 1 carriage head stainless steel |
2 |
|
|
16 |
202-2059
|
Cotter ring |
1 |
|
|
17 |
202-0589
|
5/16 clear tubing |
2 |
|
|
