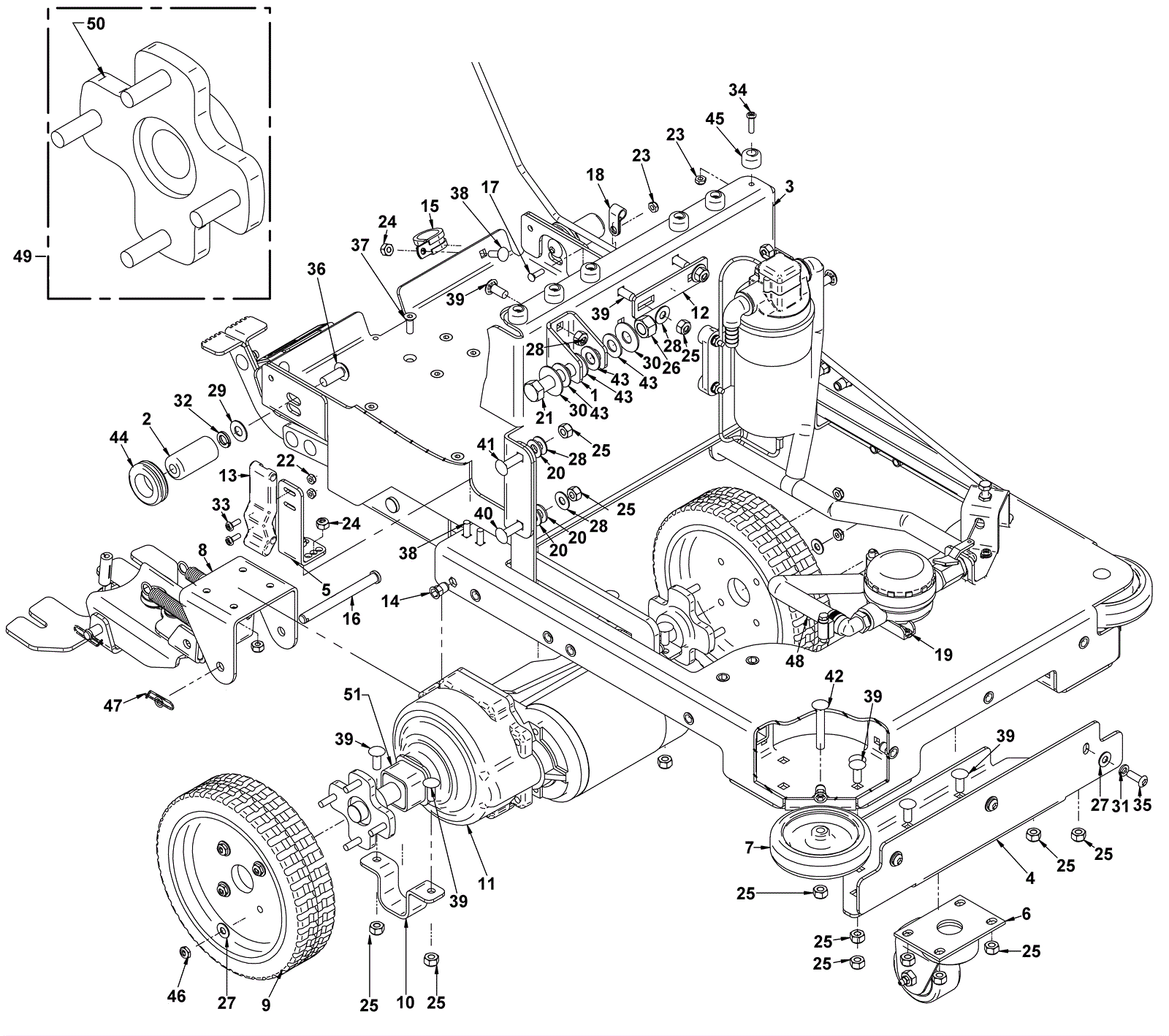

# | Part | Description | Price | Req | Notes | Availability |
1 |
202-5316
|
Lifting bracket |
$15.00
|
1 |
|
usually ships 1-5 days |
2 |
202-5317
|
Female stud |
$25.60
|
2 |
|
usually ships 3-10 days |
3 |
202-5338
|
17 inch main frame |
$947.80
|
1 |
|
usually ships 1-5 days |
4 |
202-5349
|
Single caster mount |
$50.60
|
1 |
|
usually ships 1-5 days |
5 |
202-5319
|
Latch bracket |
$19.40
|
2 |
|
usually ships 1-5 days |
6 |
202-5064
|
Caster wheel |
$65.50
|
1 |
|
usually ships 3-10 days |
7 |
202-5079
|
4 inch wheel |
$8.90
|
2 |
|
ships same day |
8 |
202-5327
|
Squeegee drag bracket |
$25.60
|
1 |
|
usually ships 1-5 days |
9 |
202-0920
|
Solid tire (gray) |
$160.40
|
2 |
|
usually ships 3-10 days |
10 |
202-0911
|
Axle mount |
$16.30
|
2 |
|
usually ships 1-5 days |
11 |
202-0908
|
Transaxle assembly |
$863.40
|
1 |
|
usually ships 3-10 days |
12 |
202-3279
|
Tank support strap |
$10.78
|
1 |
|
usually ships 3-10 days |
13 |
202-1487
|
Latch |
$25.19
|
2 |
|
usually ships 3-10 days |
14 |
202-5284
|
Nut 1/4-20 hex crimp long |
$5.00
|
17 |
|
usually ships 1-5 days |
15 |
202-5105
|
1 inch rubber loop clamp |
$7.10
|
1 |
|
usually ships 1-5 days |
16 |
202-1968
|
Clevis pin |
$6.40
|
1 |
|
usually ships 3-10 days |
17 |
999-1508
|
Bolt 10-32 x 5/8 round carriage head stainless steel |
$0.90
|
1 |
|
usually ships 1-5 days |
18 |
202-2431
|
P clamp |
$5.00
|
1 |
|
usually ships 1-5 days |
19 |
202-2589
|
Nut 10-32 crimp hex |
$5.00
|
4 |
|
usually ships 1-5 days |
20 |
202-2210
|
Washer 3/8 x 3/4 flat nylon |
$5.50
|
6 |
|
usually ships 3-10 days |
21 |
999-1113
|
Bolt 1/2-13 x 2 1/2 hex cap stainless steel |
$3.34
|
1 |
|
ships same day |
22 |
999-0357
|
Nut 8-32 nylon insert lock stainless steel |
$0.90
|
4 |
|
ships same day |
23 |
999-0086
|
Nut 10-32 nylon insert lock zinc plated |
$0.99
|
7 |
|
ships same day |
24 |
999-0294
|
Nut 1/4-20 hex nylon lock type NE stainless steel |
$1.18
|
12 |
|
ships same day |
25 |
999-0423
|
Nut 5/16-18 nylon insert lock stainless steel |
$0.99
|
22 |
|
ships same day |
26 |
999-1208
|
Nut 1/2-13 nylon insert lock stainless steel |
$2.30
|
1 |
|
ships same day |
27 |
999-0335
|
Washer 1/4 x 5/8 SAE flat stainless steel |
$0.99
|
13 |
|
ships same day |
28 |
999-0549
|
Washer 5/16 x 3/4 SAE flat stainless steel |
$0.99
|
6 |
|
ships same day |
29 |
999-0617
|
Washer 3/8 x 1 flat stainless steel |
$1.82
|
2 |
|
ships same day |
30 |
999-0559
|
Washer 1/2 x 1/4 flat stainless steel |
$0.99
|
2 |
|
ships same day |
31 |
999-0632
|
Washer 1/4 split lock stainless steel |
$0.99
|
3 |
|
ships same day |
32 |
999-0659
|
Washer 3/8 medium split lock stainless steel |
$0.35
|
2 |
|
ships same day |
33 |
999-0916
|
Screw 8-32 x 1/2 pan head phillips stainless steel |
$0.90
|
4 |
|
ships same day |
34 |
999-1044
|
Screw 10-32 x 3/4 pan head phillips stainless steel |
$0.90
|
6 |
|
ships same day |
35 |
999-0867
|
Bolt 1/4-20 x 3/4 button head socket cap stainless steel |
$0.90
|
3 |
|
ships same day |
36 |
999-1847
|
Screw 3/8-16 x 1 1/2 button head socket cap stainless steel |
$3.46
|
2 |
|
usually ships 1-5 days |
37 |
999-1571
|
Screw 1/4-20 x 3/4 flat head socket stainless steel |
$0.90
|
6 |
|
ships same day |
38 |
999-0963
|
Bolt 1/4-20 x 3/4 carriage head stainless steel |
$1.36
|
5 |
|
ships same day |
39 |
999-0967
|
Bolt 5/16-18 x 3/4 carriage head stainless steel |
$1.96
|
16 |
|
ships same day |
40 |
999-9066
|
Bolt 5/16-18 x 1 carriage head stainless steel |
$1.34
|
2 |
|
ships same day |
41 |
999-1370
|
Bolt 5/16-18 x 1 1/2 carriage head stainless steel |
$0.90
|
2 |
|
usually ships 1-5 days |
42 |
202-2100
|
Bolt 5/16-18 x 2 carriage head |
$5.50
|
2 |
|
ships same day |
43 |
999-0566
|
Washer 1/2 flat nylon |
$0.99
|
4 |
|
ships same day |
44 |
202-2592
|
Grommet |
$5.00
|
2 |
|
usually ships 3-10 days |
45 |
202-3275
|
Rubber bumper |
$5.00
|
6 |
|
ships same day |
46 |
999-0304
|
Nut 1/4-20 nylon lock jam stainless steel |
$0.99
|
8 |
|
ships same day |
47 |
202-2036
|
Cotter pin |
$5.00
|
1 |
|
usually ships 3-10 days |
48 |
202-5533
|
Hose (elbow to valve) (OBSOLETE) |
Call for price
|
1 |
|
usually ships 1-5 days |
49 |
202-1366
|
Transaxle drive hub with hardware |
$98.32
|
1 |
|
ships same day |
50 |
202-1634
|
MOTOR BRUSH |
$26.80
|
1 |
|
usually ships 3-10 days |
51 |
202-1628
|
MOUNTING SLEEVE |
$5.00
|
1 |
|
usually ships 1-5 days |
