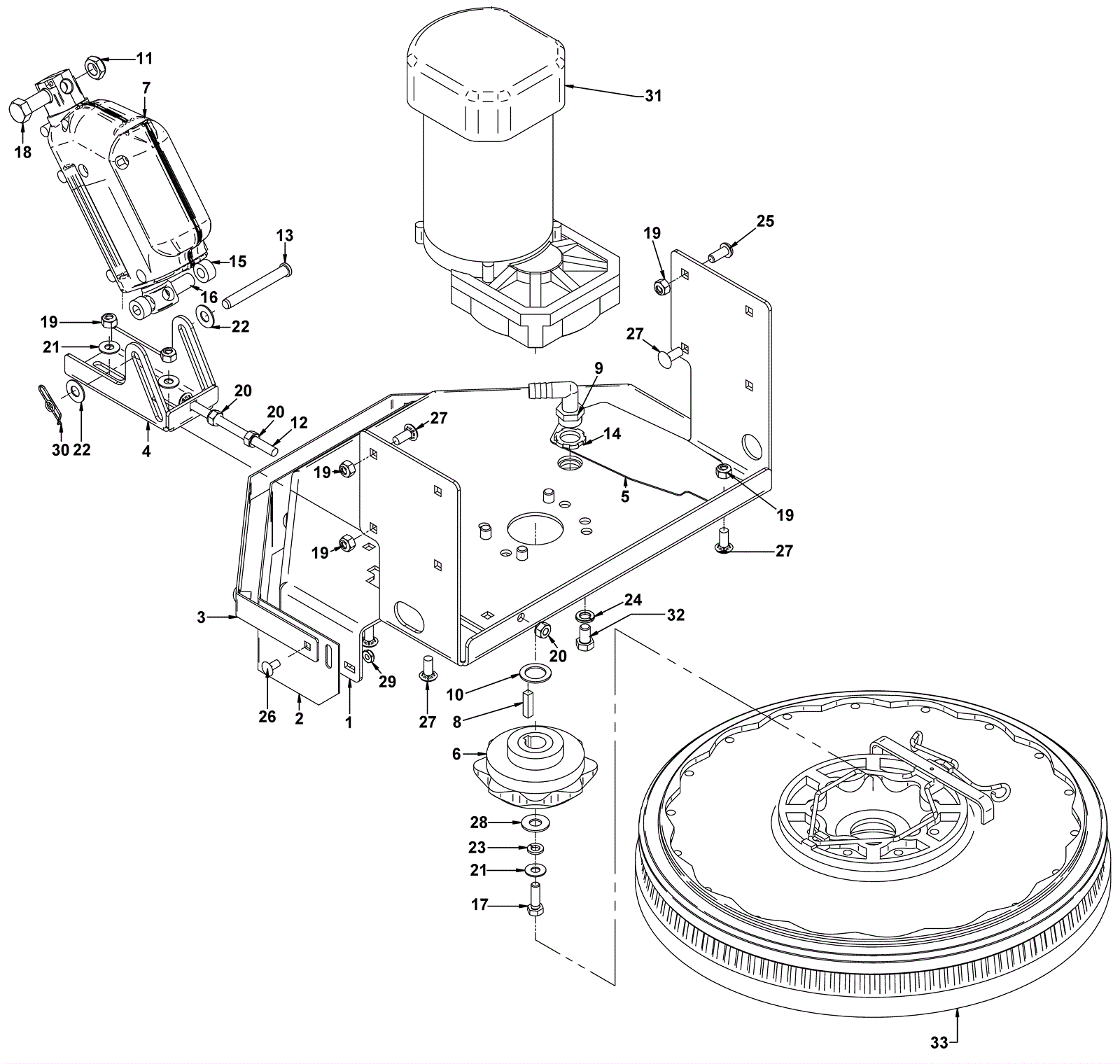

| # | Part | Description |
Req | Notes | Availability |
|---|
1a |
202-5332
|
17 inch disk deck |
1 |
(17 inch) |
usually ships 1-5 days |
1b |
202-5344
|
20 inch disk deck |
1 |
(20 inch) |
usually ships 1-5 days |
2a |
202-5333
|
17 inch disk deck curtain |
1 |
(17 inch) |
usually ships 1-5 days |
2b |
202-5345
|
20 inch disk deck curtain |
1 |
(20 inch) |
usually ships 11-19 days |
3a |
202-5334
|
17 inch disk deck curtain band |
1 |
(17 inch) |
usually ships 1-5 days |
3b |
202-5346
|
20 inch disk deck curtain band |
1 |
(20 inch) |
usually ships 11-19 days |
4 |
202-5336
|
Lifting bracket |
1 |
|
usually ships 1-5 days |
5 |
202-4130
|
Cover plate |
1 |
|
usually ships 11-19 days |
6 |
202-0330
|
Metal brush driver |
1 |
|
usually ships 11-19 days |
7 |
202-4042
|
24V actuator |
1 |
|
usually ships 11-19 days |
8 |
202-0331
|
Brush driver key (pkg of 2) |
1 |
|
usually ships 11-19 days |
9 |
202-0333
|
Elbow barb |
1 |
|
usually ships 11-19 days |
10 |
202-1204
|
Washer 3/4 x 1 1/8 flat stainless steel |
1 |
|
usually ships 11-19 days |
11 |
999-9119
|
Nut 1/2-13 nylon hex jam |
1 |
|
usually ships 13-20 days |
12b |
999-1850
|
Bolt 5/16-18 x 5 1/2 round head zinc |
1 |
(20 inch) |
usually ships 1-5 days |
13 |
202-5337
|
Clevis pin |
1 |
|
usually ships 1-5 days |
14 |
999-0330
|
Nut 1/2-13 acorn brass |
2 |
|
usually ships 11-14 days |
15 |
202-2964
|
Shaft collar |
2 |
|
usually ships 1-5 days |
16 |
202-1951
|
Sleeve |
1 |
|
usually ships 11-19 days |
17 |
999-0424
|
Bolt 5/16-18 x 1 hex head stainless steel |
1 |
|
usually ships 11-14 days |
18 |
202-3084
|
Bolt hex head 1/2 x 2 inch stainlee steel |
1 |
|
usually ships 11-19 days |
19 |
999-0423
|
Nut 5/16-18 nylon insert lock stainless steel |
8 |
|
usually ships 11-14 days |
20 |
999-1838
|
Nut 5/16-18 keps lock with external tooth lockwasher |
3 |
|
usually ships 1-5 days |
21 |
999-0549
|
Washer 5/16 x 3/4 SAE flat stainless steel |
3 |
|
usually ships 11-14 days |
22 |
999-0617
|
Washer 3/8 x 1 flat stainless steel |
2 |
|
usually ships 11-14 days |
23 |
999-0553
|
Washer 5/16 medium split lock stainless steel |
1 |
|
usually ships 11-14 days |
24 |
999-0659
|
Washer 3/8 medium split lock stainless steel |
4 |
|
usually ships 11-14 days |
25 |
202-2372
|
Bolt 5/16-18 x 3/4 inch button head socket cap |
1 |
|
usually ships 1-5 days |
27 |
999-0967
|
Bolt 5/16-18 x 3/4 carriage head stainless steel |
7 |
|
usually ships 11-14 days |
28 |
999-0617
|
Washer 3/8 x 1 flat stainless steel |
1 |
|
usually ships 11-14 days |
29 |
999-0304
|
Nut 1/4-20 nylon lock jam stainless steel |
6 |
|
usually ships 11-14 days |
30 |
202-2036
|
Cotter pin |
1 |
|
usually ships 11-19 days |
31a |
202-5443
|
24V 3/4HP 200RPM brush motor |
1 |
(Standard Motor) |
usually ships 11-19 days |
31b |
202-0321
|
24V 1HP 200RPM brush motor |
1 |
(HD Motor) |
usually ships 11-19 days |
32a |
999-1856
|
Screw 3/8-24 x 5/8 hex cap stainless steel |
1 |
(Standard Motor) |
usually ships 11-14 days |
32b |
999-0562
|
Bolt 3/8-16 x 1 hex head stainless steel |
1 |
(HD Motor) |
usually ships 11-14 days |
