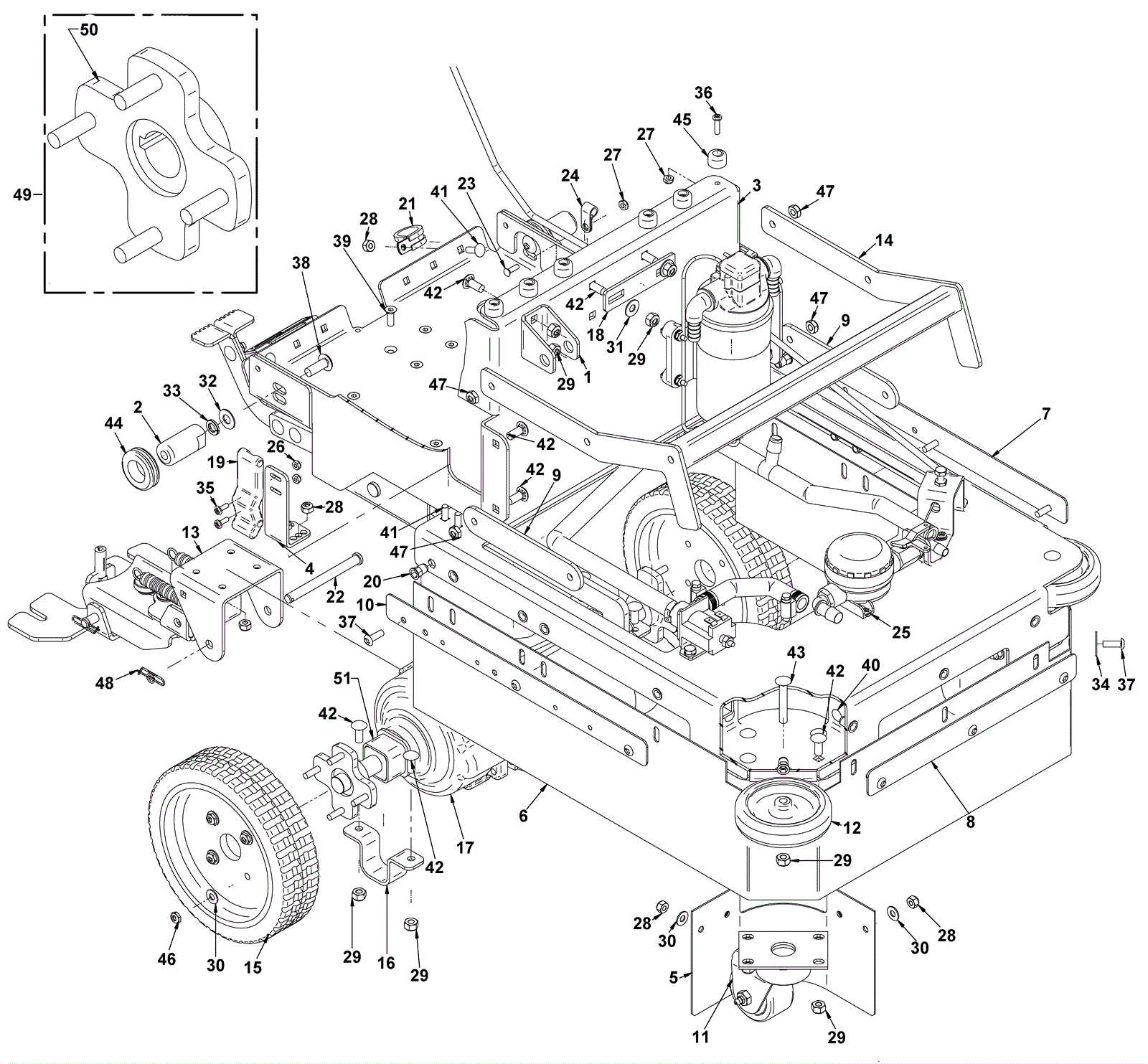

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
202-5316
|
Lifting bracket |
1 |
|
|
2 |
202-5317
|
Female stud |
2 |
|
|
3a |
202-5338
|
17 inch main frame |
1 |
(17 inch) |
|
3b |
202-5347
|
20 inch main frame |
1 |
(20 inch) |
|
4 |
202-5319
|
Latch bracket |
2 |
|
|
5a |
202-5320
|
Caster curtain |
2 |
(17 inch) |
|
5b |
202-5348
|
20 inch frame curtain |
1 |
(20 inch) |
|
6 |
202-5339
|
17 inch traction frame curtain |
1 |
|
|
7a |
202-5322
|
17 inch left side curtain band |
1 |
(17 inch) |
|
7b |
202-5342
|
20 inch curtain band |
1 |
(20 inch) |
|
8 |
202-5323
|
17 inch main frame front curtain band |
1 |
|
|
9 |
202-5325
|
Lateral arm |
2 |
|
|
10a |
202-5326
|
17 inch right side curtain band |
1 |
(17 inch) |
|
10b |
202-5342
|
20 inch curtain band |
1 |
(20 inch) |
|
11 |
302-0255
|
Caster wheel |
2 |
|
|
12 |
202-5079
|
4 inch wheel |
2 |
|
|
13 |
202-5327
|
Squeegee drag bracket |
1 |
|
|
14 |
202-5328
|
Disk lateral arm |
1 |
|
|
15 |
202-0920
|
Solid tire (gray) |
2 |
|
|
16 |
202-0911
|
Axle mount |
2 |
|
|
17 |
202-0908
|
Transaxle assembly |
1 |
|
|
18 |
202-3279
|
Tank support strap |
1 |
|
|
19 |
202-1487
|
Latch |
2 |
|
|
20 |
202-5284
|
Nut 1/4-20 hex crimp long |
17 |
|
|
21 |
202-5105
|
1 inch rubber loop clamp |
1 |
|
|
22 |
202-1968
|
Clevis pin |
1 |
|
|
23 |
999-1508
|
Bolt 10-32 x 5/8 round carriage head stainless steel |
1 |
|
|
24 |
202-2431
|
P clamp |
1 |
|
|
25 |
202-2589
|
Nut 10-32 crimp hex |
4 |
|
|
26 |
999-0357
|
Nut 8-32 nylon insert lock stainless steel |
4 |
|
|
27 |
999-0086
|
Nut 10-32 nylon insert lock zinc plated |
7 |
|
|
28 |
999-0294
|
Nut 1/4-20 hex nylon lock type NE stainless steel |
20 |
|
|
29 |
999-0423
|
Nut 5/16-18 nylon insert lock stainless steel |
18 |
|
|
30 |
999-0335
|
Washer 1/4 x 5/8 SAE flat stainless steel |
16 |
|
|
31 |
999-0549
|
Washer 5/16 x 3/4 SAE flat stainless steel |
2 |
|
|
32 |
999-0617
|
Washer 3/8 x 1 flat stainless steel |
2 |
|
|
33 |
999-0659
|
Washer 3/8 medium split lock stainless steel |
2 |
|
|
34 |
999-1288
|
Washer 1/4 x 1 OD fender stainless steel |
2 |
|
|
35 |
999-0916
|
Screw 8-32 x 1/2 pan head phillips stainless steel |
4 |
|
|
36 |
999-1044
|
Screw 10-32 x 3/4 pan head phillips stainless steel |
6 |
|
|
37 |
999-0867
|
Bolt 1/4-20 x 3/4 button head socket cap stainless steel |
11 |
|
|
38 |
999-1847
|
Screw 3/8-16 x 1 1/2 button head socket cap stainless steel |
2 |
|
|
39 |
999-1571
|
Screw 1/4-20 x 3/4 flat head socket stainless steel |
6 |
|
|
40 |
202-2851
|
Bolt 1/4-20 x 5/8 inch carriage head stainless steel |
8 |
|
|
41 |
999-0963
|
Bolt 1/4-20 x 3/4 carriage head stainless steel |
5 |
|
|
42 |
999-0967
|
Bolt 5/16-18 x 3/4 carriage head stainless steel |
20 |
|
|
43 |
202-2100
|
Bolt 5/16-18 x 2 carriage head |
2 |
|
|
44 |
202-2592
|
Grommet |
2 |
|
|
45 |
202-3275
|
Rubber bumper |
6 |
|
|
46 |
999-0304
|
Nut 1/4-20 nylon lock jam stainless steel |
8 |
|
|
47 |
999-1019
|
Nut 5/16-18 hex jam stainless steel |
4 |
|
|
48 |
202-2036
|
Cotter pin |
1 |
|
|
49 |
202-1366
|
Transaxle drive hub with hardware (OBSOLETE) |
1 |
|
|
50 |
202-1634
|
MOTOR BRUSH |
1 |
|
|
51 |
202-1628
|
MOUNTING SLEEVE |
1 |
|
|
