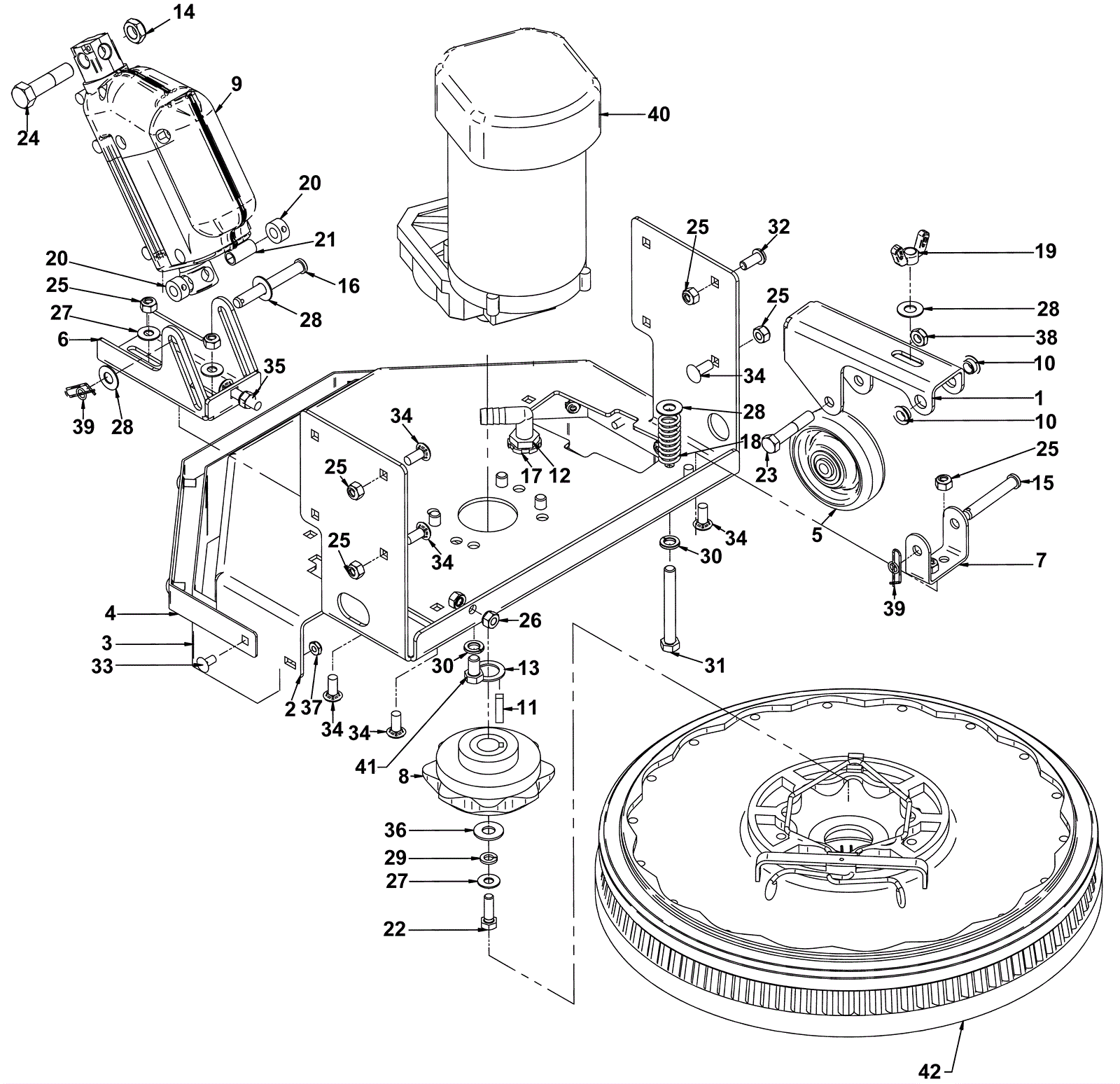

# | Part | Description | Price | Req | Notes | Availability |
1 |
202-5331
|
Deck wheel pivot bracket |
$32.80
|
1 |
|
usually ships 1-5 days |
2a |
202-5332
|
17 inch disk deck |
$236.00
|
1 |
(17 inch) |
usually ships 1-5 days |
2b |
202-5344
|
20 inch disk deck |
$258.20
|
1 |
(20 inch) |
usually ships 1-5 days |
3a |
202-5333
|
17 inch disk deck curtain |
$23.60
|
1 |
(17 inch) |
usually ships 1-5 days |
3b |
202-5345
|
20 inch disk deck curtain |
$23.60
|
1 |
(20 inch) |
usually ships 3-10 days |
4a |
202-5334
|
17 inch disk deck curtain band |
$82.40
|
1 |
(17 inch) |
usually ships 1-5 days |
4b |
202-5346
|
20 inch disk deck curtain band |
$55.00
|
1 |
(20 inch) |
usually ships 3-10 days |
5 |
202-5335
|
Wheel |
$55.50
|
1 |
|
usually ships 3-10 days |
6 |
202-5336
|
Lifting bracket |
$32.60
|
1 |
|
usually ships 1-5 days |
7 |
202-2079
|
Deck wheel pivot support |
$17.60
|
1 |
|
usually ships 1-5 days |
8 |
202-0330
|
Metal brush driver |
$147.95
|
1 |
|
usually ships 3-10 days |
9 |
202-4042
|
24V actuator |
$300.10
|
1 |
|
usually ships 3-10 days |
10 |
202-1239
|
Flanged bearing |
$5.00
|
2 |
|
ships same day |
11 |
202-0331
|
Brush driver key (pkg of 2) |
$9.90
|
1 |
|
ships same day |
12 |
202-0333
|
Elbow barb |
$5.00
|
1 |
|
ships same day |
13 |
202-1204
|
Washer 3/4 x 1 1/8 flat stainless steel |
$5.00
|
1 |
|
usually ships 3-10 days |
14 |
202-2559
|
Nut 1/2 nylock jam |
$5.00
|
1 |
|
usually ships 3-10 days |
15 |
202-5193
|
Clevis pin 3/8 x 2 |
$5.00
|
1 |
|
usually ships 3-10 days |
16 |
202-5337
|
Clevis pin |
$5.00
|
1 |
|
usually ships 1-5 days |
17 |
999-0330
|
Nut 1/2-13 acorn brass |
$5.20
|
2 |
|
ships same day |
18 |
202-2945
|
Spring |
$5.00
|
1 |
|
usually ships 3-10 days |
19 |
999-1848
|
Wing nut 3/8-16 nylon insert zinc |
$2.62
|
1 |
|
usually ships 1-5 days |
20 |
202-2964
|
Shaft collar |
$5.00
|
2 |
|
usually ships 1-5 days |
21 |
202-1951
|
Sleeve |
$5.50
|
1 |
|
usually ships 3-10 days |
22 |
999-0424
|
Bolt 5/16-18 x 1 hex head stainless steel |
$0.99
|
1 |
|
ships same day |
23 |
202-2211
|
Screw 3/8-16 x 2 hex cap stainless steel |
$5.00
|
1 |
|
usually ships 1-5 days |
24 |
202-3084
|
Bolt hex head 1/2 x 2 inch stainlee steel |
$5.00
|
1 |
|
usually ships 3-10 days |
25 |
999-0423
|
Nut 5/16-18 nylon insert lock stainless steel |
$0.99
|
8 |
|
ships same day |
26 |
999-1838
|
Nut 5/16-18 keps lock with external tooth lockwasher |
$0.90
|
3 |
|
usually ships 1-5 days |
27 |
999-0549
|
Washer 5/16 x 3/4 SAE flat stainless steel |
$0.99
|
3 |
|
ships same day |
28 |
999-0617
|
Washer 3/8 x 1 flat stainless steel |
$1.82
|
4 |
|
ships same day |
29 |
999-0553
|
Washer 5/16 medium split lock stainless steel |
$0.99
|
1 |
|
ships same day |
30 |
999-0659
|
Washer 3/8 medium split lock stainless steel |
$0.35
|
5 |
|
ships same day |
31 |
202-3193
|
Bolt 3/8-16 x 3 inch hex head stainless steel |
$5.00
|
1 |
|
usually ships 3-10 days |
32 |
202-2372
|
Bolt 5/16-18 x 3/4 inch button head socket cap |
$5.00
|
1 |
|
usually ships 1-5 days |
34 |
999-0967
|
Bolt 5/16-18 x 3/4 carriage head stainless steel |
$1.96
|
7 |
|
ships same day |
35a |
999-1370
|
Bolt 5/16-18 x 1 1/2 carriage head stainless steel |
$0.90
|
1 |
|
usually ships 1-5 days |
35b |
202-2100
|
Bolt 5/16-18 x 2 carriage head |
$5.50
|
1 |
(20 inch) |
ships same day |
36 |
999-0617
|
Washer 3/8 x 1 flat stainless steel |
$1.82
|
1 |
(17 inch) |
ships same day |
37 |
999-0304
|
Nut 1/4-20 nylon lock jam stainless steel |
$0.99
|
6 |
|
ships same day |
38 |
999-9071
|
Nut 3/8-16 nylon insert jam lock stainless steel |
$1.52
|
1 |
|
ships same day |
39 |
202-2036
|
Cotter pin |
$5.00
|
2 |
|
usually ships 3-10 days |
40a |
202-5443
|
24V 3/4HP 200RPM brush motor |
$473.89
|
1 |
(Standard Motor) |
usually ships 3-10 days |
40b |
202-0321
|
24V 1HP 200RPM brush motor |
$587.17
|
1 |
(HD Motor) |
usually ships 3-10 days |
41a |
999-1856
|
Screw 3/8-24 x 5/8 hex cap stainless steel |
$1.91
|
1 |
(Standard Motor) |
usually ships 14-31 days |
41b |
999-0562
|
Bolt 3/8-16 x 1 hex head stainless steel |
$1.50
|
1 |
(HD Motor) |
ships same day |
