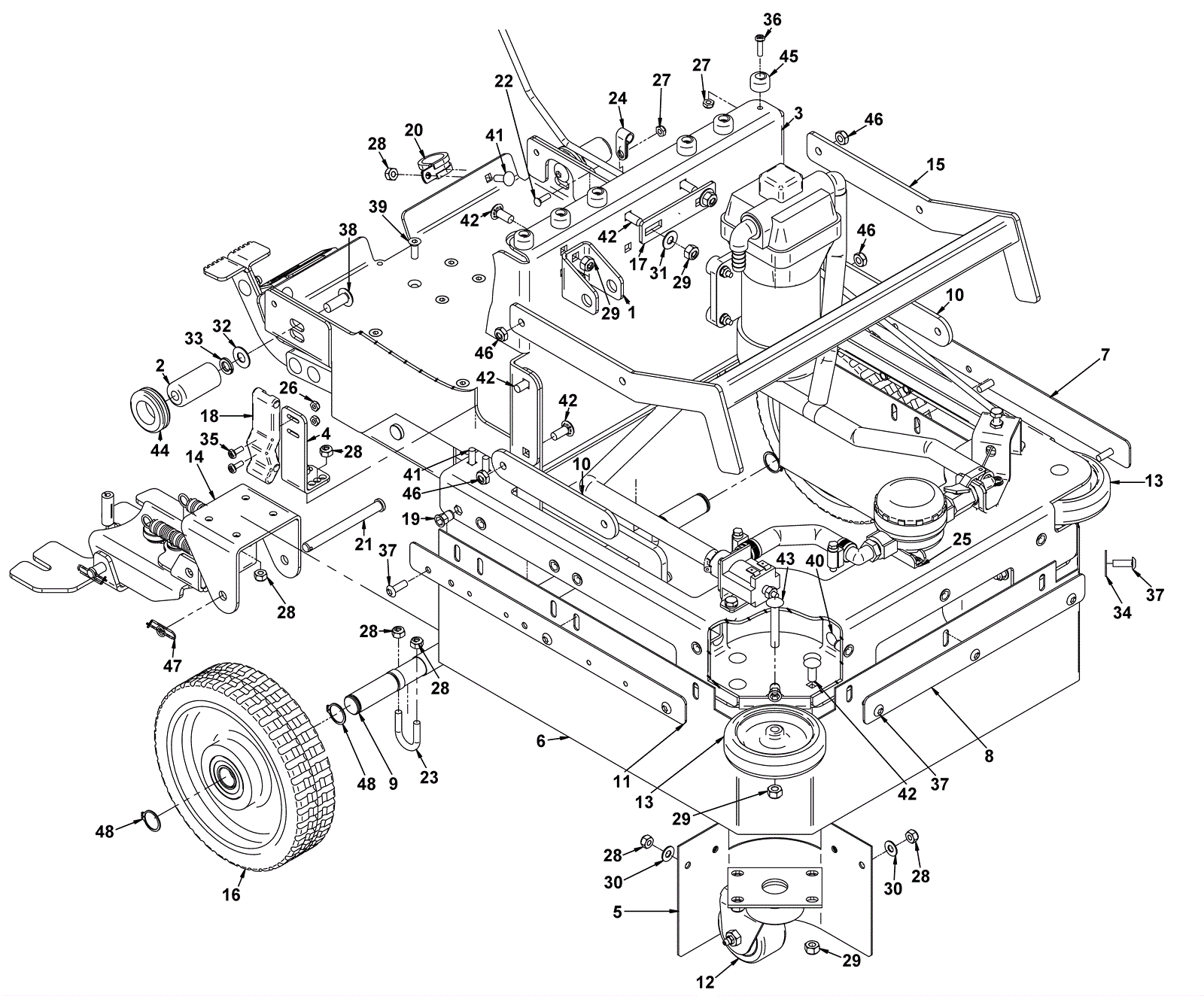

MICROMAG Main Frame Assembly - Pad Driven

#PartDescriptionPriceReqNotesAvailability
1 202-5316 Lifting bracket $16.50 1 usually ships 1-5 days
2 202-5317 Female stud $28.16 2 usually ships 8-12 days
3a 202-5318 17 inch pad assist main frame $955.68 1 (17 inch) usually ships 1-5 days
3b 202-5340 20 inch main frame $968.22 1 (20 inch) usually ships 1-5 days
4 202-5319 Latch bracket $21.34 2 usually ships 1-5 days
5 202-5320 Caster curtain $22.77 2 usually ships 8-12 days
6a 202-5321 17 inch brush frame curtain $56.32 1 (17 inch) usually ships 8-12 days
6b 202-5341 20 inch brush frame curtain $73.48 1 (20 inch) usually ships 8-12 days
7a 202-5322 17 inch left side curtain band $48.62 1 (17 inch) usually ships 1-5 days
7b 202-5342 20 inch left side curtain band $22.00 1 (20 inch) usually ships 1-5 days
8 202-5323 17 inch main frame front curtain band $26.29 1 usually ships 1-5 days
9 202-5324 Axle $66.55 1 usually ships 8-12 days
10 202-5325 Lateral arm $16.50 2 usually ships 1-5 days
11a 202-5326 17 inch right side curtain band $48.62 1 (17 inch) usually ships 1-5 days
11b 202-5343 20 inch right side curtain band $22.99 1 (20 inch) usually ships 1-5 days
12 202-5064 Caster wheel $72.05 2 usually ships 8-12 days
13 202-5079 4 inch wheel $9.79 2 usually ships 8-12 days
14 202-5327 Squeegee drag bracket $28.16 1 usually ships 1-5 days
15 202-5328 Disk lateral arm $129.36 1 usually ships 1-5 days
16 202-4149 Tire (black) $138.38 2 usually ships 8-12 days
17 202-3279 Tank support strap $10.78 1 usually ships 8-12 days
18 202-1487 Latch $25.19 2 usually ships 8-12 days
19 202-5284 Nut 1/4-20 hex crimp long $5.50 17 usually ships 1-5 days
20 202-5105 1 inch rubber loop clamp $7.81 1 usually ships 1-5 days
21 202-1968 Clevis pin $7.04 1 usually ships 8-12 days
22 999-1508 Bolt 10-32 x 5/8 round carriage head stainless steel $0.99 1 usually ships 1-5 days
23 999-0917 U bolt $7.90 2 usually ships 12-18 days
24 202-2431 P clamp $5.50 1 usually ships 1-5 days
25 202-2589 Nut 10-32 crimp hex $5.50 4 usually ships 1-5 days
26 999-0357 Nut 8-32 nylon insert lock stainless steel $0.99 4 ships same day
27 999-0086 Nut 10-32 nylon insert lock zinc plated $0.99 7 ships same day
28 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel $1.18 24 ships same day
29 999-0423 Nut 5/16-18 nylon insert lock stainless steel $0.99 14 ships same day
30 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel $0.99 10 ships same day
31 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel $0.99 2 ships same day
32 999-0617 Washer 3/8 x 1 flat stainless steel $1.82 2 ships same day
33 999-0659 Washer 3/8 medium split lock stainless steel $0.39 2 ships same day
34 999-1288 Washer 1/4 x 1 OD fender stainless steel $0.99 2 ships same day
35 999-0916 Screw 8-32 x 1/2 pan head phillips stainless steel $0.99 4 ships same day
36 999-1044 Screw 10-32 x 3/4 pan head phillips stainless steel $0.99 6 ships same day
37 999-0867 Bolt 1/4-20 x 3/4 button head socket cap stainless steel $0.99 11 ships same day
38 999-1847 Screw 3/8-16 x 1 1/2 button head socket cap stainless steel $3.81 2 usually ships 1-5 days
39 999-1571 Screw 1/4-20 x 3/4 flat head socket stainless steel $0.99 6 ships same day
40 202-2851 Bolt 1/4-20 x 5/8 inch carriage head stainless steel $5.50 8 usually ships 8-12 days
41 999-0963 Bolt 1/4-20 x 3/4 carriage head stainless steel $1.50 5 ships same day
42 999-0967 Bolt 5/16-18 x 3/4 carriage head stainless steel $2.16 16 ships same day
43 202-2100 Bolt 5/16-18 x 2 carriage head $5.50 2 ships same day
44 202-2592 Grommet $5.50 2 usually ships 8-12 days
45 202-3275 Rubber bumper $5.50 6 usually ships 8-12 days
46 999-1019 Nut 5/16-18 hex jam stainless steel $0.99 4 ships same day
47 202-2036 Cotter pin $5.50 1 usually ships 8-12 days
48 202-5330 Retaining ring $5.50 4 usually ships 8-12 days
