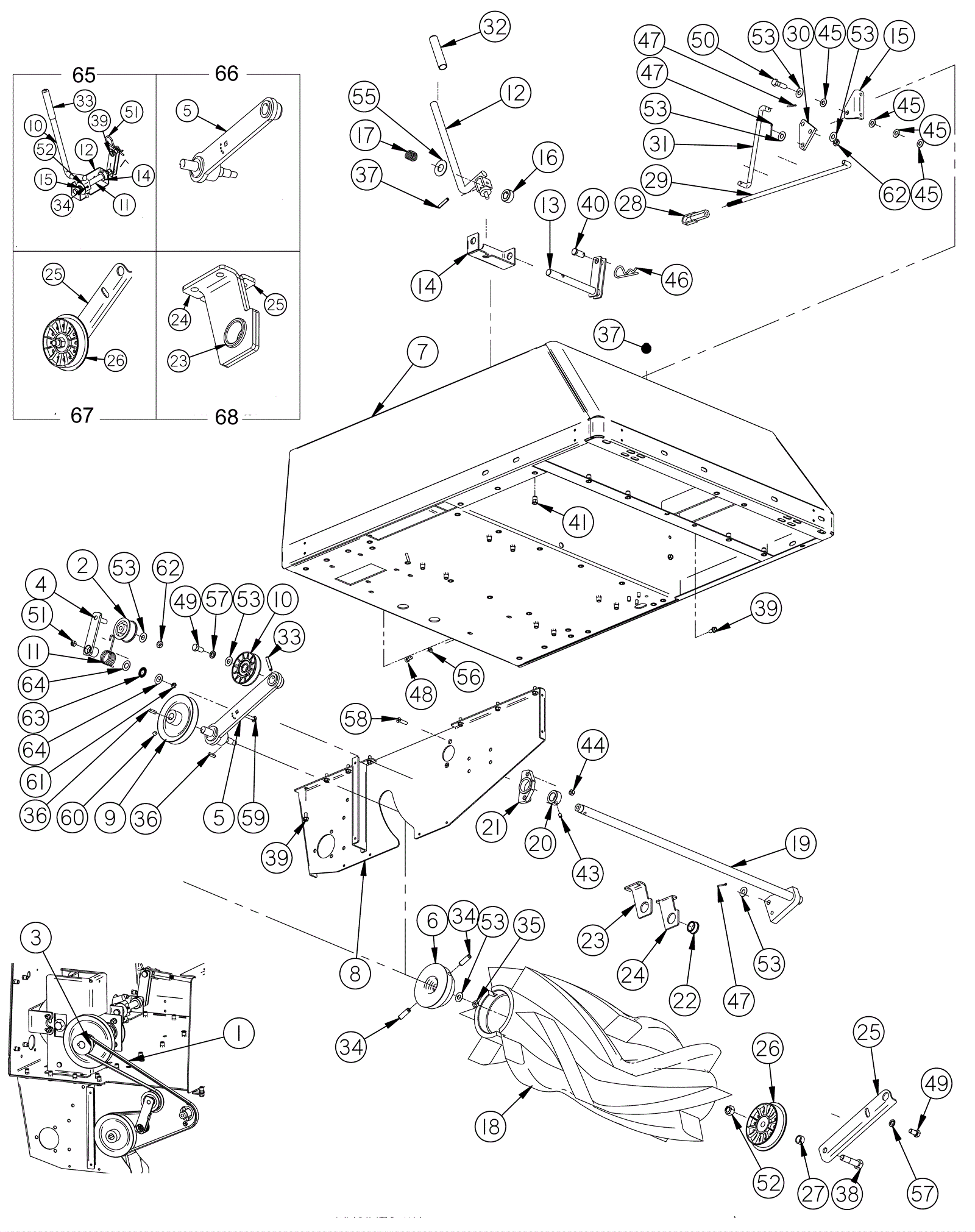

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
202-3455
|
AX48 belt |
1 |
|
|
2 |
202-5223
|
3/4 inch idler pulley |
1 |
|
|
3 |
202-5281
|
Pulley with two set screws |
1 |
|
|
4 |
202-5224
|
Reverse idler arm w/ hardware |
1 |
|
|
5 |
202-5227
|
Main broom lateral arm with bearing |
1 |
|
|
6 |
202-7545
|
Bearing,Broom Driver |
1 |
|
|
7 |
202-2673
|
Main body |
1 |
|
|
8 |
202-2710
|
Right inner side panel |
1 |
|
|
9 |
202-2760
|
Broom drive pulley |
1 |
|
|
10 |
202-2761
|
Idler pulley |
1 |
|
|
11 |
202-0277
|
Tension spring |
1 |
|
|
12 |
202-2742
|
Broom lift lever |
1 |
|
|
13 |
202-2767
|
Broom lift shaft |
1 |
|
|
14 |
202-2764
|
Main broom left hand lift lever |
1 |
|
|
15 |
202-2765
|
Rotary link base |
1 |
|
|
16 |
202-2745
|
Lift lever collar |
1 |
|
|
17 |
202-2746
|
Lift lever spring |
1 |
|
|
18 |
202-2457
|
26 inch union and steel main broom |
1 |
|
|
19 |
202-2766
|
Broom suspension arm |
1 |
|
|
20 |
202-2216
|
Shaft collar with set screw |
1 |
|
|
21 |
202-2724
|
Support block |
1 |
|
|
22 |
202-1397
|
Flanged bushing |
1 |
|
|
23 |
202-2772
|
Left hand support bracket tab |
1 |
|
|
24 |
202-2773
|
Right hand support bracket tab |
1 |
|
|
25 |
202-2774
|
Idler arm |
1 |
|
|
26 |
202-2775
|
Idler drum |
1 |
|
|
27 |
202-2776
|
Idler drum spacer |
1 |
|
|
28 |
202-2748
|
Adjustable broom lift |
1 |
|
|
29 |
202-2777
|
Broom long link |
1 |
|
|
30 |
202-2778
|
Broom rotary link |
1 |
|
|
31 |
202-2779
|
Broom crank link |
1 |
|
|
32 |
202-0506
|
Handle grip |
1 |
|
|
33 |
202-5140
|
Spring roll pin 1/4 x 1 1/2 |
1 |
|
|
34 |
202-5304
|
Spring roll pin |
2 |
|
|
35 |
999-1151
|
Nut 3/8-24 nylon insert jam lock stainless steel |
1 |
|
|
36 |
202-3153
|
Square keyway |
2 |
|
|
37 |
202-2755
|
Spring knob 1/4 x 1 1/4 (OBSOLETE) |
1 |
|
|
38 |
999-0261
|
Bolt 1/2-13 x 2 hex head grade 5 |
1 |
|
|
39 |
202-2687
|
Bolt 1/4-20 x 1/2 case hardened zinc flange |
12 |
|
|
40 |
202-2756
|
Clevis pin 1/2 x 1 (OBSOLETE) |
1 |
|
|
41 |
999-0190
|
Nut 1/4-20 hex plain finish |
50 |
|
|
43 |
999-0095
|
Screw 1/4-20 x 3/8 cup point socket set alloy plain finish |
1 |
|
|
44 |
999-0294
|
Nut 1/4-20 hex nylon lock type NE stainless steel |
3 |
|
|
45 |
202-2210
|
Washer 3/8 x 3/4 flat nylon |
4 |
|
|
46 |
202-2757
|
Hitch pin |
1 |
|
|
47 |
202-2783
|
Cotter pin |
3 |
|
|
48 |
999-0644
|
Bolt 1/4-20 x 1/2 hex head stainless steel |
2 |
|
|
49 |
999-0493
|
Bolt 3/8-16 x 3/4 hex head stainless steel |
2 |
|
|
50 |
999-0649
|
Bolt 3/8-16 x 1 1/4 hex head stainless steel |
1 |
|
|
51 |
999-0294
|
Nut 1/4-20 hex nylon lock type NE stainless steel |
1 |
|
|
52 |
999-1208
|
Nut 1/2-13 nylon insert lock stainless steel |
1 |
|
|
53 |
999-0617
|
Washer 3/8 x 1 flat stainless steel |
7 |
|
|
54 |
999-0559
|
Washer 1/2 x 1/4 flat stainless steel |
1 |
|
|
55 |
999-1844
|
Washer 5/8 OD flat stainless steel |
1 |
|
|
56 |
999-0632
|
Washer 1/4 split lock stainless steel |
2 |
|
|
57 |
999-0659
|
Washer 3/8 medium split lock stainless steel |
2 |
|
|
58 |
999-1345
|
Screw 1/4-20 x 1 flat head phillips stainless steel |
2 |
|
|
59 |
999-1443
|
Bolt 1/4-20 x 1 1/4 carriage stainless steel |
1 |
|
|
60 |
999-0346
|
Screw 5/16-18 x 1/4 set cup point socket alloy plain finish |
1 |
|
|
61 |
999-0304
|
Nut 1/4-20 nylon lock jam stainless steel |
1 |
|
|
62 |
999-9071
|
Nut 3/8-16 nylon insert jam lock stainless steel |
2 |
|
|
63 |
202-5232
|
Roller thrust bearing |
1 |
|
|
64 |
202-5233
|
Thrust bearing washer |
2 |
|
|
65 |
202-5312
|
Main lever assembly |
1 |
(includes 10-12, 14, 15, 33, 34, 39, 51, 52 and hardware) |
|
66 |
202-5227
|
Main broom lateral arm with bearing |
1 |
|
|
67 |
202-5313
|
Main broom arm |
1 |
(includes 25-27) |
|
68 |
202-5314
|
Left side main bearing and bracket |
1 |
(includes 23-25) |
|
N/S |
202-2781
|
Screw 10-32 x 1 set cup point |
1 |
|
|
