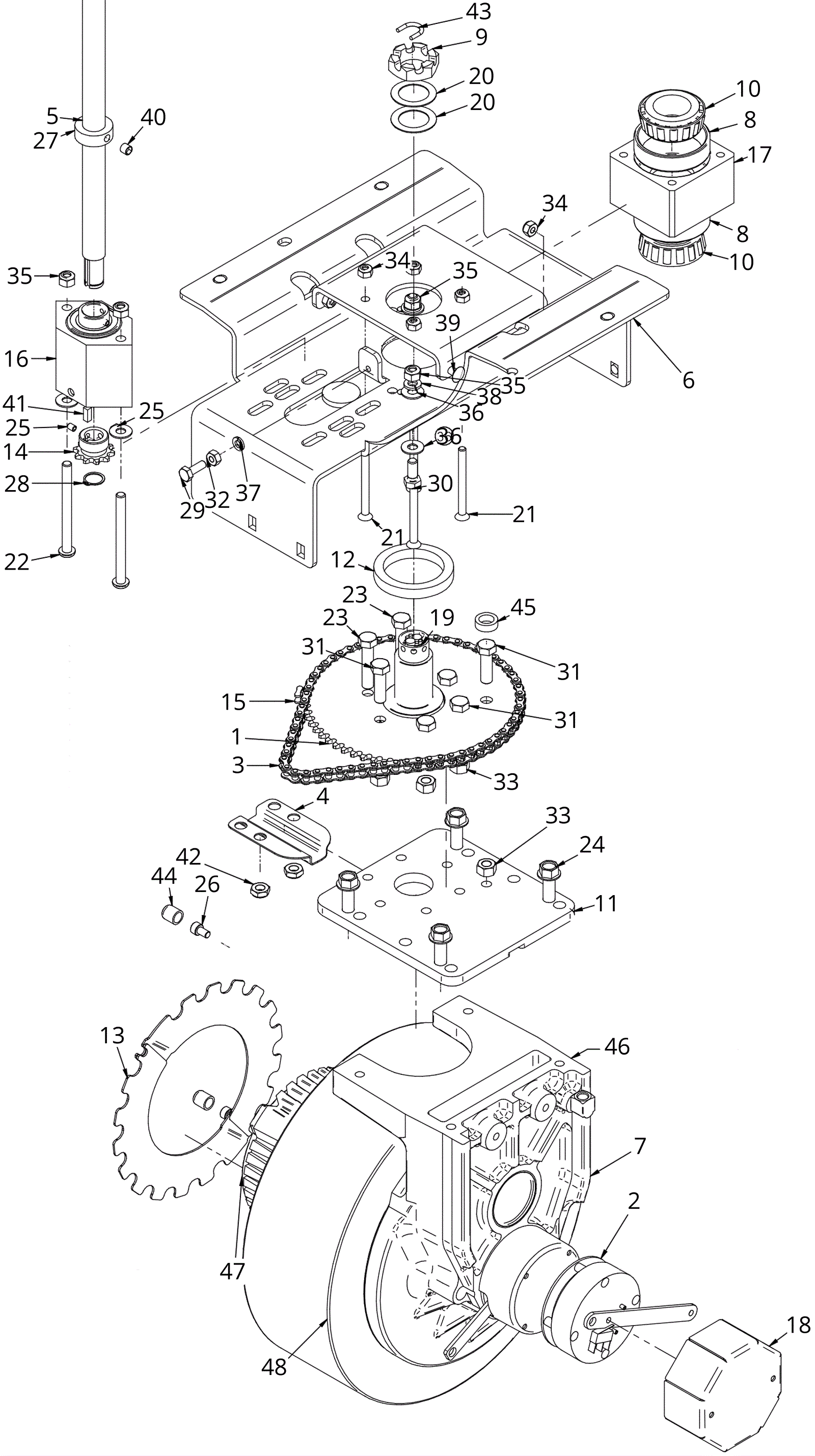

TR Front Drive Wheel Assembly - 12 inch optional

#PartDescriptionPriceReqNotesAvailability
1 202-1894 60 toothed sprocket $83.11 1 usually ships 1-5 days
2 202-5075 36V electric brake $741.65 1 ships same day
3 202-1897 Steering chain $39.27 1 ships same day
4 202-2960 Wire guide $24.75 1 usually ships 8-13 days
5a 202-2527 Lower sheering shaft $99.88 1 (old style) usually ships 8-13 days
5b 202-4357 Lower steering shaft $112.31 1 (new style) usually ships 8-13 days
6 202-4358 12 inch front drop plate $328.13 1 usually ships 8-13 days
7 202-7576 Front Wheel Drive,12 inch,24V W/Plate & Hardware $3,539.58 1 usually ships 8-13 days
8 202-0767 Bearing cap $27.50 2 usually ships 8-13 days
9 202-1166 Slotted castle nut $9.79 1 usually ships 8-13 days
10 202-5067 Tapered roller bearing $36.41 2 usually ships 8-13 days
11 202-2962 Pivot plate $139.59 1 usually ships 8-13 days
12 202-5068 Bearing seal $5.50 1 usually ships 8-13 days
13 202-5069 Drive guard $16.06 2 usually ships 1-5 days
14 202-0280 10 toothed sprocket $39.05 1 usually ships 8-13 days
15 202-0283 Master link $5.50 1 usually ships 8-13 days
16 202-5549 Bearing housing assembly $225.50 1 usually ships 8-13 days
17 202-9637 Bearing block assembly $237.60 1 usually ships 8-13 days
18 202-9699 Brake cover $30.47 1 usually ships 8-13 days
19 202-9638 Steering spindle $132.00 1 usually ships 8-13 days
20 202-1040 Washer $7.04 2 usually ships 8-13 days
21 999-9136 Screw 1/4-20 x 2 3/4 pan head phillips stainless steel $2.00 4 usually ships 1-5 days
22 999-1909 Screw 5/16-18 x 3 1/2 button socket cap SS $6.82 2 usually ships 1-5 days
23 999-0857 Screw 3/8-24 x 1 3/4 hex head stainless steel $1.51 2 ships same day
24 999-9091 Screw M10-1.5 x 30mm hex head stainless steel $4.14 4 ships same day
25 999-1635 Screw 10-32 x 1/4 socket set $0.99 2 ships same day
26 999-1908 Screw M6-1 x 10mm hex head stainless steel $0.99 2 ships same day
27 202-2216 Shaft collar with set screw $5.50 1 usually ships 8-13 days
28 202-0281 Snap ring $5.50 1 usually ships 8-13 days
29 999-0334 Bolt 1/4-20 x 3/4 inch hex head stainless steel $3.85 1 usually ships 16-20 days
30 999-0556 Bolt 5/16-18 x 3/4 hex head stainless steel $0.99 2 ships same day
31 202-9351 Screw,Hex Cap,3/8-24x1-1/4 inch Stainless $5.50 5 usually ships 8-13 days
32 999-0609 Nut 1/4-20 hex stainless steel $0.99 1 ships same day
33 999-0169 Nut 3/8-24 hex jam plain finish $0.99 5 ships same day
34 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel $1.18 6 ships same day
35 999-0423 Nut 5/16-18 nylon insert lock stainless steel $0.99 4 ships same day
36 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel $0.99 6 ships same day
37 999-0632 Washer 1/4 split lock stainless steel $0.99 1 ships same day
38 999-0553 Washer 5/16 medium split lock stainless steel $0.99 2 ships same day
39 999-0963 Bolt 1/4-20 x 3/4 carriage head stainless steel $1.23 2 ships same day
40 999-0346 Screw 5/16-18 x 1/4 set cup point socket alloy plain finish $0.99 1 ships same day
41 202-0278 Square keyway $5.50 1 usually ships 8-13 days
42 999-9071 Nut 3/8-16 nylon insert jam lock stainless steel $1.52 2 ships same day
43 202-2967 S hook $5.50 1 usually ships 8-13 days
44 202-9556 Cap, Vinyl, 1/2 inch $5.50 2 usually ships 8-13 days
45 202-3613 Tubing (clear) $5.50 1 usually ships 8-13 days
46 202-7576 Front Wheel Drive,12 inch,24V W/Plate & Hardware $3,539.58 1 usually ships 8-13 days
47 202-7577 Motor,24v,2hp,4500rpm w/seal parts $774.18 1 usually ships 8-13 days
48a 202-0776 Drive wheel (gray) (wheel only) $2,144.45 1 usually ships 1-5 days
48b 202-3525 Tire and wheel (black) $1,211.98 1 usually ships 8-13 days
