| # | Part | Description | Price | Req | Notes | Availability |
|---|
0 |

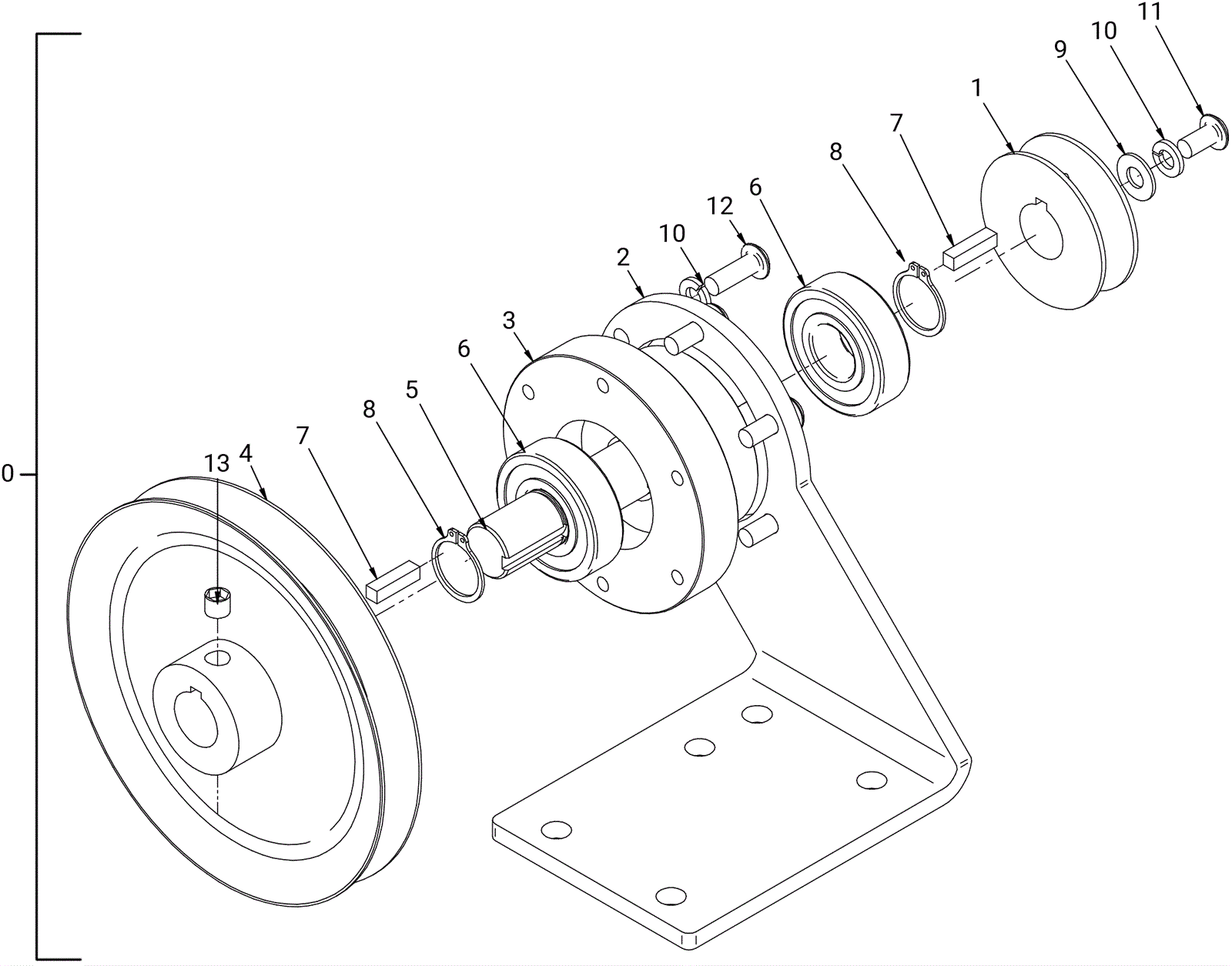

202-4209
|
Jackshaft assembly |
$203.72
|
1 |
(includes 1-13) |
usually ships 8-12 days |
1 |
202-5281
|
Pulley with two set screws |
$39.93
|
1 |
|
usually ships 8-12 days |
2 |
202-5282
|
Jackshaft plate |
$50.27
|
1 |
|
usually ships 1-5 days |
3 |
202-4440
|
Jackshaft collar |
Call for price
|
1 |
|
usually ships 1-5 days |
4 |
202-2784
|
Trans input pulley |
$59.51
|
1 |
|
usually ships 8-12 days |
5 |
202-3016
|
Main broom jackshaft assembly |
$386.65
|
1 |
|
usually ships 8-12 days |
6 |
202-0160
|
Bearing |
$41.80
|
2 |
|
usually ships 8-12 days |
7 |
202-3153
|
Square keyway |
$5.50
|
2 |
|
usually ships 8-12 days |
8 |
202-2048
|
3/4 inch snap ring |
$5.50
|
2 |
|
usually ships 8-12 days |
9 |
999-0335
|
Washer 1/4 x 5/8 SAE flat stainless steel |
$0.99
|
1 |
|
ships same day |
10 |
999-0632
|
Washer 1/4 split lock stainless steel |
$0.99
|
7 |
|
ships same day |
11 |
202-3109
|
Screw 1/4 x 5/8 button head socket stainless steel |
$5.50
|
1 |
|
usually ships 8-12 days |
12 |
999-0867
|
Bolt 1/4-20 x 3/4 button head socket cap stainless steel |
$0.99
|
6 |
|
ships same day |
13 |
999-0346
|
Screw 5/16-18 x 1/4 set cup point socket alloy plain finish |
$0.99
|
1 |
|
ships same day |
