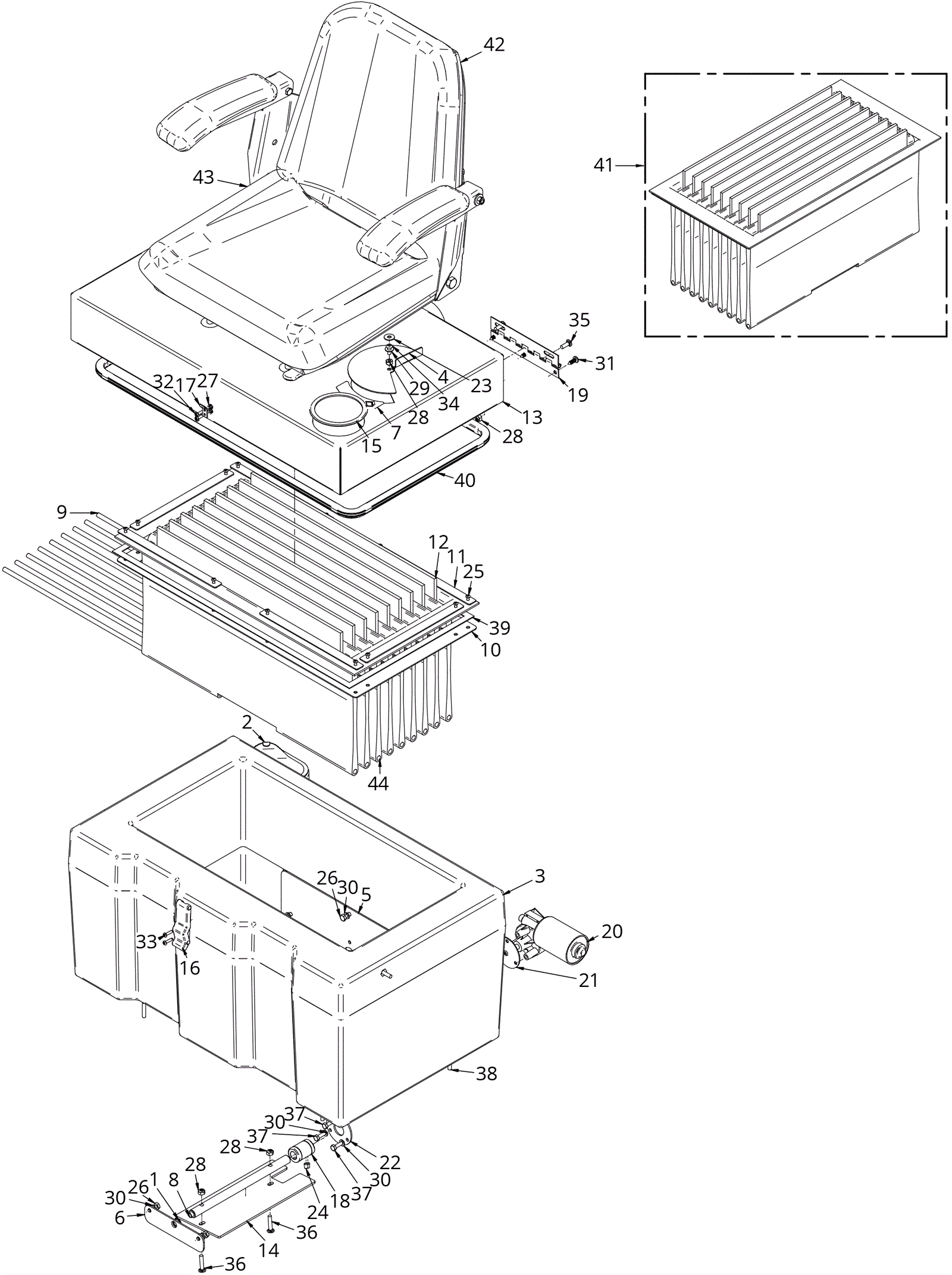

| # | Part | Description | Price | Req | Notes | Availability |
|---|
1 |
202-1239
|
Flanged bearing |
$5.00
|
1 |
|
ships same day |
2 |
202-5259
|
Filter chamber |
$553.80
|
1 |
|
usually ships 1-5 days |
3 |
202-5260
|
Filter chamber vent lid |
$31.50
|
1 |
|
usually ships 1-5 days |
4 |
202-5261
|
Filter shaker shaft |
$52.80
|
1 |
|
usually ships 1-5 days |
5 |
202-5262
|
Filter hood |
$336.70
|
1 |
|
usually ships 1-5 days |
6 |
202-5263
|
Filter beater bar plate |
$26.50
|
1 |
|
usually ships 1-5 days |
7 |
202-1487
|
Latch |
$22.90
|
1 |
|
usually ships 3-11 days |
8 |
202-1487
|
Latch |
$22.90
|
1 |
|
usually ships 3-11 days |
9 |
202-2142
|
Drive coupling |
$41.10
|
1 |
|
usually ships 3-11 days |
10 |
202-2619
|
Filter weight rod |
$101.10
|
9 |
|
ships same day |
11 |
202-2703
|
Filter seperator (pkg of 9) |
$75.60
|
9 |
|
usually ships 3-11 days |
12 |
202-0704
|
Hinge |
$10.60
|
2 |
|
usually ships 1-5 days |
13 |
202-0997
|
Side broom motor |
$344.00
|
1 |
|
usually ships 1-5 days |
14 |
202-5264
|
Filter cleaner motor gasket |
$5.80
|
1 |
|
usually ships 1-5 days |
15 |
202-2616
|
Gasket backing plate |
$15.30
|
1 |
|
usually ships 1-5 days |
16 |
202-5265
|
Filter support grill |
$171.20
|
1 |
|
usually ships 1-5 days |
17 |
202-5266
|
Washer 17/32 x 3/4 teflon |
$6.10
|
1 |
|
usually ships 1-5 days |
18 |
999-1836
|
Screw 1/4-20 x 3/8 knurled point socket set |
$1.43
|
2 |
|
ships same day |
19 |
999-0633
|
Bolt 1/4-20 x 5/8 hex head stainless steel |
$0.99
|
6 |
|
ships same day |
20 |
999-0357
|
Nut 8-32 nylon insert lock stainless steel |
$0.99
|
4 |
|
ships same day |
21 |
999-0294
|
Nut 1/4-20 hex nylon lock type NE stainless steel |
$1.18
|
13 |
|
ships same day |
22 |
999-0423
|
Nut 5/16-18 nylon insert lock stainless steel |
$0.99
|
4 |
|
ships same day |
23 |
999-0335
|
Washer 1/4 x 5/8 SAE flat stainless steel |
$0.99
|
1 |
|
ships same day |
24 |
999-0632
|
Washer 1/4 split lock stainless steel |
$0.99
|
3 |
|
ships same day |
25 |
999-0916
|
Screw 8-32 x 1/2 pan head phillips stainless steel |
$0.99
|
4 |
|
ships same day |
26 |
999-1480
|
Screw 1/4-20 x 5/8 button head socket cap stainless steel |
$0.99
|
1 |
|
ships same day |
27 |
202-2851
|
Bolt 1/4-20 x 5/8 inch carriage head stainless steel |
$5.00
|
4 |
|
usually ships 3-11 days |
28 |
999-1443
|
Bolt 1/4-20 x 1 1/4 carriage stainless steel |
$1.03
|
2 |
|
ships same day |
29 |
999-1312
|
Screw M6-1 x 20mm hex head stainless steel |
$0.99
|
3 |
|
ships same day |
30 |
N/A
|
Not available |
Call for price
|
1 |
(Double sided tape) |
usually ships 3-26 days |
