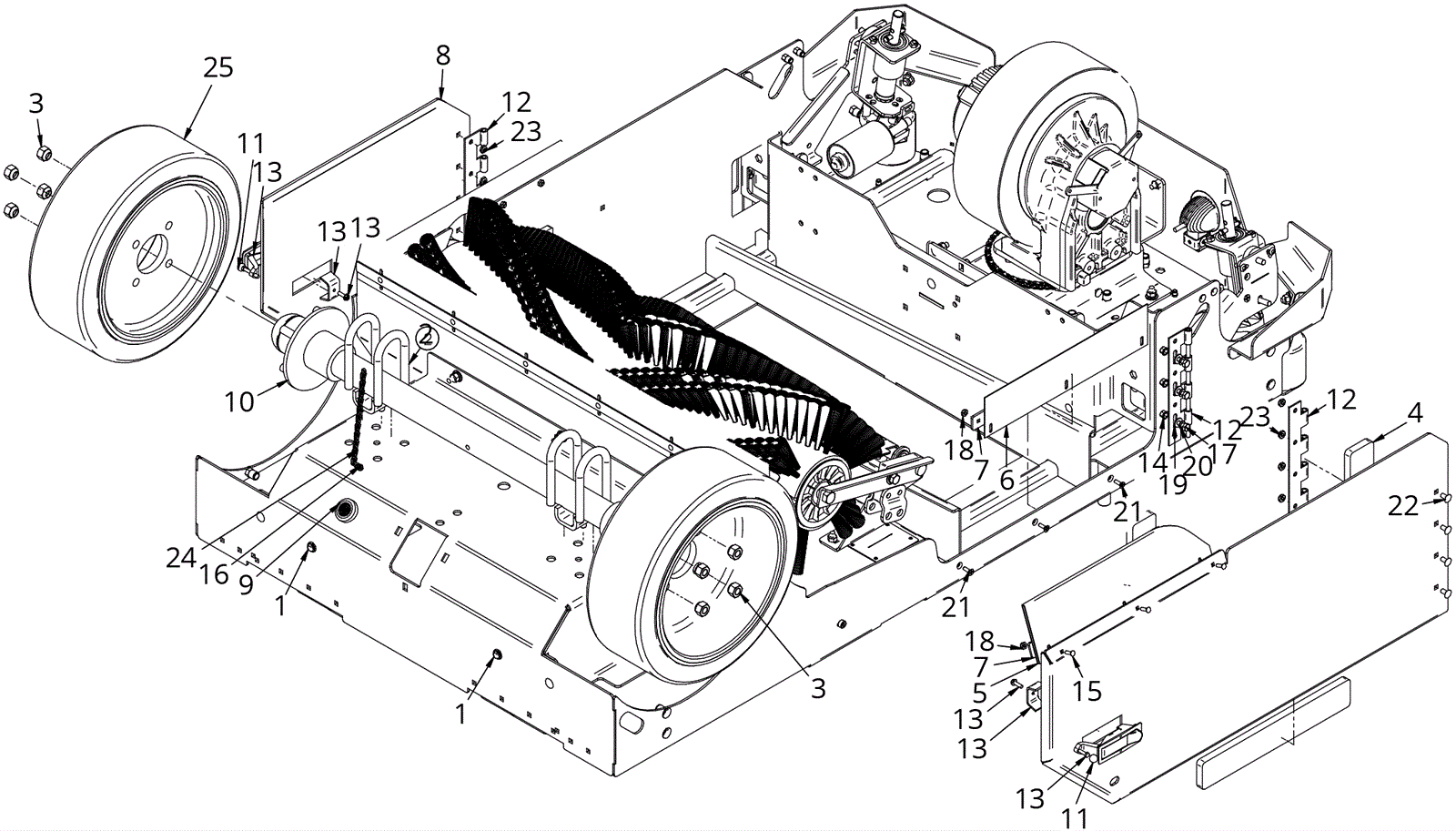

TR Rear Axle Assembly

#PartDescriptionPriceReqNotesAvailability
1 202-0832 Full recovery indicator (red) $28.16 2 usually ships 8-12 days
2 202-1154 U bolt 1/2-13 x 1 1/4 $5.50 4 usually ships 1-5 days
3 202-1153 Nut 1/2-20 lug $5.50 8 usually ships 1-5 days
4 202-4381 Door gasket $5.50 1 usually ships 1-5 days
5 202-5244 Left side door curtain $15.40 1 usually ships 8-12 days
6 202-5245 Hopper side curtain $18.84 1 usually ships 8-12 days
7 202-5246 Left side curtain band $21.01 2 usually ships 1-5 days
8a 202-5243 Right side door $187.88 1 (old style) usually ships 1-5 days
8b 202-4382 Right hand side door $130.72 1 (new style) usually ships 1-5 days
9 202-5156 Alarm $27.61 1 usually ships 8-12 days
10 202-3220 Rear axle $515.46 1 usually ships 1-5 days
11 202-3170 Grommet $8.58 2 usually ships 8-12 days
12 202-0403 Hinge $24.42 2 usually ships 8-12 days
13 202-0404 Latch $49.06 2 usually ships 8-12 days
14 202-5284 Nut 1/4-20 hex crimp long $5.50 7 usually ships 1-5 days
15 999-1508 Bolt 10-32 x 5/8 round carriage head stainless steel $0.99 3 usually ships 1-5 days
16 202-1985 Screw 10 x 1/2 hex washer head $4.40 1 usually ships 1-5 days
17 999-0334 Bolt 1/4-20 x 3/4 inch hex head stainless steel $3.85 3 ships same day
18 999-0086 Nut 10-32 nylon insert lock zinc plated $0.99 5 ships same day
19 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel $0.99 3 ships same day
20 999-0632 Washer 1/4 split lock stainless steel $0.99 3 ships same day
21 202-1205 Screw 10-32 x 5/8 flat head phillips machine stainless steel $5.50 3 usually ships 1-5 days
22 999-1442 Bolt 1/4-20 x 1/2 carriage stainless steel $0.99 4 usually ships 1-5 days
23 999-0304 Nut 1/4-20 nylon lock jam stainless steel $0.99 6 ships same day
24 202-3598 10 inch flat chain brass $4.40 1 usually ships 8-12 days
25a 202-7733 Wheel,Rear,Gray,14 inch $1,207.80 1 usually ships 8-12 days
25b 202-5241 14 inch rear wheel (black) $1,153.79 1 usually ships 1-5 days
