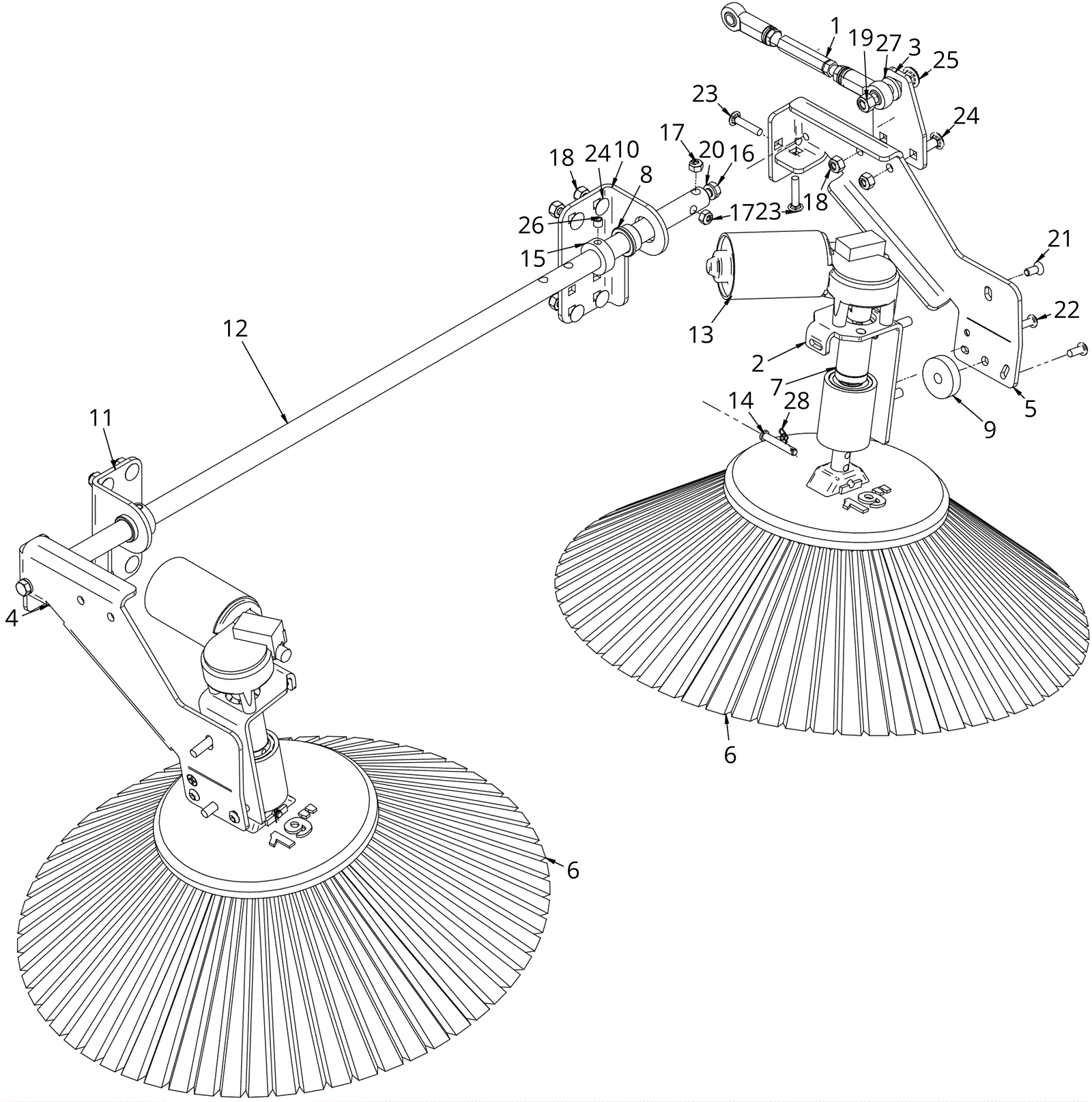

| # | Part | Description | Price | Req | Notes | Availability |
|---|
1 |
202-5276
|
Adjustable lateral arm |
$74.14
|
1 |
|
usually ships 8-12 days |
2 |
202-5215
|
Motor mount assembly |
$299.09
|
2 |
|
usually ships 8-12 days |
3 |
202-4359
|
Side broom lift bracket |
$15.65
|
1 |
|
usually ships 1-5 days |
4a |
202-5217
|
Right side side broom lift arm |
$35.86
|
1 |
(old style) |
usually ships 8-12 days |
4b |
202-4360
|
Right hand side broom lift arm |
$80.47
|
1 |
(new style) |
usually ships 1-5 days |
5a |
202-5216
|
Left side side broom lift arm |
$35.86
|
1 |
(old style) |
usually ships 8-12 days |
5b |
202-4361
|
Left hand side broom lift arm |
$80.47
|
1 |
(new style) |
usually ships 1-5 days |
6 |
202-3070
|
Polypropelene side broom |
$145.09
|
2 |
|
usually ships 8-12 days |
7 |
202-5303
|
Coupling |
$44.99
|
2 |
|
usually ships 8-12 days |
8 |
202-1397
|
Flanged bushing |
$6.38
|
2 |
|
usually ships 8-12 days |
9 |
202-0151
|
Grommet |
$4.40
|
1 |
|
usually ships 8-12 days |
10 |
202-3703
|
Left hand side broom axle bracket |
$46.53
|
1 |
|
usually ships 8-12 days |
11 |
202-3704
|
Right hand side broom axle bracket |
$46.53
|
1 |
|
usually ships 8-12 days |
12 |
202-3709
|
Side broom shaft |
$1,729.35
|
1 |
|
usually ships 8-12 days |
13 |
202-2144
|
Side broom motor |
$494.23
|
2 |
|
usually ships 8-12 days |
14 |
202-0805
|
Clevis pin |
$5.50
|
2 |
|
ships same day |
15 |
202-2216
|
Shaft collar with set screw |
$5.50
|
2 |
|
usually ships 8-12 days |
16 |
999-0556
|
Bolt 5/16-18 x 3/4 hex head stainless steel |
$0.99
|
2 |
|
ships same day |
17 |
999-0294
|
Nut 1/4-20 hex nylon lock type NE stainless steel |
$1.18
|
2 |
|
ships same day |
18 |
999-0423
|
Nut 5/16-18 nylon insert lock stainless steel |
$0.99
|
7 |
|
ships same day |
19 |
999-1482
|
Nut 3/8-16 nylon lock stainless steel |
$1.06
|
1 |
|
ships same day |
20 |
999-0553
|
Washer 5/16 medium split lock stainless steel |
$0.99
|
2 |
|
ships same day |
21 |
999-0990
|
Screw 1/4-20 x 5/8 flat head phillips stainless steel |
$0.99
|
2 |
|
ships same day |
22 |
999-1480
|
Screw 1/4-20 x 5/8 button head socket cap stainless steel |
$0.99
|
4 |
|
ships same day |
23 |
999-1443
|
Bolt 1/4-20 x 1 1/4 carriage stainless steel |
$1.03
|
2 |
|
ships same day |
24 |
999-0967
|
Bolt 5/16-18 x 3/4 carriage head stainless steel |
$2.16
|
9 |
|
ships same day |
25 |
999-1348
|
Bolt 3/8-16 x 1 1/2 carriage head stainless steel |
$3.30
|
1 |
|
ships same day |
26 |
999-0346
|
Screw 5/16-18 x 1/4 set cup point socket alloy plain finish |
$0.99
|
2 |
|
ships same day |
27 |
999-0120
|
Washer 3/8 SAE flat |
$0.99
|
1 |
|
ships same day |
28 |
202-0585
|
Cotter ring |
$5.50
|
2 |
|
usually ships 8-12 days |
