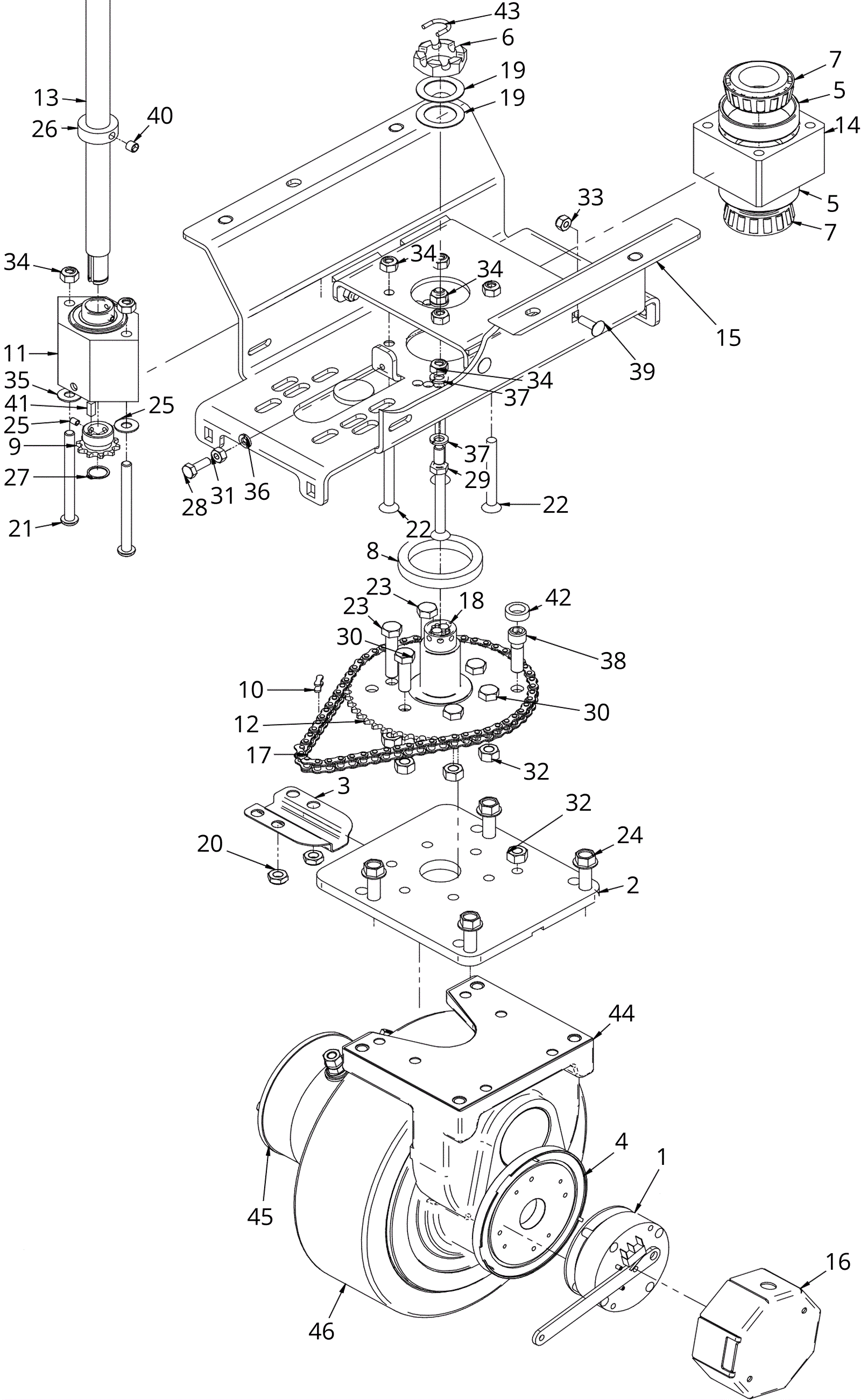

TR Front Drive Wheel Assembly - 10 inch standard

#PartDescriptionPriceReqNotesAvailability
1 202-1892 Lower steering shaft $47.20 1 usually ships 1-5 days
2 202-1894 60 toothed sprocket $72.10 1 usually ships 1-5 days
3 202-1896 Pivot plate $114.50 1 usually ships 1-5 days
4 202-1897 Steering chain $34.30 1 usually ships 3-11 days
5 202-2960 Wire guide $21.60 1 usually ships 3-11 days
6 202-2308 Steering shaft spindle $528.20 1 usually ships 1-5 days
7 202-5038 Spacer $6.10 1 usually ships 1-5 days
8 202-0766 Tapered bearing $22.20 2 usually ships 3-11 days
9 202-0767 Bearing cap $22.60 2 usually ships 3-11 days
10 202-0768 Seal $29.10 2 usually ships 3-11 days
11 202-0769 Sleeved bearing $5.00 1 usually ships 3-11 days
12 202-1166 Slotted castle nut $8.50 1 usually ships 3-11 days
13 202-0280 10 toothed sprocket $28.30 1 usually ships 3-11 days
14 202-0283 Master link $5.00 1 usually ships 3-11 days
15 202-0771 Bearing block $186.80 1 usually ships 3-11 days
16 202-0160 Bearing $38.00 2 usually ships 3-11 days
17 999-1151 Nut 3/8-24 nylon insert jam lock stainless steel $2.02 2 ships same day
18 202-2963 Bolt hex head stainless steel $9.40 2 usually ships 1-5 days
19 202-3154 Screw 1/4-20 x 1/4 set $5.00 2 ships same day
20 202-2216 Shaft collar with set screw $5.00 1 usually ships 3-11 days
21 202-0281 Snap ring $5.00 1 usually ships 3-11 days
22 999-0334 Bolt 1/4-20 x 3/4 inch hex head stainless steel $3.85 1 ships same day
23 999-0493 Bolt 3/8-16 x 3/4 hex head stainless steel $0.99 2 ships same day
24 999-0562 Bolt 3/8-16 x 1 hex head stainless steel $1.50 4 ships same day
25 999-0609 Nut 1/4-20 hex stainless steel $0.99 1 ships same day
26 999-0635 Nut 3/8-16 hex stainless steel $0.99 2 ships same day
27 999-0169 Nut 3/8-24 hex jam plain finish $0.99 1 ships same day
28 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel $0.99 4 ships same day
29 999-0617 Washer 3/8 x 1 flat stainless steel $1.82 6 ships same day
30 999-0632 Washer 1/4 split lock stainless steel $0.99 5 ships same day
31 999-0659 Washer 3/8 medium split lock stainless steel $0.39 6 ships same day
32 999-1567 Screw 3/8-24 x 2 hex head stainless steel $5.52 5 ships same day
33 999-0867 Bolt 1/4-20 x 3/4 button head socket cap stainless steel $0.99 4 ships same day
34 999-0346 Screw 5/16-18 x 1/4 set cup point socket alloy plain finish $0.99 1 ships same day
35 202-0278 Square keyway $5.00 1 usually ships 3-11 days
36 202-2967 S hook $5.00 1 usually ships 3-11 days
37 202-5214 Hose (black) (OBSOLETE) Call for price 1 usually ships 1-5 days
