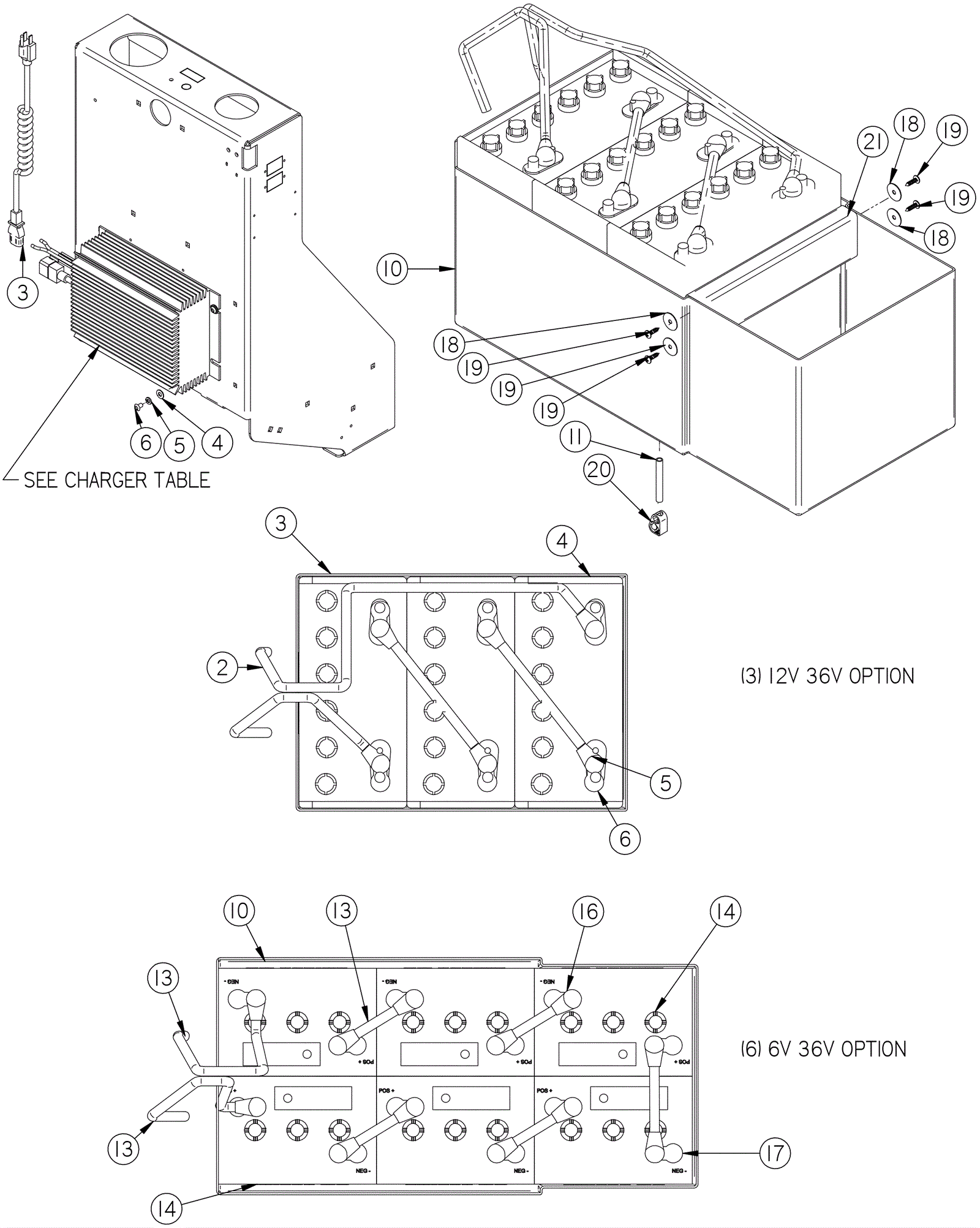

200 Battery and Charger Connection Assembly

#PartDescriptionPriceReqNotesAvailability
2 202-5177 12V battery cable kit $71.72 1 usually ships 3-11 days
3 202-5188 Battery tray $168.52 1 usually ships 1-5 days
4 162-0002 12V 185Ah wet battery (SNSR) $646.73 3 ships same day
5 202-2850 Battery boot $13.20 6 usually ships 1-5 days
6 202-2849 Terminal cover $13.20 6 usually ships 1-5 days
10 202-2848 Battery box $151.36 1 usually ships 3-11 days
11 202-5176 3 1/4 inch hose (black) Call for price 1 usually ships 1-5 days
13 202-5178 6V battery cable kit $27.84 1 usually ships 1-5 days
14 162-0003 6V 225Ah wet battery (SNSR) $269.50 6 ships same day
16 202-2850 Battery boot $13.20 18 usually ships 1-5 days
17 202-2849 Terminal cover $13.20 18 usually ships 1-5 days
18 999-0975 Washer 1/4 x 1 1/4 fender stainless steel $0.99 4 ships same day
19 999-1290 Screw #14 x 1 truss head phillips stainless steel $0.99 4 ships same day
20 202-3475 Clamp style pinch valve $5.50 1 usually ships 3-11 days
21 202-9618 Battery spacer Call for price 1 usually ships 3-11 days
