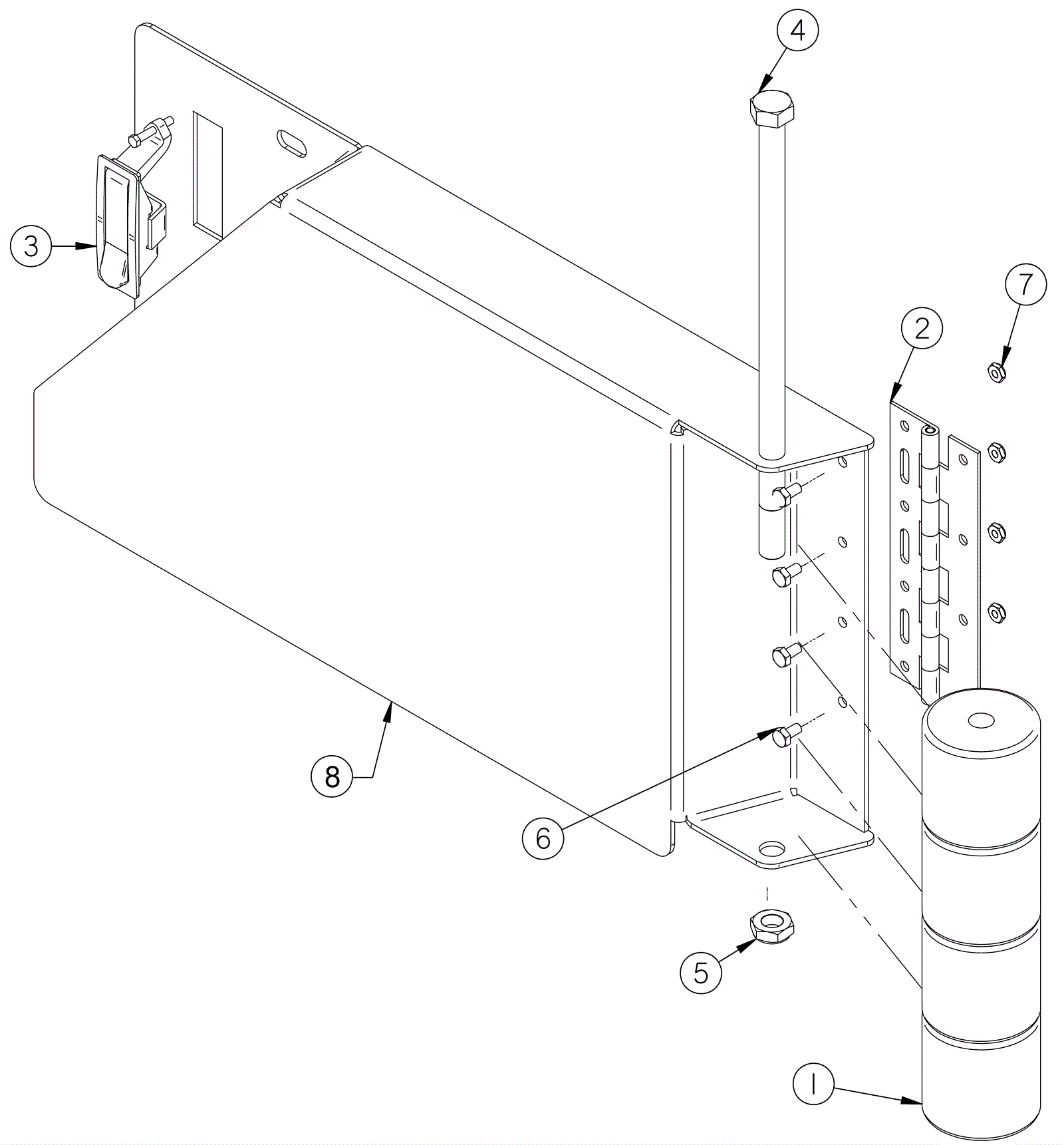

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
202-0756
|
Guide roller |
4 |
|
usually ships 11-19 days |
2 |
202-0403
|
Hinge |
1 |
|
usually ships 11-19 days |
3 |
202-0404
|
Latch |
1 |
|
usually ships 11-19 days |
4 |
999-0989
|
Bolt 5/8-11 x 13 hex head grade 5 zinc plated |
1 |
|
usually ships 11-14 days |
5 |
999-0968
|
Nut 5/8-11 nylon insert jam lock zinc plated |
1 |
|
usually ships 11-14 days |
6 |
999-0644
|
Bolt 1/4-20 x 1/2 hex head stainless steel |
4 |
|
usually ships 11-14 days |
7 |
999-0304
|
Nut 1/4-20 nylon lock jam stainless steel |
4 |
|
usually ships 11-14 days |
8a |
202-5158
|
27 inch right side cylindrical door |
1 |
|
usually ships 1-5 days |
8b |
202-5159
|
27 inch left side cylindrical door |
1 |
|
usually ships 1-5 days |
8c |
202-5160
|
30 inch right side cylindrical door |
1 |
|
usually ships 1-5 days |
8d |
202-5161
|
30 inch left side cylindrical door |
1 |
|
usually ships 1-5 days |
8e |
202-5162
|
34 inch right side cylindrical door |
1 |
|
usually ships 1-5 days |
8f |
202-5163
|
34 inch left side cylindrical door |
1 |
|
usually ships 1-5 days |
