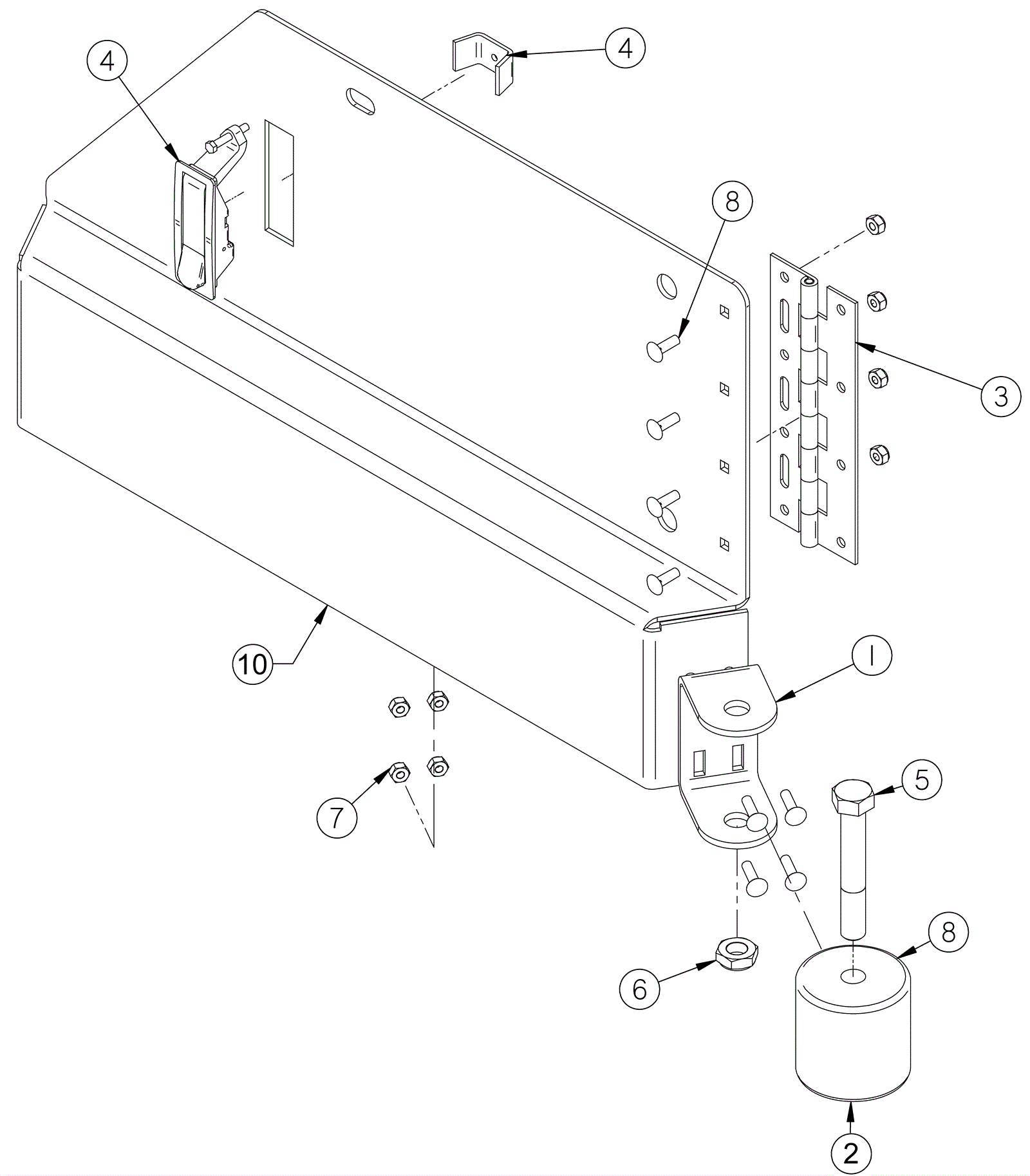

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
202-0976
|
20 inch roller bracket |
1 |
|
|
2 |
202-0756
|
Guide roller |
1 |
|
|
3 |
202-0403
|
Hinge |
1 |
|
|
4 |
202-0404
|
Latch |
1 |
|
|
5 |
999-1209
|
Bolt 5/8-11 x 4 hex head zinc plated |
1 |
|
|
6 |
999-0968
|
Nut 5/8-11 nylon insert jam lock zinc plated |
1 |
|
|
7 |
999-0294
|
Nut 1/4-20 hex nylon lock type NE stainless steel |
8 |
|
|
8 |
999-0963
|
Bolt 1/4-20 x 3/4 carriage head stainless steel |
4 |
|
|
9 |
999-1401
|
Bolt 1/4-20 x 1 carriage head stainless steel |
4 |
|
|
10a |
202-2004
|
Left door |
1 |
(30 inch) |
|
10b |
202-2005
|
Right door |
1 |
(30 inch) |
|
10c |
202-2007
|
Left door |
1 |
(34 inch) |
|
10d |
202-2006
|
Right door |
1 |
(34 inch) |
|
