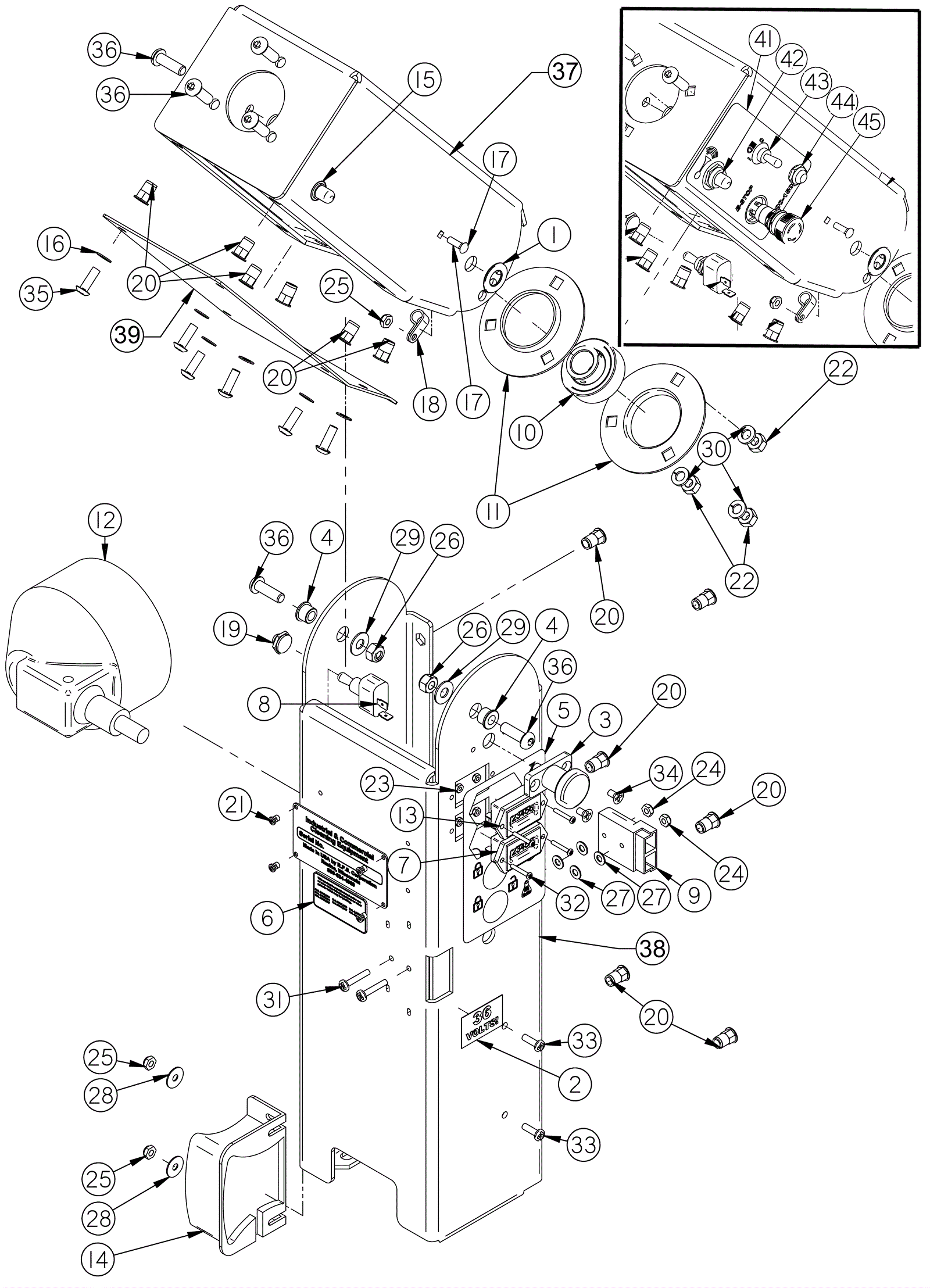

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
202-1181
|
Washer 1/2 flat bronze |
2 |
|
|
2 |
202-5154
|
Decal |
1 |
|
|
3 |
202-0719
|
Index plunger |
1 |
|
|
4 |
202-3312
|
Flanged bearing |
2 |
|
|
5 |
202-3313
|
Hour meter decal |
1 |
|
|
6 |
202-3314
|
Patent plate |
1 |
|
|
7 |
202-5155
|
Hour meter |
1 |
|
|
8 |
202-0097
|
Toggle switch |
1 |
|
|
9 |
202-2009
|
50amp connector (gray) |
1 |
|
|
10 |
202-0142
|
Upper steering bearing |
1 |
|
|
11 |
202-0143
|
Bearing mount |
2 |
|
|
12a |
202-2010
|
48V headlight |
1 |
|
|
12b |
202-3317
|
36V headlight LED |
1 |
|
|
13 |
202-0376
|
Hour meter |
1 |
|
|
14 |
202-0385
|
Backup alarm |
1 |
|
|
15 |
202-0381
|
Horn button |
1 |
|
|
16 |
202-1196
|
Washer 17/64 x 21/64 nylon flat |
6 |
|
|
17 |
999-1508
|
Bolt 10-32 x 5/8 round carriage head stainless steel |
1 |
|
|
18 |
202-2431
|
P clamp |
1 |
|
|
19 |
202-1355
|
Toggle switch protective boot (black) |
1 |
|
|
20 |
999-0190
|
Nut 1/4-20 hex plain finish |
12 |
|
|
21 |
202-3315
|
Blind rivet |
4 |
|
|
22 |
999-0593
|
Nut 5/16-18 hex stainless steel |
4 |
|
|
23 |
999-0295
|
Nut 4-40 nylon insert lock stainless steel |
4 |
|
|
24 |
999-0357
|
Nut 8-32 nylon insert lock stainless steel |
2 |
|
|
25 |
999-0086
|
Nut 10-32 nylon insert lock zinc plated |
3 |
|
|
26 |
999-0423
|
Nut 5/16-18 nylon insert lock stainless steel |
2 |
|
|
27 |
999-0998
|
Washer #10 flat stainless steel |
4 |
|
|
28 |
202-3316
|
Washer flat stainless steel |
2 |
|
|
29 |
999-0549
|
Washer 5/16 x 3/4 SAE flat stainless steel |
2 |
|
|
30 |
999-0553
|
Washer 5/16 medium split lock stainless steel |
4 |
|
|
31 |
999-1574
|
Screw 8-32 x 1 pan head phillips stainless steel |
2 |
|
|
32 |
202-2371
|
Screw 4-40 x 3/4 round pan head |
4 |
|
|
33a |
202-2122
|
Screw 10-32 x 5/8 inch phillips pan head |
2 |
|
|
33b |
999-1487
|
Screw 10-32 x 5/8 pan head phillips stainless steel |
2 |
|
|
34 |
999-1509
|
Screw 10-32 x 3/8 flat head phillips stainless steel |
2 |
|
|
35 |
999-0867
|
Bolt 1/4-20 x 3/4 button head socket cap stainless steel |
6 |
|
|
36 |
999-1507
|
Screw 5/16-18 x 1 button head socket stainless steel |
6 |
|
|
37a |
202-0715
|
Upper steering column (red) |
1 |
|
|
37b |
202-2012
|
Upper steering column (granite) |
1 |
|
|
38a |
202-0714
|
Lower steering column (red) |
1 |
|
|
38b |
202-2011
|
Lower steering column (granite) |
1 |
|
|
39a |
202-0716
|
Pedestal cover (red) |
1 |
|
|
39b |
202-2013
|
Pedestal cover (granite) |
1 |
|
|
41 |
202-4190
|
Steering tower decal |
1 |
(after SN 55325) |
|
42 |
202-0381
|
Horn button |
1 |
(after SN 55325) |
|
43 |
202-0097
|
Toggle switch |
1 |
(after SN 55325) |
|
44 |
202-1355
|
Toggle switch protective boot (black) |
1 |
(after SN 55325) |
|
45 |
202-4191
|
Emergency stop button |
1 |
(after SN 55325) |
|
