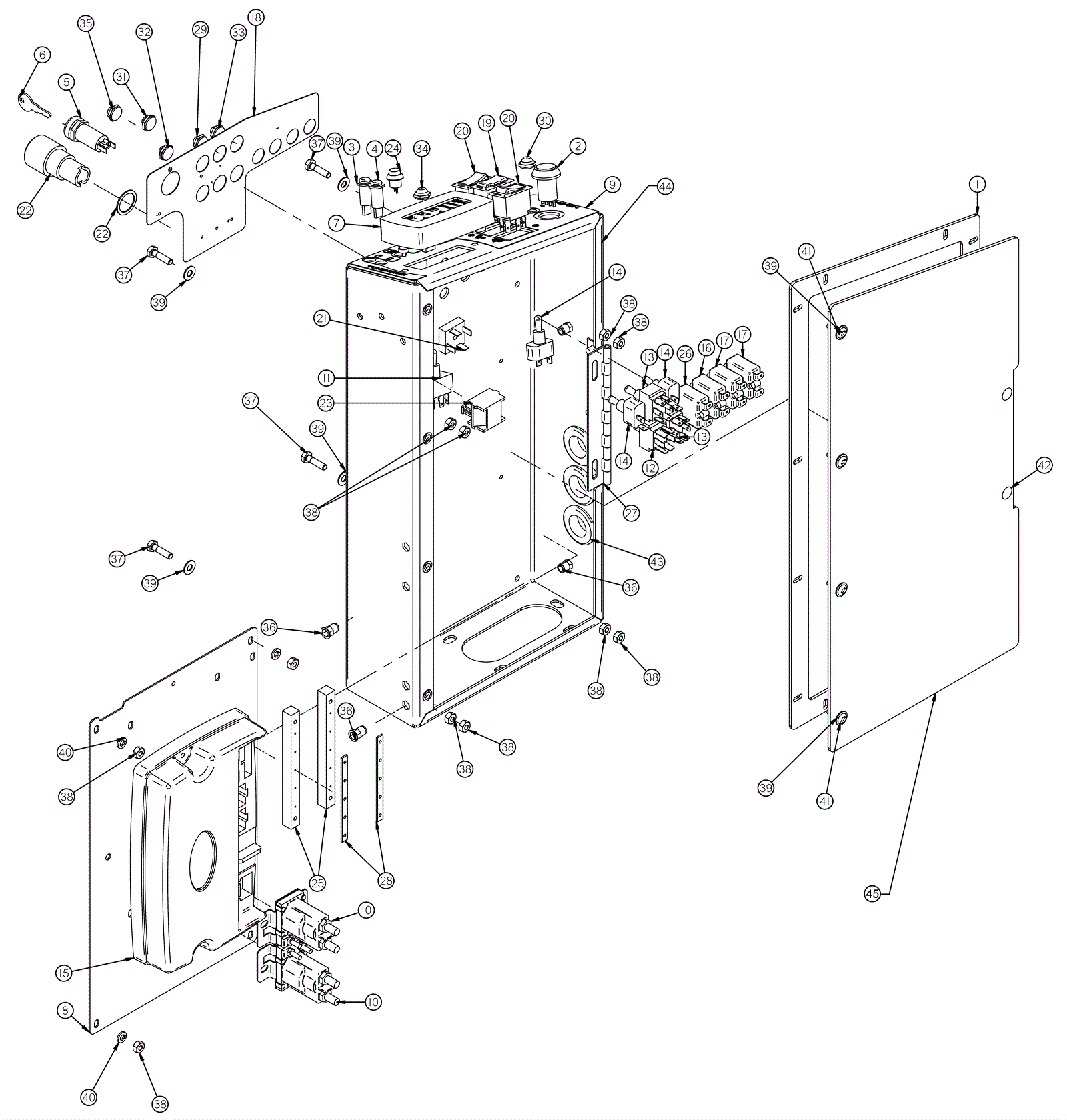

Central Command Assembly

#PartDescription ReqNotesAvailability
1 202-0818 Access cover gasket 1
2 202-1356 One touch button 1
3 202-0831 Low solution indicator (amber) 1
4 202-0832 Full recovery indicator (red) 1
5 202-2300 Key switch with key entry (red) and ring (black) 1
6 991-1634 Key (pkg of 2) 1
7 202-1317 LCD window display 1
8 202-3305 Hardware panel (black) 1
9 202-3306 Control panel top plate decal 1
10 202-3307 36V relay with mounting plate 2
11 202-0521 Toggle switch 1
12 202-3340 Toggle switch 1
13 202-1992 Toggle switch 2
14 202-0097 Toggle switch 3
15 202-1369 Main controller 1
16 202-2500 10amp fuse 1
17 202-2499 15amp fuse 2
18 202-3308 Control panel decal 1
19 202-0368 Switch 1
20 202-0369 2 position rocker switch 2
21 202-0345 Diode bridge 1
22 202-0826 Emergency shut-off switch 1
23 202-0825 Emergency contact 1
24 202-0879 Push button switch 1
25 202-0541 Busbar 2
26 202-0822 2amp fuse 1
27 202-0704 Hinge 1
28 202-0830 Busbar (5 hole) 2
29 202-1976 Toggle switch protective boot (white) 1
30 202-1864 Toggle switch protective boot (red) 1
31 202-1977 Toggle switch protective boot (yellow) 1
32 202-1866 Toggle switch protective boot (green) 1
33 202-1865 Toggle switch protective boot (blue) 1
34 202-1355 Toggle switch protective boot (black) 1
35 202-2221 Toggle switch protective boot (gray) 1
36 999-0190 Nut 1/4-20 hex plain finish 8
37 999-0297 Bolt 1/4-20 x 1 hex head stainless steel 4
38 999-0609 Nut 1/4-20 hex stainless steel 12
39 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel 8
40 999-0632 Washer 1/4 split lock stainless steel 4
41 999-0867 Bolt 1/4-20 x 3/4 button head socket cap stainless steel 4
43 202-2592 Grommet 3
44a 202-3309 Control box (red) 1
44b 202-3310 Control box (granite) 1
45a 202-3311 Access cover (red) 1
45b 202-2574 Access cover (granite) 1
