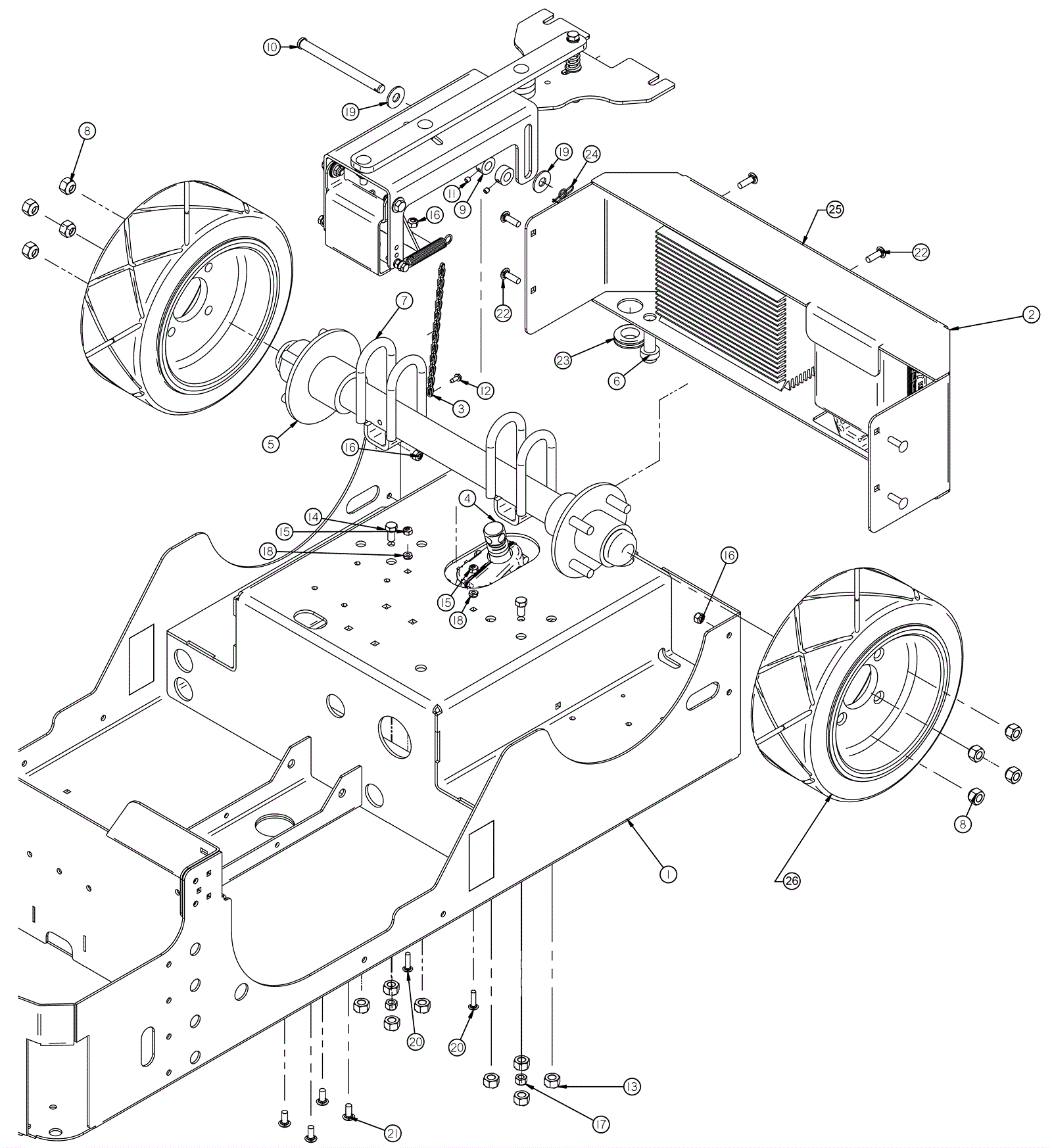

| # | Part | Description |
Req | Notes | Availability |
|---|
2 |
202-5141
|
Rear soap bumper |
1 |
(optional) |
|
4 |
202-1932
|
36V actuator |
1 |
|
|
5 |
202-1909
|
Rear axle |
1 |
|
|
6 |
202-3464
|
Charger status indicator |
1 |
|
|
7 |
202-1154
|
U bolt 1/2-13 x 1 1/4 |
4 |
|
|
10 |
202-5142
|
Clevis pin |
1 |
|
|
12 |
202-1985
|
Screw 10 x 1/2 hex washer head |
1 |
|
|
14 |
999-0493
|
Bolt 3/8-16 x 3/4 hex head stainless steel |
2 |
|
|
15 |
999-0294
|
Nut 1/4-20 hex nylon lock type NE stainless steel |
2 |
|
|
16 |
999-0423
|
Nut 5/16-18 nylon insert lock stainless steel |
6 |
|
|
18 |
999-1466
|
Nut 1/4-20 lock with external toothed lockwasher SS |
2 |
|
|
19 |
999-0559
|
Washer 1/2 x 1/4 flat stainless steel |
2 |
|
|
20 |
999-1401
|
Bolt 1/4-20 x 1 carriage head stainless steel |
2 |
|
|
22 |
999-9066
|
Bolt 5/16-18 x 1 carriage head stainless steel |
8 |
|
|
23 |
202-2592
|
Grommet |
1 |
|
|
