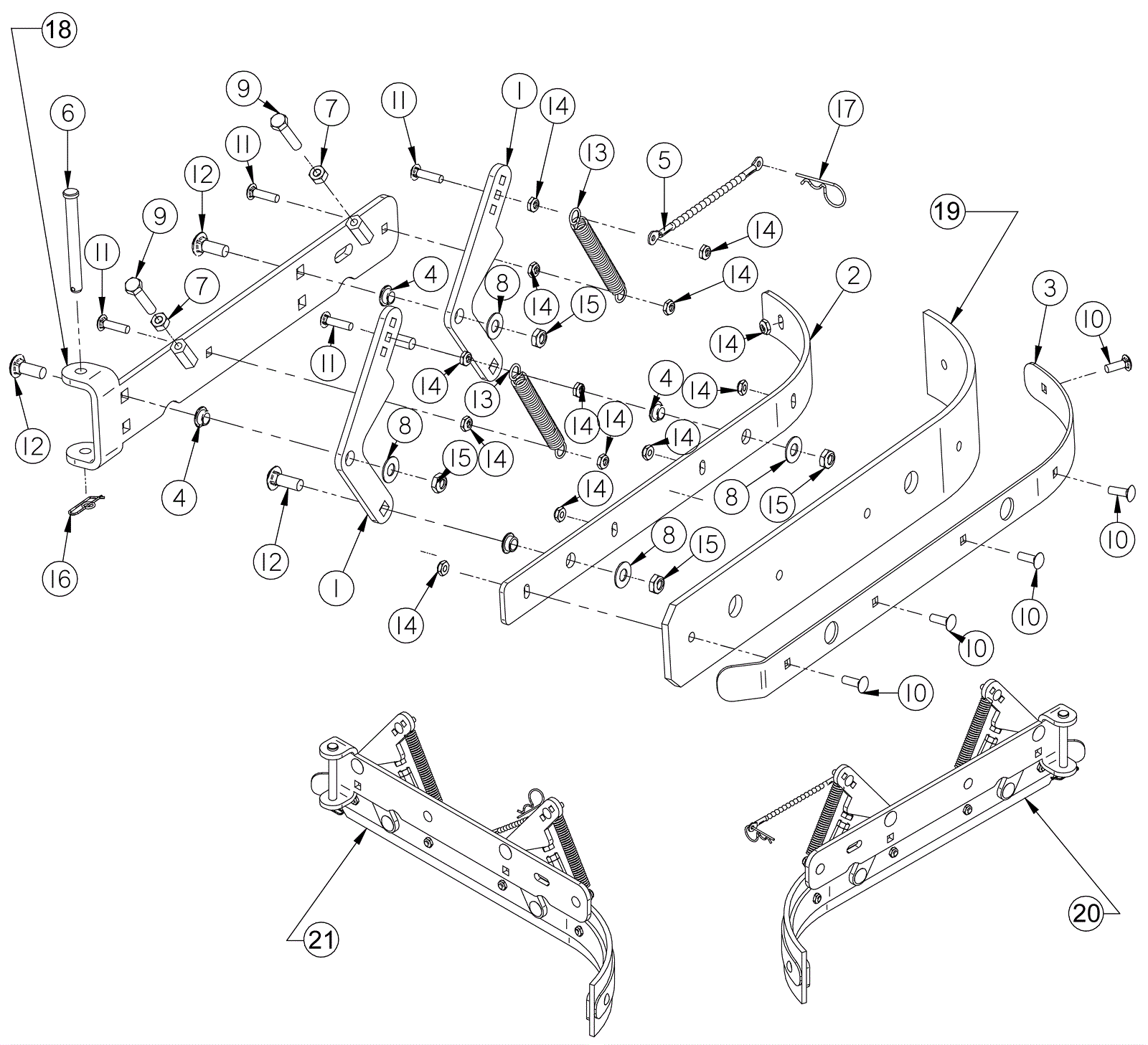

GTX 27 Wipe Assembly - CYLINDRICAL

#PartDescription ReqNotesAvailability
1 202-5121 Vertical arm 2 usually ships 1-5 days
2 202-5122 Side shroud 1 usually ships 11-19 days
3 202-5123 Wiper band 1 usually ships 11-19 days
4 202-1239 Flanged bearing 4 usually ships 11-19 days
5 202-3127 4 inch chain (6 inch no longer available) 1 usually ships 11-19 days
6 999-1633 Clevis pin 3/8 x 3 1/2 1 usually ships 11-14 days
7 999-0593 Nut 5/16-18 hex stainless steel 2 usually ships 11-14 days
8 999-0617 Washer 3/8 x 1 flat stainless steel 4 usually ships 11-14 days
9 999-1634 Bolt 5/16-18 x 1 1/2 hex head stainless steel 2 usually ships 1-5 days
10 999-0963 Bolt 1/4-20 x 3/4 carriage head stainless steel 5 usually ships 11-14 days
11 999-1401 Bolt 1/4-20 x 1 carriage head stainless steel 4 usually ships 11-14 days
12 202-2832 Bolt 3/8 - 16 x 1 carriage head stainless steel 4 usually ships 11-19 days
13 202-2208 Compression spring 2 usually ships 11-19 days
14 999-0304 Nut 1/4-20 nylon lock jam stainless steel 13 usually ships 11-14 days
15 999-9071 Nut 3/8-16 nylon insert jam lock stainless steel 4 usually ships 11-14 days
16 202-2036 Cotter pin 1 usually ships 11-19 days
17 202-3129 Cotter pin 1 usually ships 11-19 days
