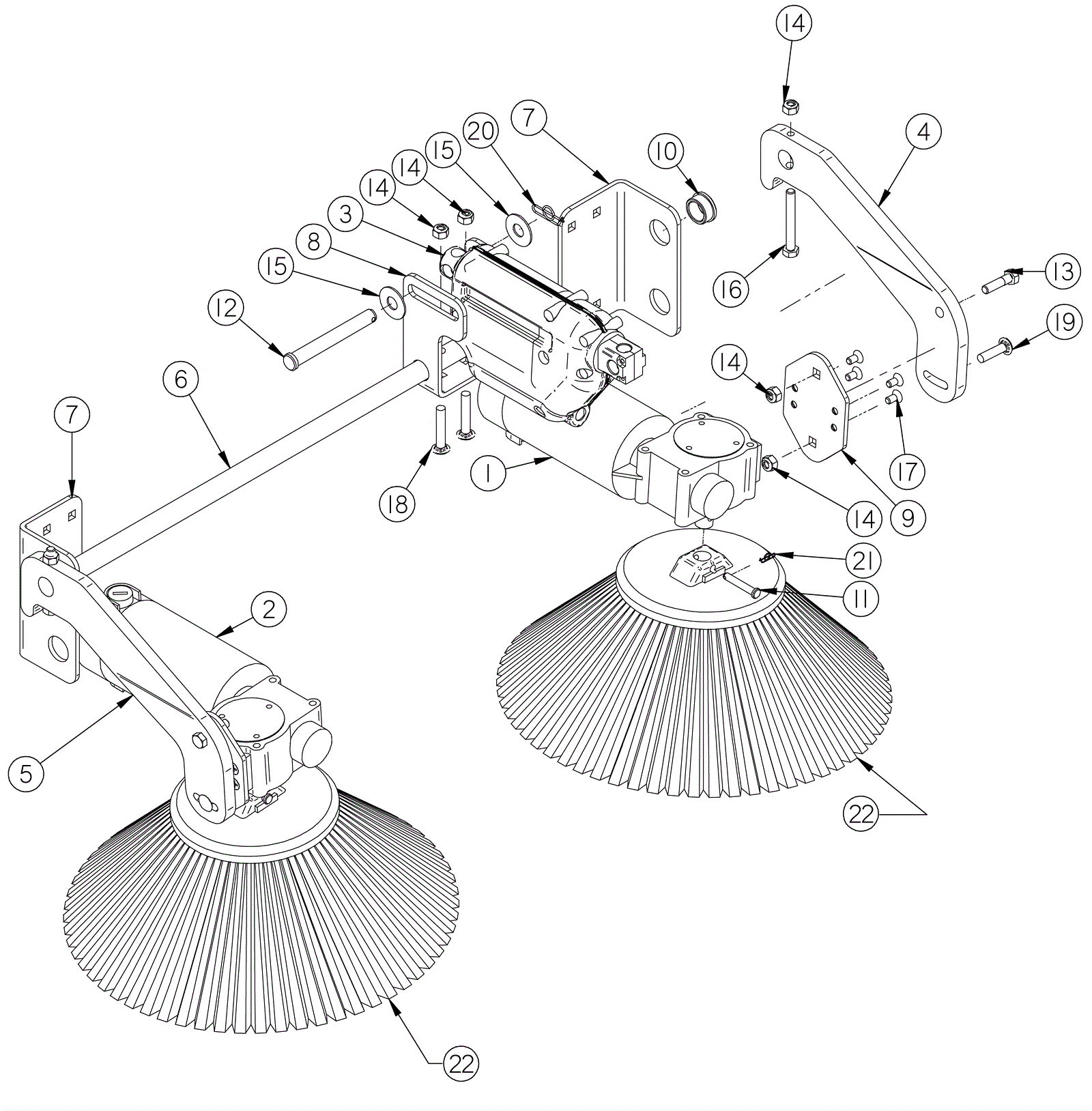

GTX 30 Side Broom Assembly

#PartDescriptionPriceReqNotesAvailability
1a 202-3079 36V motor $612.70 1 (before SN 5000) usually ships 1-5 days
1b 202-3066 36V motor left hand $917.92 1 (after SN 4999) usually ships 3-11 days
2a 202-3078 36V motor right hand $611.88 1 (before SN 5000) usually ships 1-5 days
2b 202-3067 36V motor $679.69 1 (after SN 4999) usually ships 3-11 days
3 202-1932 36V actuator $577.61 1 usually ships 3-11 days
4 202-3068 Left side lifting arm $139.26 1 usually ships 1-5 days
5 202-3069 Right side lifting arm $139.26 1 usually ships 3-11 days
6 202-5076 Broom suspension axle $219.78 1 usually ships 3-11 days
7 202-5077 Side broom axle bracket $33.44 2 usually ships 3-11 days
8 202-3071 Pivot bracket $36.63 1 usually ships 3-11 days
9 202-3073 Mounting plate $31.24 2 usually ships 3-11 days
10 202-1397 Flanged bushing $6.38 2 usually ships 3-11 days
11 202-0805 Clevis pin $5.50 2 ships same day
12 202-3083 Clevis pin $6.71 1 usually ships 3-11 days
13 999-0688 Bolt 5/16-18 x 1 1/4 hex head stainless steel $0.99 2 ships same day
14 999-0423 Nut 5/16-18 nylon insert lock stainless steel $0.99 8 ships same day
15 999-0559 Washer 1/2 x 1/4 flat stainless steel $0.99 2 ships same day
16 202-3075 Bolt hex cap 5/16 x 2 1/2 inches stainless steel $4.40 2 usually ships 3-11 days
17 202-3076 Screw 1/4 x 1/2 flat head phillips stainless steel $5.50 8 usually ships 3-11 days
18 202-3077 Carriage bolt 5/16 x 1-1/2 stainless steel $5.50 2 usually ships 3-11 days
19 999-0919 Bolt 5/16-18 x 1 1/4 carriage head stainless steel $1.39 2 ships same day
20 202-2059 Cotter ring $5.50 1 usually ships 3-11 days
21 202-0585 Cotter ring $5.50 2 usually ships 3-11 days
22 202-1495 Polypropylene side broom $117.92 2 usually ships 3-11 days
