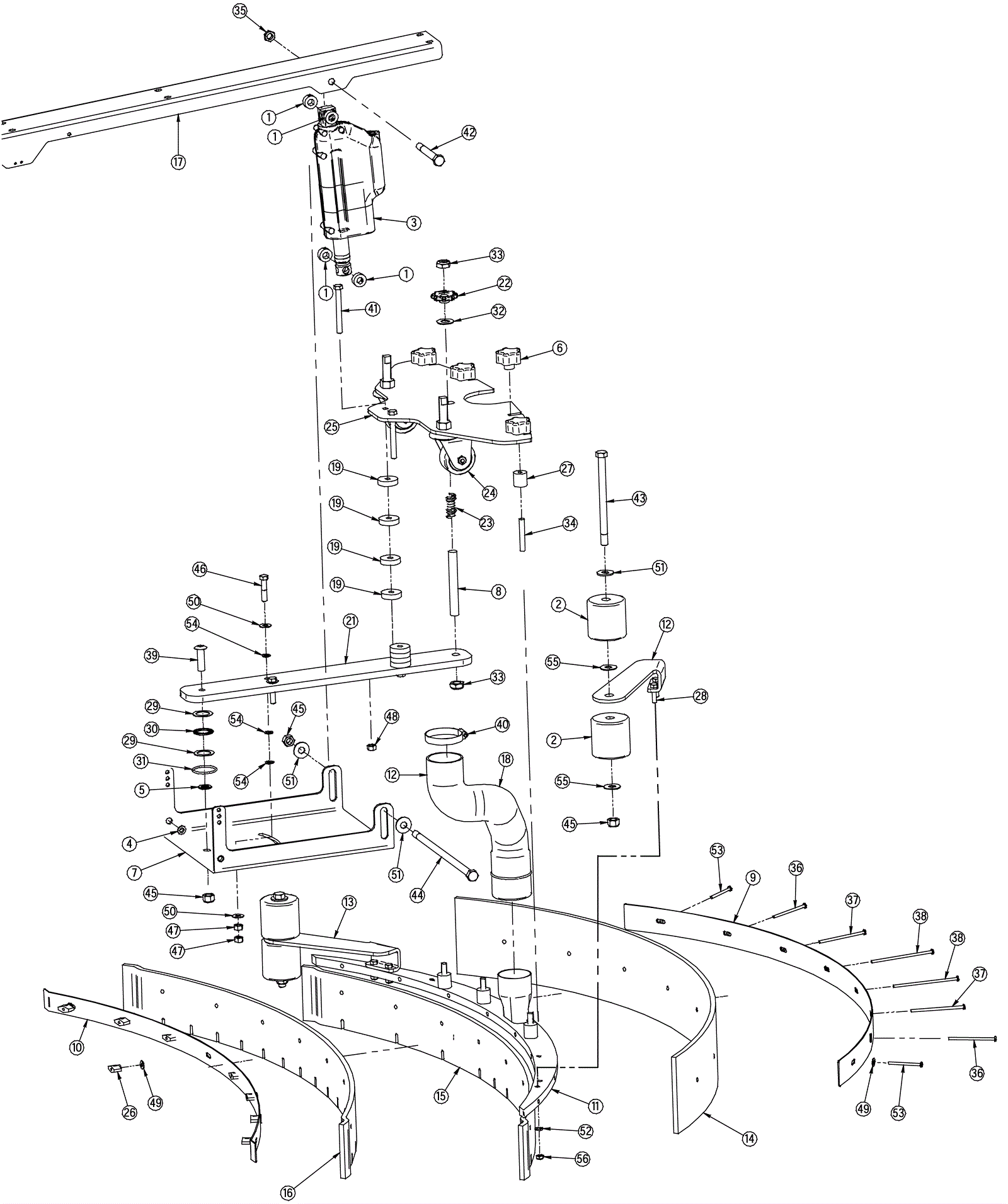

390 Squeegee Assembly - After SN 42473

#PartDescriptionPriceReqNotesAvailability
1 202-4055 Shaft collar with set screw (OBSOLETE) Call for price 4 usually ships 1-5 days
2 202-0756 Guide roller $25.60 4 usually ships 3-10 days
3 202-1950 36V actuator $426.60 1 usually ships 3-10 days
4 202-1239 Flanged bearing $5.00 2 ships same day
5 202-1161 Washer 1/2 flat thick bronze $5.00 1 usually ships 3-10 days
6 202-1999 Star knob $39.90 4 usually ships 3-10 days
7 202-4056 Squeegee swing plate $160.72 1 usually ships 1-5 days
8 202-2433 Stud $26.30 1 usually ships 1-5 days
9 202-2462 Rear squeegee retaining band $310.50 1 usually ships 1-5 days
10 202-2435 Front squeegee retaining band $301.70 1 usually ships 1-5 days
11 202-2436 Squeegee weldment $912.89 1 usually ships 1-5 days
12 202-2437 Left side wheel bracket $100.90 1 usually ships 1-5 days
13 202-2438 Right side wheel bracket $100.90 1 usually ships 1-5 days
14a 202-2439 Squeegee blade 48 inch rear gum rubber $149.50 1 usually ships 1-5 days
14b 202-2867 Squeegee blade 48 inch rear linatex $236.70 1 usually ships 3-10 days
15a 202-2440 Squeegee blade 48 inch front gum rubber $141.10 1 (single vacuum system) usually ships 1-5 days
15b 202-2869 Squeegee blade 48 inch front linatex $203.00 1 (single vacuum system) usually ships 3-10 days
16a 202-2890 Squeegee blade 48 inch front gum rubber $114.20 1 (dual vacuum system) usually ships 1-5 days
16b 202-4057 Squeegee blade 48 inch front linatex $145.90 1 (dual vacuum system) usually ships 3-10 days
17 202-4058 Channel (OBSOLETE) $4.20 1 usually ships 1-5 days
18a 202-2304 Squeegee vacuum hose $90.60 1 (includes 18b) usually ships 3-10 days
18b 202-2396 2 1/2 inch hose cuff $28.90 1 usually ships 3-10 days
19 202-0151 Grommet $4.00 8 usually ships 3-10 days
21 202-2442 Squeegee trail arm $157.30 1 usually ships 1-5 days
22 202-2443 Knob $66.70 1 usually ships 1-5 days
23 202-2444 Spring $12.00 1 usually ships 1-5 days
24 202-2445 Caster wheel $134.10 2 usually ships 3-10 days
25 202-2463 Squeegee triangle plate $110.09 1 usually ships 1-5 days
26 202-0711 Clamping knob (pkg of 2) $15.00 8 ships same day
27 202-0582 Stand-off $10.80 4 usually ships 3-10 days
28 999-0688 Bolt 5/16-18 x 1 1/4 hex head stainless steel $0.99 4 ships same day
29 202-1040 Washer $6.88 2 ships same day
30 202-0161 Thrust bearing $14.80 1 usually ships 1-5 days
31 202-0162 O-ring $6.10 1 usually ships 1-5 days
32 202-1058 Washer 5/8 teflon $20.00 1 usually ships 3-10 days
33 202-2449 Nut 5/8-18 nylon locking stainless steel $12.00 2 usually ships 1-5 days
34 202-0806 Stud $14.00 4 usually ships 3-10 days
35 999-0262 Nut 1/2-13 nylon insert jam lock zinc plated $0.99 1 ships same day
36 999-1527 Screw 1/4-20 x 3 1/2 pan head phillips stainless steel $1.79 2 usually ships 1-5 days
37 999-1528 Screw 1/4-20 x 4 pan head phillips stainless steel $3.78 2 usually ships 1-5 days
38 999-1529 Screw 1/4-20 x 5 pan head phillips stainless steel $3.77 2 usually ships 1-5 days
39 999-1474 Screw 1/2-13 x 1 3/4 button head stainless steel $5.57 1 usually ships 1-5 days
40 997-2003 Hose clamp $2.66 1 ships same day
41 999-1441 Bolt 3/8-16 x 3 1/2 hex head stainless steel $7.26 2 ships same day
42 999-0982 Bolt 1/2-13 x 4 hex head cap zinc plated $2.54 1 usually ships 14-31 days
43 999-0982 Bolt 1/2-13 x 4 hex head cap zinc plated $2.54 2 usually ships 14-31 days
44 202-4059 Screw 1/2-13 x 12 hex head zinc plated $14.10 1 usually ships 1-5 days
45 999-0118 Nut 1/2-13 nylon insert lock zinc plated $0.90 4 ships same day
46 999-1006 Screw 3/8-16 x 1 3/4 hex head stainless steel $2.10 2 ships same day
47 999-0635 Nut 3/8-16 hex stainless steel $0.90 4 ships same day
48 999-0169 Nut 3/8-24 hex jam plain finish $0.90 2 ships same day
49 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel $0.99 16 ships same day
50 999-0617 Washer 3/8 x 1 flat stainless steel $1.82 4 ships same day
51 999-0559 Washer 1/2 x 1/4 flat stainless steel $0.99 4 ships same day
52 999-0553 Washer 5/16 medium split lock stainless steel $0.99 4 ships same day
53 999-0610 Screw 1/4-20 x 2 1/2 pan head phillips stainless steel $0.90 2 ships same day
54 999-1007 Washer 3/8 x 1/16 flat nylon $0.90 6 ships same day
55 999-0559 Washer 1/2 x 1/4 flat stainless steel $0.99 4 ships same day
56 999-0423 Nut 5/16-18 nylon insert lock stainless steel $0.99 4 ships same day
