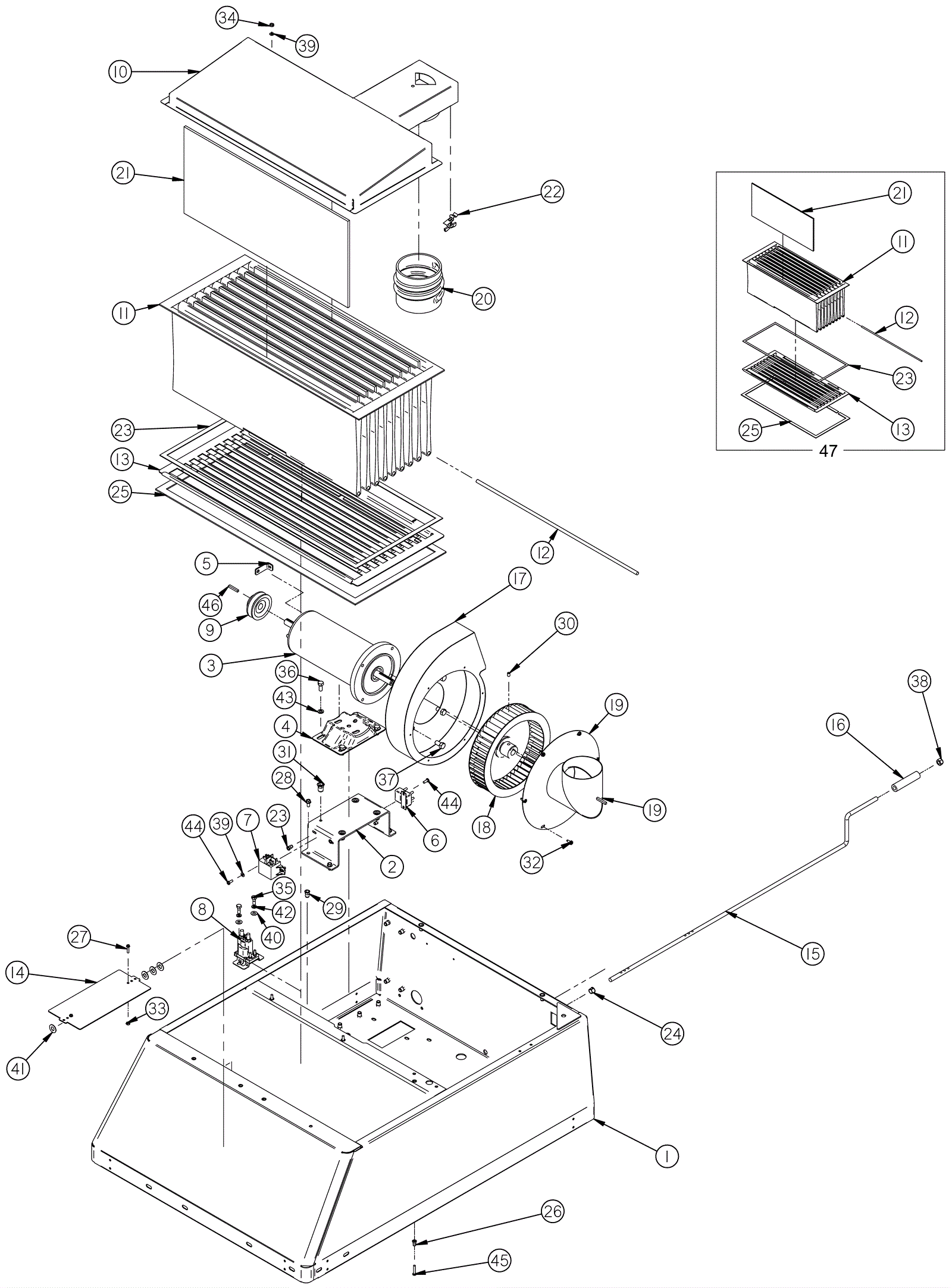

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
202-2673
|
Main body |
1 |
|
|
2 |
202-2689
|
Motor support bracket |
1 |
|
|
3 |
202-2690
|
12V twin shaft motor |
1 |
|
|
4 |
202-2691
|
Motor cradle |
1 |
|
|
5 |
202-2692
|
Terminal clip |
1 |
|
|
6 |
202-2577
|
80 amp breaker |
1 |
|
|
7 |
202-2694
|
12V solenoid |
1 |
|
|
8 |
202-5302
|
12V relay |
1 |
|
|
9 |
202-2695
|
Main drive pulley |
1 |
|
|
10 |
202-2696
|
Filter hood |
1 |
|
|
11 |
202-5042
|
Filter with tape seal kit |
1 |
(includes 202-2624) |
|
12 |
202-2619
|
Filter weight rod |
9 |
|
|
13 |
202-2697
|
Filter grill |
1 |
|
|
14 |
202-2698
|
Filter beater bar |
1 |
|
|
15 |
202-2699
|
Beater bar |
1 |
|
|
16 |
202-2700
|
Beater bar handle |
1 |
|
|
17 |
202-2661
|
Blower housing |
1 |
|
|
18 |
202-2662
|
Blower wheel |
1 |
|
|
19 |
202-2701
|
Blower door |
1 |
|
|
20 |
202-2702
|
Blower hose |
1 |
|
|
21 |
202-2703
|
Filter seperator (pkg of 9) |
9 |
|
|
22 |
202-2606
|
Door latch |
1 |
|
|
23 |
999-0460
|
Nut 10-32 hex |
1 |
|
|
24 |
202-0789
|
Flanged bushing |
1 |
|
|
25 |
202-2624
|
Tape Seal Kit, Filter |
1 |
|
|
26 |
999-0460
|
Nut 10-32 hex |
15 |
|
|
27 |
202-1085
|
10-32 x 3/4 Round Pan Head |
1 |
|
|
28 |
202-2687
|
Bolt 1/4-20 x 1/2 case hardened zinc flange |
1 |
|
|
29 |
999-0190
|
Nut 1/4-20 hex plain finish |
50 |
|
|
30 |
999-0095
|
Screw 1/4-20 x 3/8 cup point socket set alloy plain finish |
1 |
|
|
31 |
999-0069
|
Nut 5/16-18 hex |
4 |
|
|
32 |
202-1985
|
Screw 10 x 1/2 hex washer head |
1 |
|
|
33 |
999-0086
|
Nut 10-32 nylon insert lock zinc plated |
1 |
|
|
34 |
202-2067
|
Nut 10-32 keps |
1 |
|
|
35 |
999-0334
|
Bolt 1/4-20 x 3/4 inch hex head stainless steel |
2 |
|
|
36 |
999-0556
|
Bolt 5/16-18 x 3/4 hex head stainless steel |
1 |
|
|
37 |
999-0493
|
Bolt 3/8-16 x 3/4 hex head stainless steel |
1 |
|
|
38 |
999-1482
|
Nut 3/8-16 nylon lock stainless steel |
1 |
|
|
39 |
999-0998
|
Washer #10 flat stainless steel |
2 |
|
|
40 |
999-0335
|
Washer 1/4 x 5/8 SAE flat stainless steel |
2 |
|
|
41 |
999-0617
|
Washer 3/8 x 1 flat stainless steel |
1 |
|
|
42 |
999-0632
|
Washer 1/4 split lock stainless steel |
2 |
|
|
43 |
999-0553
|
Washer 5/16 medium split lock stainless steel |
1 |
|
|
44 |
999-1350
|
Screw 10-32 x 1/2 inch phillips pan head stainless steel |
2 |
|
|
45 |
999-0870
|
Screw 8 x 3/4 pan head phillips stainless steel |
1 |
|
|
46 |
202-0140
|
Steering shaft key |
2 |
|
|
47 |
202-2888
|
Filter assembly |
1 |
(includes 11-13, 21, 23, and 25) |
|
N/S |
202-2624
|
Tape Seal Kit, Filter |
1 |
(includes 23 and 25) |
|
