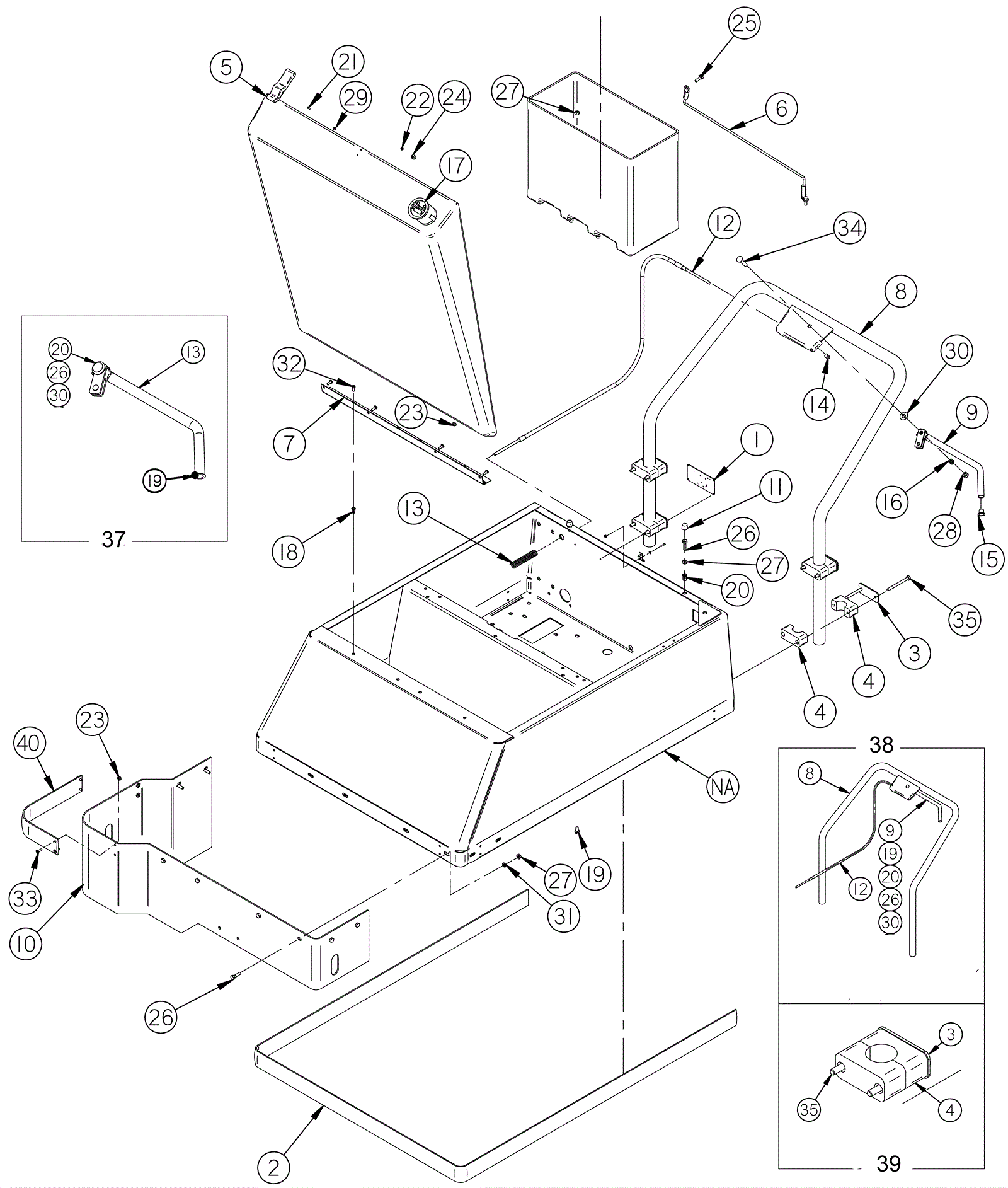

34 Upper Body Assembly

#PartDescriptionPriceReqNotesAvailability
1 202-0720 Serial number plate $4.68 1 usually ships 1-5 days
2 202-2152 2 in bumper strip with adhesive backing $65.67 1 usually ships 3-11 days
3 202-2674 Handlebar mounting bracket w/ bolts $6.71 2 usually ships 1-5 days
4 202-5307 Handlebar mounting bracket $28.82 3 usually ships 3-11 days
5 202-1487 Latch $25.19 1 usually ships 3-11 days
6 202-2022 Hood cable $27.39 1 usually ships 3-11 days
7 202-0448 Hood hinge $45.21 1 usually ships 1-5 days
8 202-2678 Handle bar weldment $491.15 1 usually ships 3-11 days
9 202-5305 Clutch lever $130.35 1 usually ships 1-5 days
10 202-2680 Bumper $299.75 1 usually ships 3-11 days
11 202-2681 Rubber hood stop $21.56 1 usually ships 3-11 days
12 202-2682 Clutch/brake cable $225.39 1 usually ships 1-5 days
13 202-2683 Clutch cable return spring $6.71 1 usually ships 3-11 days
14 202-2684 Clutch cable nut $20.79 1 usually ships 1-5 days
15 202-2685 Tube plug $6.71 1 usually ships 1-5 days
16 202-2686 Clutch tension spring $13.20 1 usually ships 1-5 days
17 202-5301 12V battery meter $213.40 1 (From SN 56353 and on) usually ships 3-11 days
18 999-0460 Nut 10-32 hex $0.99 7 ships same day
19 202-2687 Bolt 1/4-20 x 1/2 case hardened zinc flange $6.71 1 usually ships 1-5 days
20 999-0190 Nut 1/4-20 hex plain finish $0.99 50 ships same day
21 999-0983 Screw 4-40 x 1 pan head phillips zinc plated $0.99 1 ships same day
22 999-0295 Nut 4-40 nylon insert lock stainless steel $0.99 1 ships same day
23 999-0086 Nut 10-32 nylon insert lock zinc plated $0.99 2 ships same day
24 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel $1.18 1 ships same day
25 999-0334 Bolt 1/4-20 x 3/4 inch hex head stainless steel $3.85 1 ships same day
26 999-0297 Bolt 1/4-20 x 1 hex head stainless steel $2.53 2 ships same day
27 999-0609 Nut 1/4-20 hex stainless steel $0.99 3 ships same day
28 999-0423 Nut 5/16-18 nylon insert lock stainless steel $0.99 1 ships same day
29 202-2461 Washer 4 x 5/16 flat stainless steel $5.50 1 usually ships 1-5 days
30 999-0617 Washer 3/8 x 1 flat stainless steel $1.82 1 ships same day
31 999-0632 Washer 1/4 split lock stainless steel $0.99 1 ships same day
32 999-1350 Screw 10-32 x 1/2 inch phillips pan head stainless steel $0.99 1 ships same day
33 202-1205 Screw 10-32 x 5/8 flat head phillips machine stainless steel $5.50 1 usually ships 1-5 days
34 999-1370 Bolt 5/16-18 x 1 1/2 carriage head stainless steel $0.99 1 usually ships 1-5 days
35 202-3217 Bolt 1/4-20 x 3 inch hex head stainless steel (OBSOLETE) Call for price 2 usually ships 1-5 days
37 202-5305 Clutch lever $130.35 1 (includes 13, 19, 20, 26, and 30) usually ships 1-5 days
38 202-5306 Handlebar with clutch $742.72 1 (includes 8, 9, 12, 19, 20, 26, and 30) usually ships 1-5 days
39 202-5307 Handlebar mounting bracket $28.82 1 (includes 3 and 4) usually ships 3-11 days
40 202-2978 Bumper strip $36.85 1 usually ships 3-11 days
