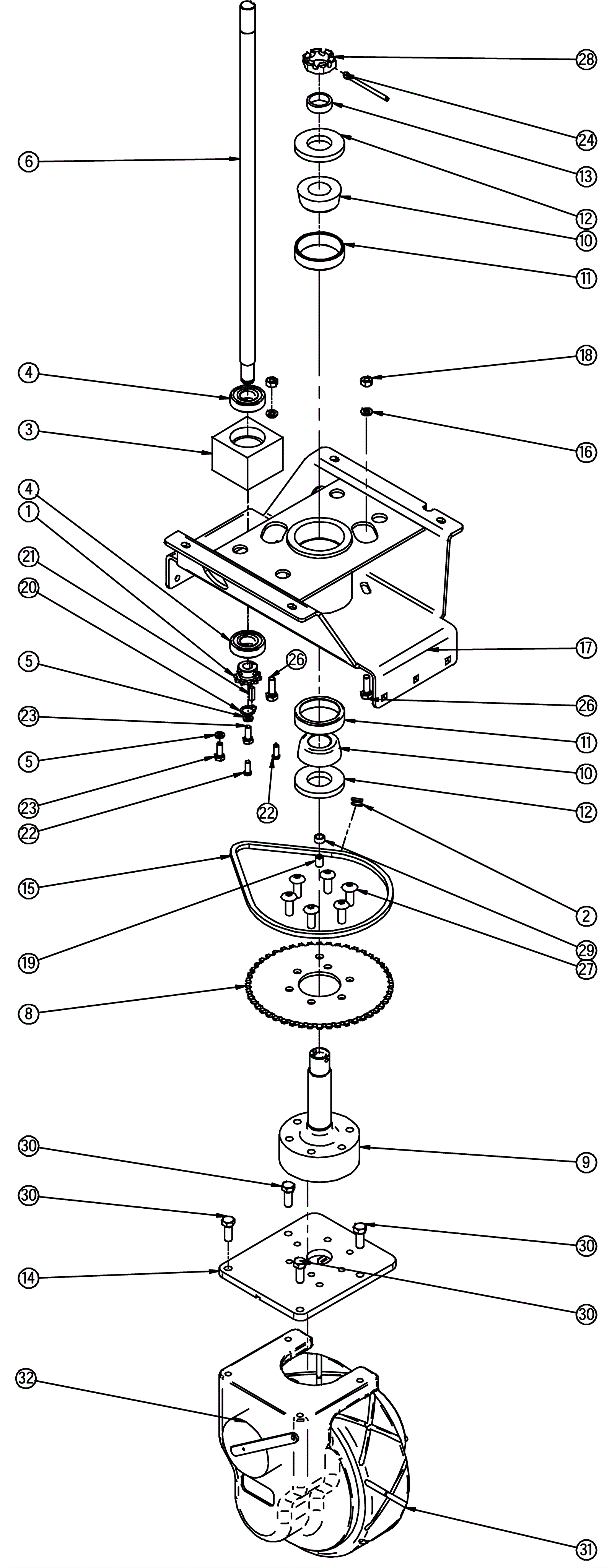

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
202-0280
|
10 toothed sprocket |
1 |
|
|
2 |
202-0283
|
Master link |
1 |
|
|
3 |
202-0771
|
Bearing block |
1 |
|
|
4 |
202-0160
|
Bearing |
2 |
|
|
5 |
999-0060
|
Washer 1/4 split lock plain finish |
2 |
|
|
6 |
202-1892
|
Lower steering shaft |
1 |
|
|
8 |
202-1894
|
60 toothed sprocket |
1 |
|
|
9 |
202-2308
|
Steering shaft spindle |
1 |
|
|
10 |
202-0766
|
Tapered bearing |
2 |
|
|
11 |
202-0767
|
Bearing cap |
2 |
|
|
12 |
202-0768
|
Seal |
2 |
|
|
13 |
202-0769
|
Sleeved bearing |
1 |
|
|
14 |
202-1896
|
Pivot plate |
1 |
|
|
15 |
202-1897
|
Steering chain |
1 |
|
|
16 |
999-0553
|
Washer 5/16 medium split lock stainless steel |
2 |
|
|
17 |
202-1898
|
Drop plate |
1 |
|
|
18 |
999-0069
|
Nut 5/16-18 hex |
2 |
|
|
19 |
202-1169
|
Clevis pin |
1 |
|
|
20 |
202-0281
|
Snap ring |
1 |
|
|
21 |
164-1029
|
Square keyway |
1 |
|
|
22 |
999-0435
|
Screw 1/4-20 x 5/8 socket head alloy plain finish |
2 |
|
|
23 |
999-0020
|
Bolt 1/4-20 x 3/4 hex head grade 5 zinc plated |
2 |
|
|
24 |
997-2520
|
Cotter pin |
1 |
|
|
26 |
999-0031
|
Bolt 5/16-18 x 1 hex head grade 5 zinc plated |
2 |
|
|
27 |
999-1011
|
Screw 3/8-24 x 1 button head socket plain finish |
6 |
|
|
28 |
202-1166
|
Slotted castle nut |
1 |
|
|
29 |
202-0775
|
PVC tube |
1 |
|
|
30 |
999-0562
|
Bolt 3/8-16 x 1 hex head stainless steel |
4 |
|
|
31 |
202-1893
|
Drive wheel assembly w/motor - includes brake |
1 |
|
|
32 |
202-2455
|
Brake assembly |
1 |
|
|
