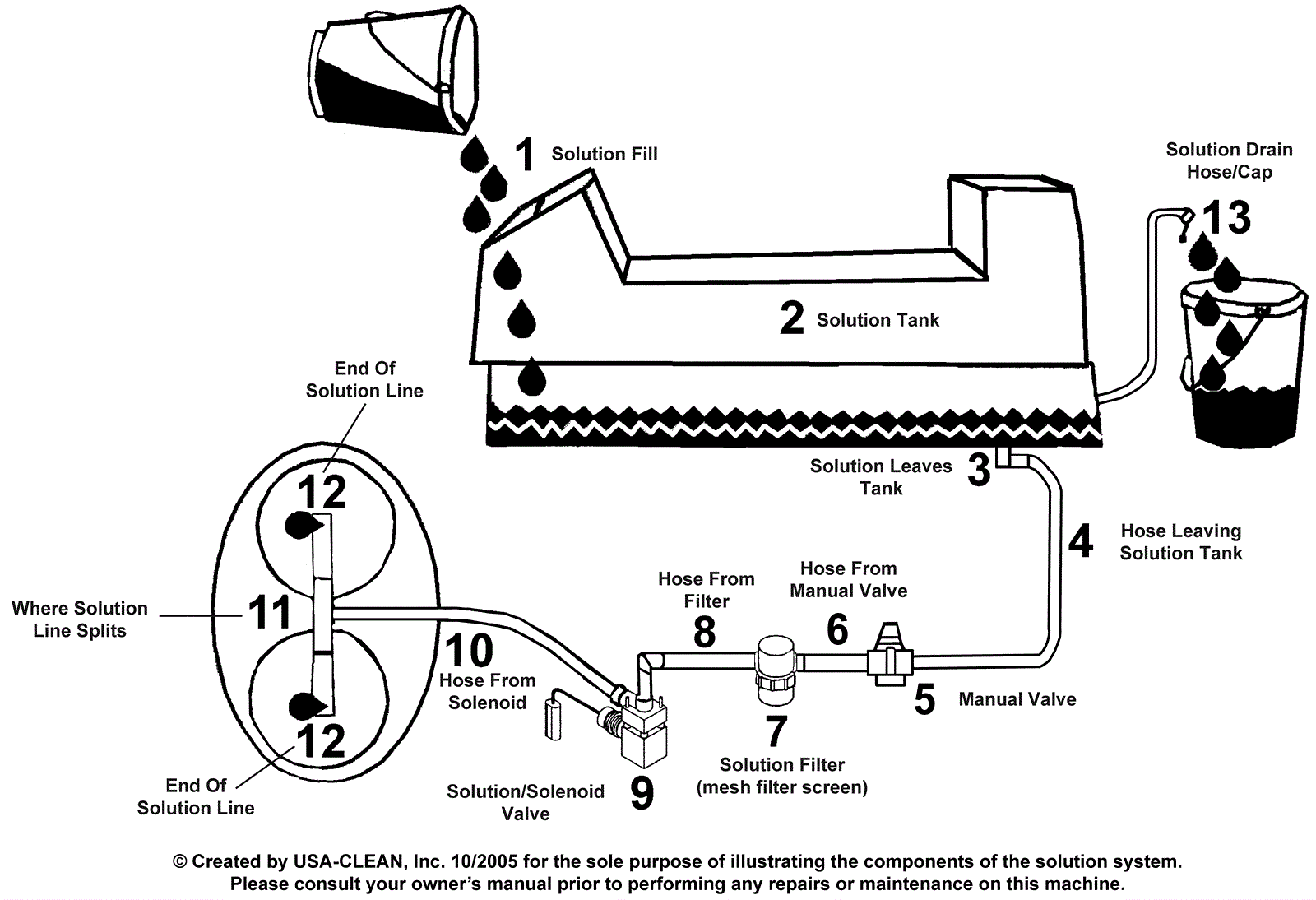

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
202-2387
|
Solution tank lid |
|
Tank Assembly |
|
2 |
202-2389
|
Solution tank |
|
Tank Assembly |
|
3 |
202-2354
|
Barb 3/4 x 3/4 inch |
|
Chassis Assembly |
|
4 |
202-2331
|
Vinyl tubing 3/4 x 3 1/2 inch (clear) |
|
Chassis Assembly |
|
5 |
202-2352
|
Ball valve (OBSOLETE) |
|
Seat Assembly |
|
6 |
202-2355
|
Vinyl tubing 5/8 x 15 inch (clear) (OBSOLETE) |
|
Seat Assembly |
|
7 |
202-1882
|
Inline filter |
|
Tank Assembly |
|
8 |
202-2356
|
Vinyl tubing 5/8 x 8 inch (clear) |
|
Seat Assembly |
|
9 |
202-0208
|
Adjustable solution flow valve |
|
Seat Assembly |
|
10 |
202-2506
|
Tubing 5/8 x 40 inch (clear) (OBSOLETE) |
|
Scrub Deck Assembly |
|
11 |
202-1936
|
Barbed tee |
|
Scrub Deck Assembly |
|
12 |
202-0884
|
Barbed elbow |
|
Scrub Deck Assembly |
|
12 |
202-2504
|
Tubing 5/8 x 10 inch (clear) (OBSOLETE) |
|
Scrub Deck Assembly |
|
12 |
202-2505
|
Tubing 5/8 x 8 inch (clear) (OBSOLETE) |
|
Scrub Deck Assembly |
|
13 |
202-0591
|
Solution tank bulkhead fitting |
|
Tank Assembly |
|
