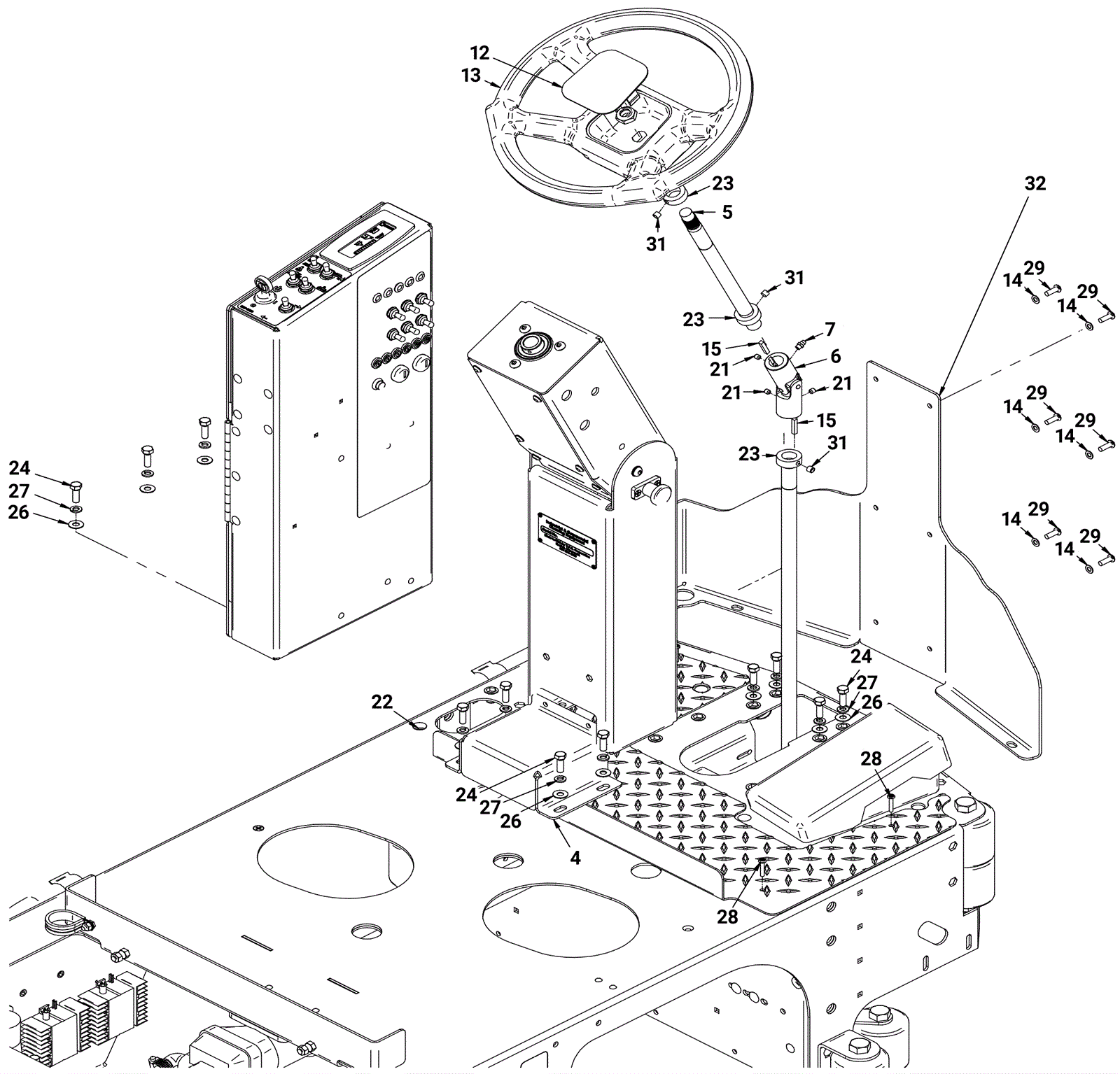

GTX V2.0 29 INCH Steering Column and Central Command Assembly

#PartDescriptionPriceReqNotesAvailability
4 202-0717 Drive cover $43.89 1 usually ships 1-5 days
5 202-0761 Upper steering shaft $63.03 1 usually ships 1-5 days
6 202-0760 U-joint $131.23 1 usually ships 3-11 days
7 202-2404 Fitting $5.50 1 usually ships 1-5 days
12 202-0773 Steering cover $15.07 1 usually ships 1-5 days
13 202-8461 Lid,Recovery Tank,Blank (OBSOLETE) $69.52 1 usually ships 3-11 days
14 202-1196 Washer 17/64 x 21/64 nylon flat $5.50 6 ships same day
15 202-0847 Square keyway $5.50 2 usually ships 3-11 days
21 202-3154 Screw 1/4-20 x 1/4 set $5.50 3 ships same day
22 999-0069 Nut 5/16-18 hex $0.99 10 ships same day
23 202-2216 Shaft collar with set screw $5.50 3 usually ships 3-11 days
24 999-0424 Bolt 5/16-18 x 1 hex head stainless steel $0.99 11 ships same day
26 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel $0.99 11 ships same day
27 999-0553 Washer 5/16 medium split lock stainless steel $0.99 11 ships same day
28 999-0986 Screw 10-32 x 1 round pan head stainless steel $5.50 6 ships same day
29 999-0867 Bolt 1/4-20 x 3/4 button head socket cap stainless steel $0.99 6 ships same day
31 999-0346 Screw 5/16-18 x 1/4 set cup point socket alloy plain finish $0.99 3 ships same day
32a 202-4333 Front apron (granite) $186.49 1 usually ships 1-5 days
32b 202-4334 Front apron (red) $175.03 1 usually ships 1-5 days
N/S 202-4335 Central command Call for price 1 usually ships 1-5 days
N/S 202-0756 Guide roller $28.16 1 usually ships 3-11 days
N/S 202-1008 Barbed elbow $20.79 1 usually ships 3-11 days
N/S 202-4336 Jaw roller Call for price 1 usually ships 1-5 days
N/S 202-2368 36V water jet pump $933.46 1 usually ships 3-11 days
N/S 202-5546 9-60V LED head light $68.97 1 usually ships 1-5 days
N/S 202-4337 Non skid floor plate $203.03 1 usually ships 1-5 days
N/S 999-1508 Bolt 10-32 x 5/8 round carriage head stainless steel $0.99 1 usually ships 1-5 days
N/S 999-1982 Bolt 10-32 x 1 round carriage head stainless steel $2.86 2 usually ships 11-24 days
N/S 202-3236 Threaded barb $5.50 1 usually ships 3-11 days
N/S 202-0680 Hose clamp $5.50 1 usually ships 3-11 days
N/S 202-3601 Nut #10-32 hex crimp $5.50 6 usually ships 3-11 days
N/S 999-0704 Nut 5/8-11 nylon insert lock stainless steel $3.65 1 ships same day
N/S 999-9066 Bolt 5/16-18 x 1 carriage head stainless steel $1.34 3 ships same day
