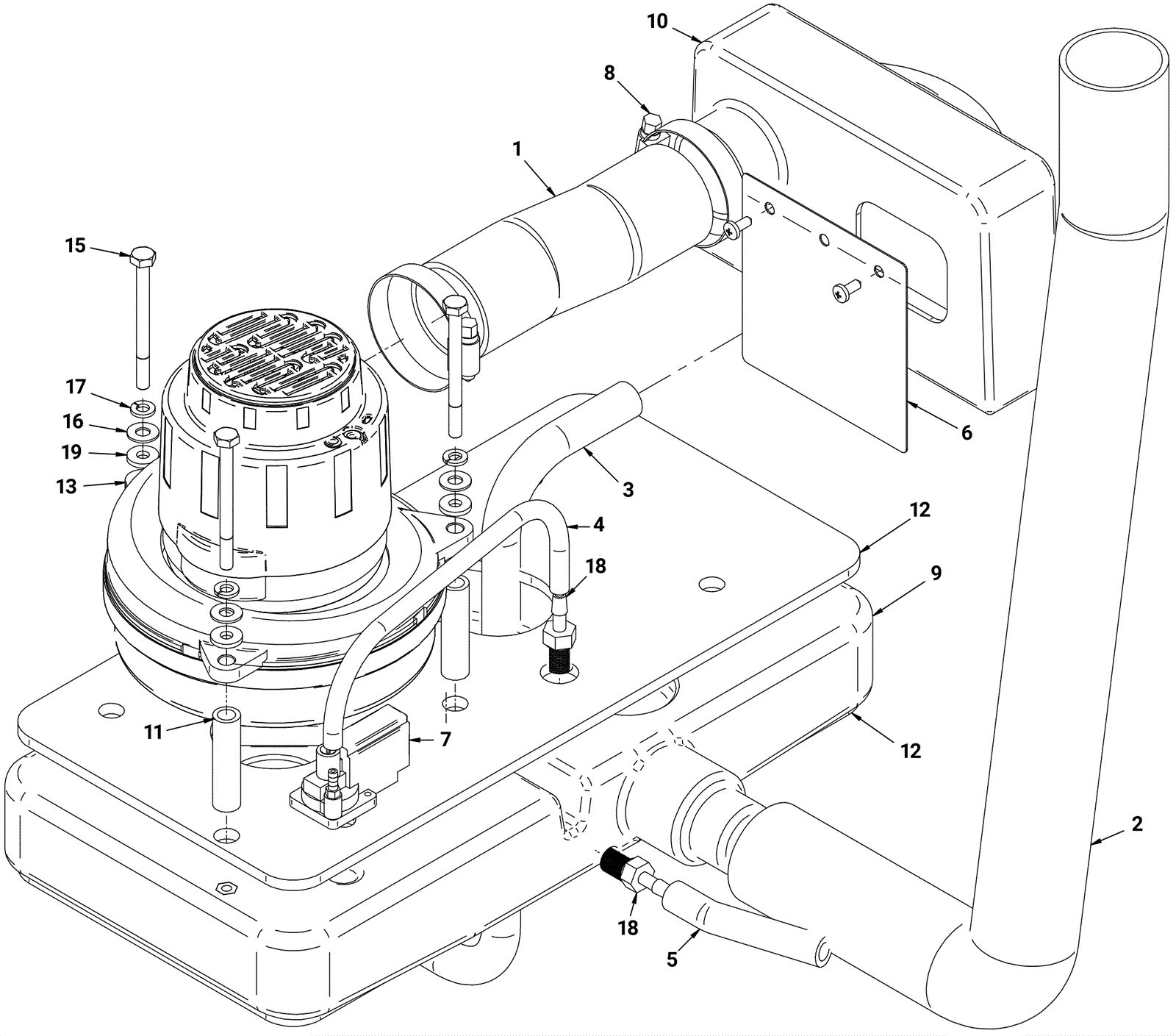

GTX V2.0 29 INCH Vacuum Motor Assembly

#PartDescriptionPriceReqNotesAvailability
1 N/A Not available Call for price 1 (2 inch hose) usually ships 3-26 days
2 N/A Not available Call for price 1 (clean air intake) usually ships 3-26 days
3 N/A Not available Call for price 1 (vacuum box drain) usually ships 3-26 days
4 N/A Not available Call for price 1 (vacuum switch hose) usually ships 3-26 days
5 N/A Not available Call for price 1 (hose) usually ships 3-26 days
6 202-6320 Flap,Drain Saver Basket $10.78 1 usually ships 3-11 days
7 202-1908 Vacuum shut-off switch $80.52 1 usually ships 3-11 days
8 997-2011 Hose clamp $2.67 2 ships same day
9 202-9680 Vac box $125.18 1 usually ships 3-11 days
10 202-9681 Vac muffler housing $98.45 1 usually ships 3-11 days
11 202-9682 2 1/8 inch plastic spacer $5.50 3 usually ships 3-11 days
12 202-9683 Vac motor gasket set $28.49 2 usually ships 3-11 days
13 202-9684 36V 2 stage vacuum motor $300.30 1 usually ships 3-11 days
15 202-9338 Screw,Hex Cap,1/4-20x3 inch Stainless $6.71 3 usually ships 3-11 days
16 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel $0.99 3 ships same day
17 999-0632 Washer 1/4 split lock stainless steel $0.99 3 ships same day
18 202-9488 Fitting,1/4 inchNPTx1/8 inchBarb $5.50 2 usually ships 3-11 days
19 202-1986 Washer 3/8 x 1-1/8 x 3/32 neoprene thread $5.50 3 usually ships 3-11 days
N/S 202-9255 PPH SMS #10 x 1/2 inch SBO $5.50 2 usually ships 3-11 days
