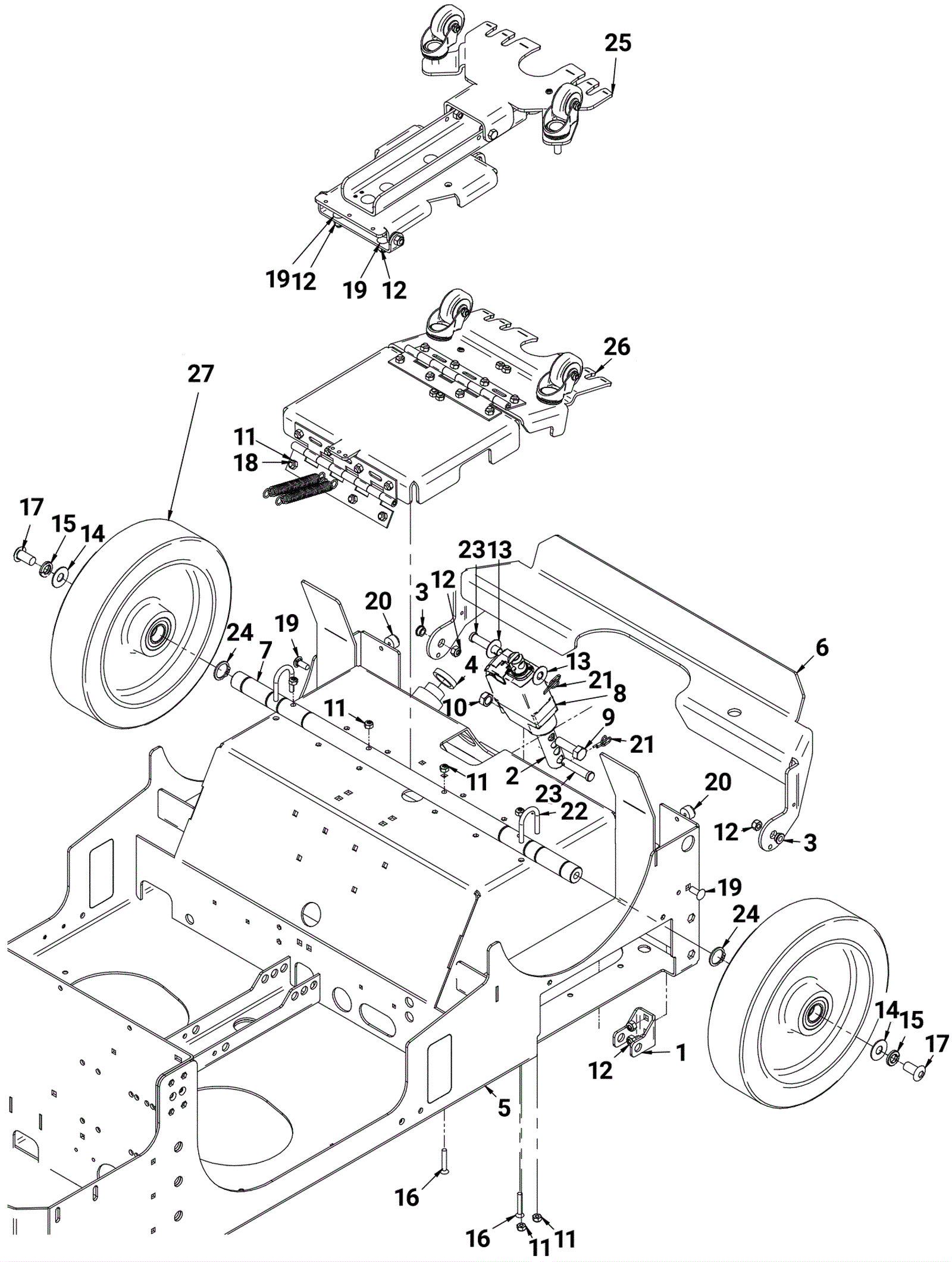

GTX V2.0 29 INCH Attaching Squeegee Trail Arm, Bumper and Axle Assembly

#PartDescriptionPriceReqNotesAvailability
1 202-5316 Lifting bracket $16.50 1 usually ships 1-5 days
2 202-9736 Actuator adaptor $51.37 1 usually ships 3-11 days
3 202-7656 Bushing,Flanged,5/16 inchIDx1/2 inchODx 1/4 inch, Hardened S $12.87 2 usually ships 3-11 days
4 202-5156 Alarm $27.61 1 usually ships 3-11 days
5 202-4299 Main frame $3,383.31 1 usually ships 1-5 days
7 202-4043 Axle $184.03 1 usually ships 1-5 days
8 202-3700 36V fast actuator $500.61 1 ships same day
9 999-1326 Screw M12-1.75 x 40mm hex head $2.59 1 ships same day
10 999-1122 Nut M12-1.75 hex nylon insert lock stainless steel $3.47 1 usually ships 11-24 days
11 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel $1.18 12 ships same day
12 999-0423 Nut 5/16-18 nylon insert lock stainless steel $0.99 10 ships same day
13 999-1416 Washer 7/16 flat stainless steel $0.99 2 ships same day
14 999-0559 Washer 1/2 x 1/4 flat stainless steel $0.99 2 ships same day
15 999-0560 Washer 1/2 lock stainless steel $0.99 2 ships same day
17 999-1917 Screw 1/2-13 x 1 button socket cap SS $12.85 2 ships same day
18 202-2851 Bolt 1/4-20 x 5/8 inch carriage head stainless steel $5.50 4 usually ships 3-11 days
19 999-0967 Bolt 5/16-18 x 3/4 carriage head stainless steel $2.16 4 ships same day
20 202-3275 Rubber bumper $5.50 2 usually ships 3-11 days
22 202-5603 U-bolt 1/4-20 x 1 $5.50 2 usually ships 3-11 days
23 202-9707 Clevis pin Call for price 2 usually ships 3-11 days
24 202-9560 Ring,Retaining,1 inch Heavy Duty $5.50 2 usually ships 3-11 days
25 202-9728 Squeegee trail arm swing complete assembly $530.75 1 (standard) usually ships 3-11 days
26 202-9729 Fixed squeegee trail arm assembly $583.77 1 (optional) usually ships 3-11 days
27a 202-5601 Poly wheel assembly (gray) $264.22 2 usually ships 3-11 days
27b 202-8252 Wheel Assembly,Rear,Poly,2.7 inchW Black Poly, 65 ShA, Groov $280.78 2 usually ships 3-11 days
