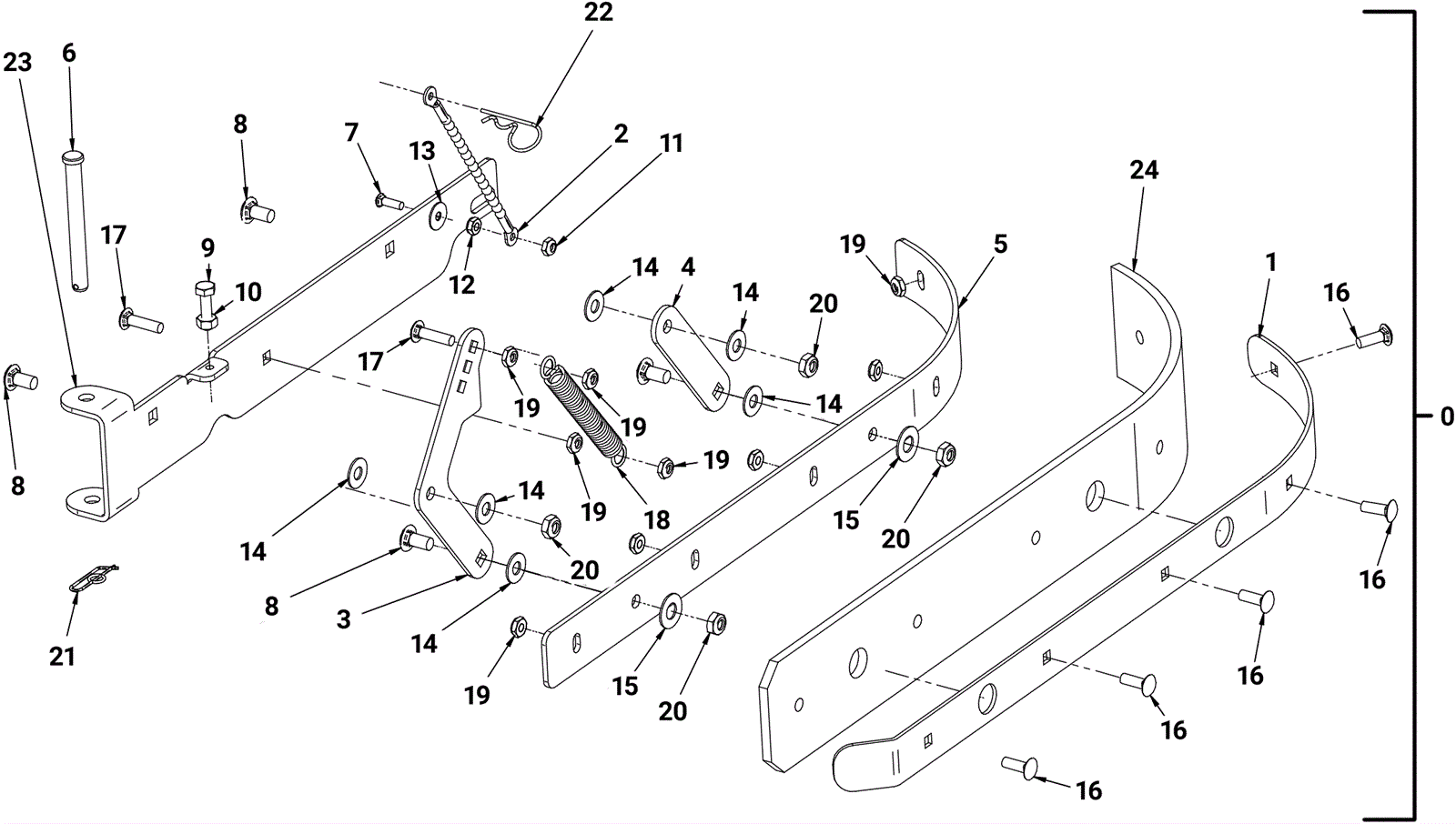

| # | Part | Description | Price | Req | Notes | Availability |
|---|
0a |
202-9727
|
Left hand horizontal arm shroud complete |
$256.19
|
1 |
(includes 1-22, 23a, 24) |
usually ships 8-13 days |
0b |
202-9724
|
Right hand horizontal arm shroud complete |
$256.30
|
1 |
(includes 1-22, 23b, 24) |
usually ships 8-13 days |
1 |
202-5123
|
Wiper band |
$48.84
|
1 |
|
usually ships 8-13 days |
2 |
202-3127
|
4 inch chain (6 inch no longer available) |
$15.73
|
1 |
|
usually ships 8-13 days |
3 |
202-9647
|
Vertical arm shroud |
$26.73
|
1 |
|
usually ships 8-13 days |
4 |
202-9648
|
Vertical arm wiper |
$18.04
|
1 |
|
usually ships 8-13 days |
5 |
202-9649
|
Side shroud |
$61.27
|
1 |
|
usually ships 8-13 days |
6 |
999-1633
|
Clevis pin 3/8 x 3 1/2 |
$4.31
|
1 |
|
ships same day |
7 |
999-1508
|
Bolt 10-32 x 5/8 round carriage head stainless steel |
$0.99
|
1 |
|
usually ships 1-5 days |
8 |
999-1457
|
Bolt 5/16-18 x 5/8 round head carriage stainless steel |
$0.99
|
4 |
|
usually ships 1-5 days |
9 |
999-0297
|
Bolt 1/4-20 x 1 hex head stainless steel |
$2.53
|
1 |
|
ships same day |
10 |
999-0609
|
Nut 1/4-20 hex stainless steel |
$0.99
|
1 |
|
ships same day |
11 |
999-0086
|
Nut 10-32 nylon insert lock zinc plated |
$0.99
|
1 |
|
ships same day |
12 |
202-2067
|
Nut 10-32 keps |
$5.50
|
1 |
|
usually ships 8-13 days |
13 |
202-3316
|
Washer flat stainless steel |
$5.50
|
1 |
|
usually ships 8-13 days |
14 |
999-0549
|
Washer 5/16 x 3/4 SAE flat stainless steel |
$0.99
|
6 |
|
ships same day |
15 |
999-0617
|
Washer 3/8 x 1 flat stainless steel |
$1.82
|
2 |
|
ships same day |
16 |
999-0963
|
Bolt 1/4-20 x 3/4 carriage head stainless steel |
$1.50
|
5 |
|
ships same day |
17 |
999-1401
|
Bolt 1/4-20 x 1 carriage head stainless steel |
$1.23
|
2 |
|
ships same day |
18 |
202-2208
|
Compression spring |
$6.71
|
1 |
|
usually ships 8-13 days |
19 |
999-0304
|
Nut 1/4-20 nylon lock jam stainless steel |
$0.99
|
9 |
|
ships same day |
20 |
999-1019
|
Nut 5/16-18 hex jam stainless steel |
$0.99
|
4 |
|
ships same day |
21 |
202-2036
|
Cotter pin |
$5.50
|
1 |
|
usually ships 8-13 days |
22 |
202-3129
|
Cotter pin |
$5.50
|
1 |
|
usually ships 8-13 days |
23a |
202-9726
|
Left hand horizontal arm shroud |
$93.72
|
1 |
|
usually ships 8-13 days |
23b |
202-9725
|
Right hand horizontal arm shroud |
$93.72
|
1 |
|
usually ships 8-13 days |
24a |
202-3019
|
Shroud curtain linatex (red) |
$63.91
|
1 |
|
usually ships 8-13 days |
24b |
202-3381
|
Shroud curtain gum rubber (tan) |
$41.69
|
1 |
|
usually ships 8-13 days |
24c |
202-6613
|
Curtain,Wiper,Urethane |
$98.23
|
1 |
|
usually ships 8-13 days |
