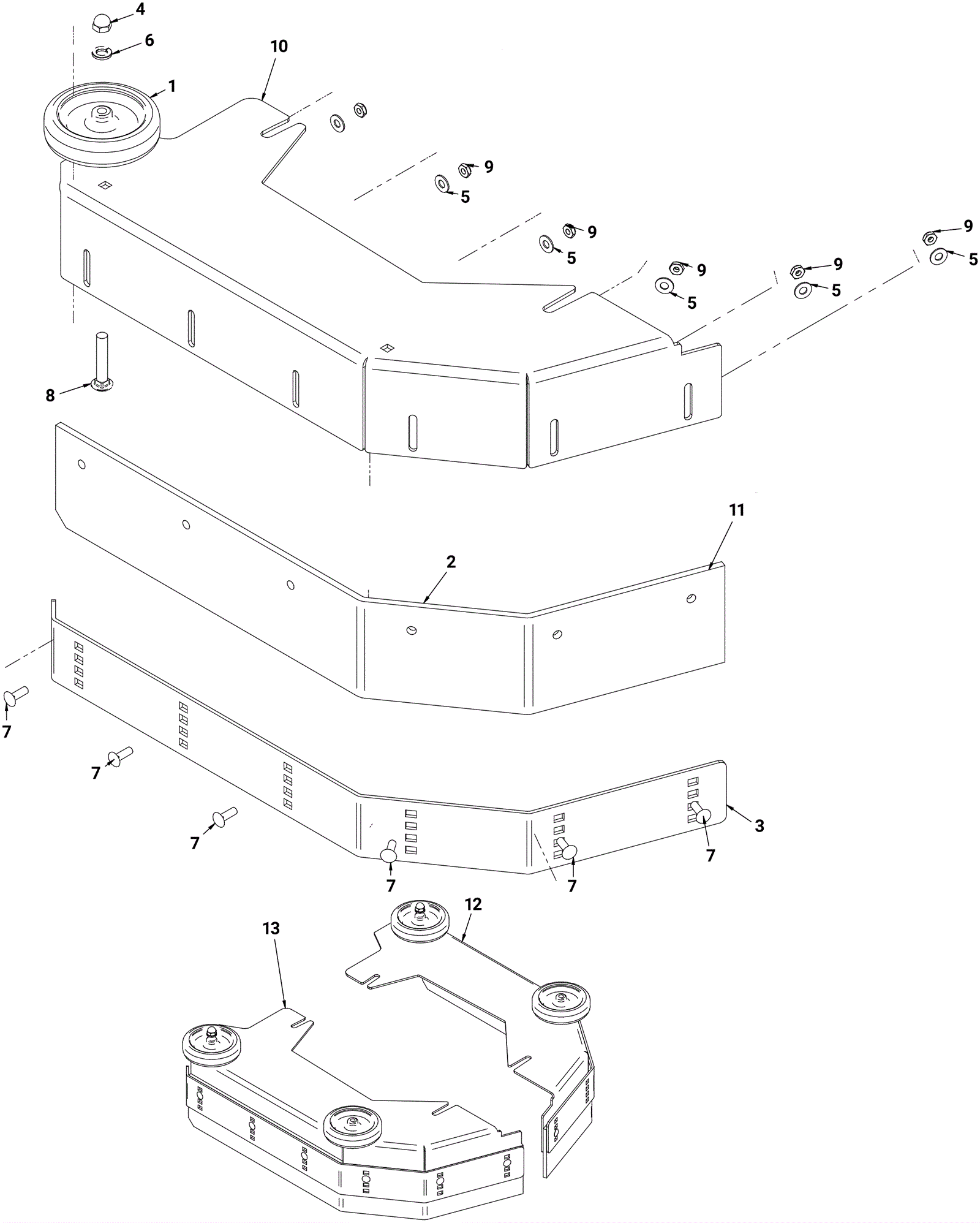

| # | Part | Description | Price | Req | Notes | Availability |
|---|
1 |
202-5079
|
4 inch wheel |
$10.23
|
2 |
|
usually ships 8-13 days |
2 |
202-1995
|
Shroud curtain gum rubber (tan) |
$49.17
|
1 |
|
usually ships 8-13 days |
3 |
202-4309
|
Shroud curtain band |
$75.90
|
1 |
|
usually ships 8-13 days |
4 |
999-1632
|
Nut 3/8-16 acorn stainless steel |
$2.61
|
1 |
|
ships same day |
5 |
999-0335
|
Washer 1/4 x 5/8 SAE flat stainless steel |
$0.99
|
6 |
|
ships same day |
6 |
999-0659
|
Washer 3/8 medium split lock stainless steel |
$0.39
|
1 |
|
ships same day |
7 |
999-0963
|
Bolt 1/4-20 x 3/4 carriage head stainless steel |
$1.23
|
6 |
|
ships same day |
8 |
999-1149
|
Bolt 3/8-16 x 2 carriage head stainless steel |
$6.57
|
1 |
|
ships same day |
9 |
999-0304
|
Nut 1/4-20 nylon lock jam stainless steel |
$0.99
|
6 |
|
ships same day |
10a |
202-4310
|
26 inch left hand shroud |
$231.00
|
1 |
|
usually ships 8-13 days |
10b |
202-4311
|
26 inch right hand shroud |
$231.00
|
1 |
|
usually ships 8-13 days |
10c |
202-4312
|
28 inch left hand shroud |
$162.36
|
1 |
|
usually ships 8-13 days |
10d |
202-4313
|
28 inch right hand shroud |
$162.36
|
1 |
|
usually ships 8-13 days |
10e |
202-4314
|
30 inch left hand shroud |
$148.94
|
1 |
|
usually ships 8-13 days |
10f |
202-4315
|
30 inch right hand shroud |
$148.94
|
1 |
|
usually ships 8-13 days |
10g |
202-4316
|
34 inch left hand shroud |
$128.59
|
1 |
|
usually ships 8-13 days |
10h |
202-4317
|
34 inch right hand shroud |
$128.59
|
1 |
|
usually ships 8-13 days |
11a |
202-4205
|
Side skirt |
$88.33
|
1 |
|
ships same day |
11b |
202-1995
|
Shroud curtain gum rubber (tan) |
$49.17
|
1 |
|
usually ships 8-13 days |
11c |
202-3560
|
Shroud curtain urethane |
$161.92
|
1 |
|
ships same day |
12a |
202-4318
|
26 inch complete right hand shroud |
$352.66
|
1 |
(includes 1-9, 10b, 11) |
usually ships 8-13 days |
12b |
202-4319
|
28 inch complete right hand shroud |
$272.91
|
1 |
(includes 1-9, 10d, 11) |
usually ships 8-13 days |
12c |
202-4320
|
30 inch complete right hand shroud |
$351.67
|
1 |
(includes 1-9, 10f, 11) |
usually ships 8-13 days |
12d |
202-4321
|
34 inch complete right hand shroud |
$318.12
|
1 |
(includes 1-9, 10h, 11) |
usually ships 8-13 days |
13a |
202-4322
|
26 inch complete left hand shroud |
$352.66
|
1 |
(includes 1-9, 10a, 11) |
usually ships 8-13 days |
13b |
202-4323
|
28 inch complete left hand shroud |
$272.91
|
1 |
(includes 1-9, 10c, 11) |
usually ships 8-13 days |
13c |
202-4324
|
30 inch complete left hand shroud |
$351.23
|
1 |
(includes 1-9, 10e, 11) |
usually ships 8-13 days |
13d |
202-4325
|
34 inch complete left hand shroud |
$318.12
|
1 |
(includes 1-9, 10g, 11) |
usually ships 8-13 days |
