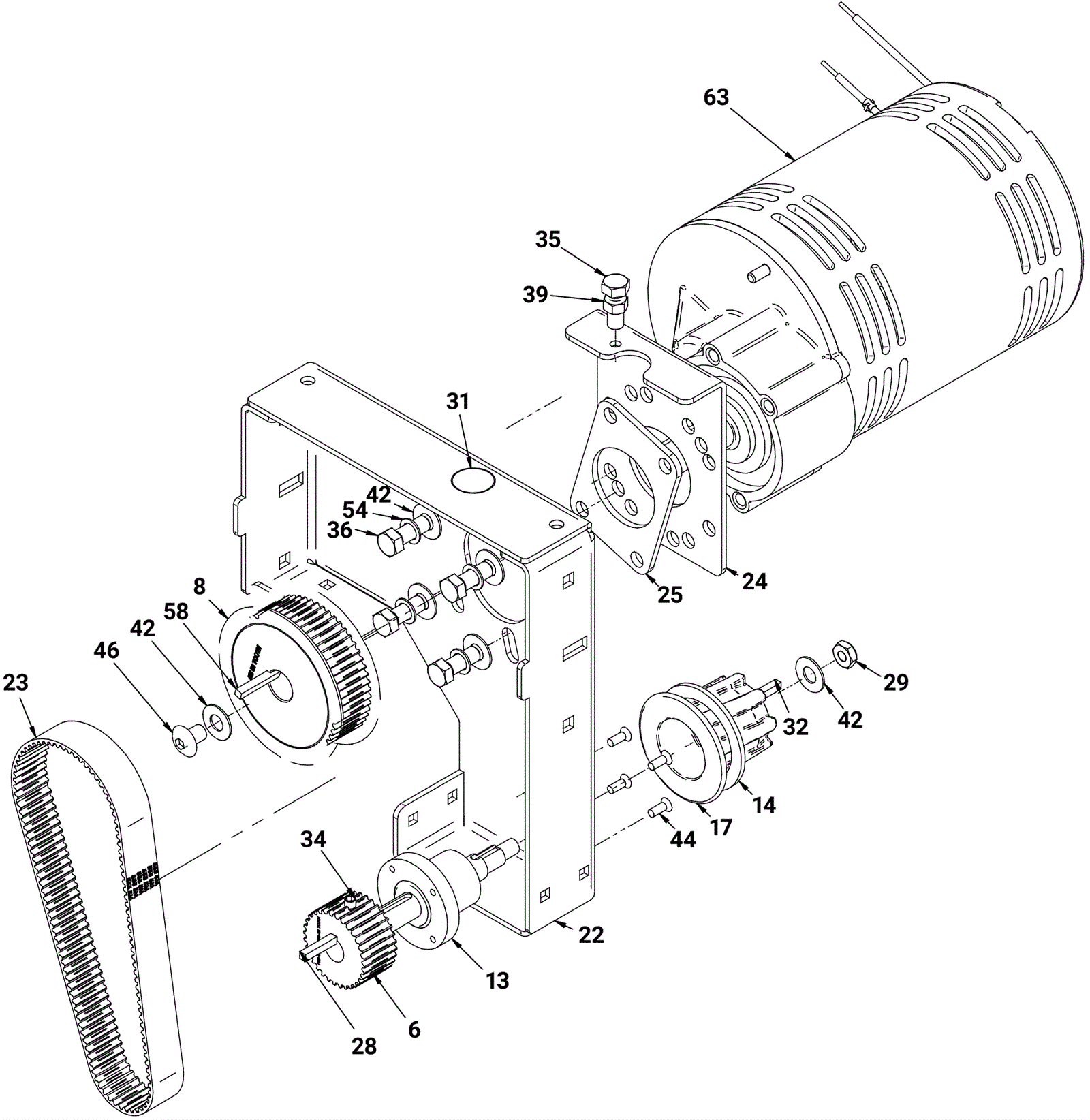

GTX V2.0 29 INCH Cylindrical Decks Assembly 2

#PartDescriptionPriceReqNotesAvailability
6 202-3140 32 toothed sprocket $78.32 2 usually ships 3-11 days
8 202-7059 Sprocket, Timing, 56 Tooth $233.09 2 usually ships 3-11 days
13 202-3146 Bearing housing $161.48 2 usually ships 3-11 days
14 202-7788 Seal,Cylindrical Driver $5.50 2 usually ships 3-11 days
17 202-8375 Driver, Cylindrical Spiral, 8 Spline, Brass Brass $244.81 2 usually ships 3-11 days
22 202-2174 Side support HD $345.18 2 usually ships 3-11 days
23 202-0023 Cylindrical belt $69.78 2 usually ships 3-11 days
24 202-9650 Motor adjustment bracket $53.24 2 usually ships 3-11 days
25 202-2175 Motor spacer $43.34 2 usually ships 3-11 days
28 N/A Not available Call for price 1 (square keyway) usually ships 3-26 days
29 N/A Not available Call for price 1 (nut) usually ships 3-26 days
31 202-9193 Plug,Hole,7/8 inch $5.50 2 usually ships 3-11 days
32 202-3153 Square keyway $5.50 2 usually ships 3-11 days
34 202-3154 Screw 1/4-20 x 1/4 set $5.50 8 ships same day
35 999-0424 Bolt 5/16-18 x 1 hex head stainless steel $0.99 2 ships same day
36 999-0562 Bolt 3/8-16 x 1 hex head stainless steel $1.50 8 ships same day
39 999-0423 Nut 5/16-18 nylon insert lock stainless steel $0.99 45 ships same day
42 999-0617 Washer 3/8 x 1 flat stainless steel $1.82 20 ships same day
44 999-1009 Screw 10-32 x 1/2 flat head phillips stainless steel $0.99 8 ships same day
46 999-1481 Screw 3/8-16 x 1/2 button head stainless steel $4.33 2 usually ships 1-5 days
54 202-3158 Washer 3/8 inch serrated stainless steel $8.58 8 usually ships 1-5 days
58 N/A Not available Call for price 1 (key) usually ships 3-26 days
63a 202-5125 36V 3/4HP motor $518.80 1 (25 inch) usually ships 3-11 days
63b 202-3145 36V brush motor $813.56 1 (29 and 33 inch) usually ships 3-11 days
