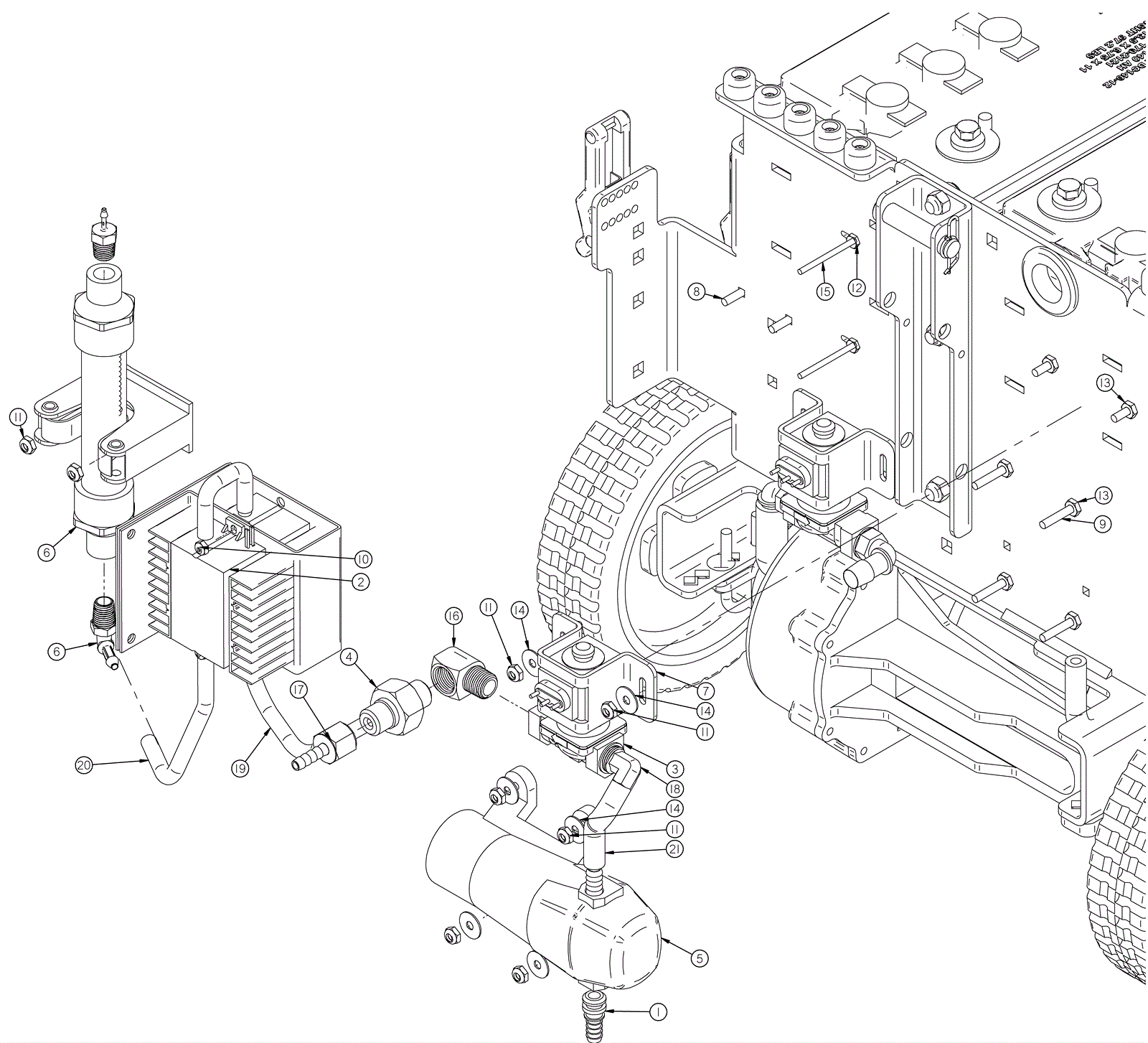

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
202-5846
|
Port 3/8 HB Elbow |
1 |
|
|
2 |
202-5870
|
24VDC O3 Generator Assembly 100/mg |
1 |
|
|
3 |
202-4246
|
24V solution solenoid valve |
1 |
|
|
4 |
202-5892
|
Red Injector |
1 |
|
|
5 |
202-5895
|
Pump,12v, 35PSI, 1 GPM |
1 |
|
|
6 |
202-5903
|
Air Dryer Assembly |
1 |
|
|
8 |
999-1873
|
Bolt 10-32 x 3/4 carriage head stainless steel |
1 |
|
|
9 |
999-1570
|
Bolt 10-32 x 1 1/4 round head carriage stainless steel |
1 |
|
|
10 |
999-0337
|
Nut 6-32 nylon insert lock stainless steel |
1 |
|
|
11 |
999-0086
|
Nut 10-32 nylon insert lock zinc plated |
4 |
|
|
12 |
999-0515
|
Nut 6-32 k-lock stainless steel |
1 |
|
|
13 |
202-2067
|
Nut 10-32 keps |
2 |
|
|
14 |
202-3316
|
Washer flat stainless steel |
3 |
|
|
15 |
999-6720
|
Screw #6-32 x 2 phillips pan head stainless steel |
1 |
|
|
16 |
202-9463
|
Elbow Fitting,3/8NPTx3/8FNPT |
1 |
|
|
17 |
202-9476
|
Fitting, 3/8 NPTF x 1/4 inch Barb |
1 |
|
|
18 |
202-5379
|
3/8 inch elbow |
1 |
|
|
19 |
202-4247
|
Hose 1/4 inch x 5 foot |
1 |
|
|
20 |
202-4247
|
Hose 1/4 inch x 5 foot |
1 |
|
|
21 |
202-4249
|
Hose 3/8 inch x 5 foot |
1 |
|
|
