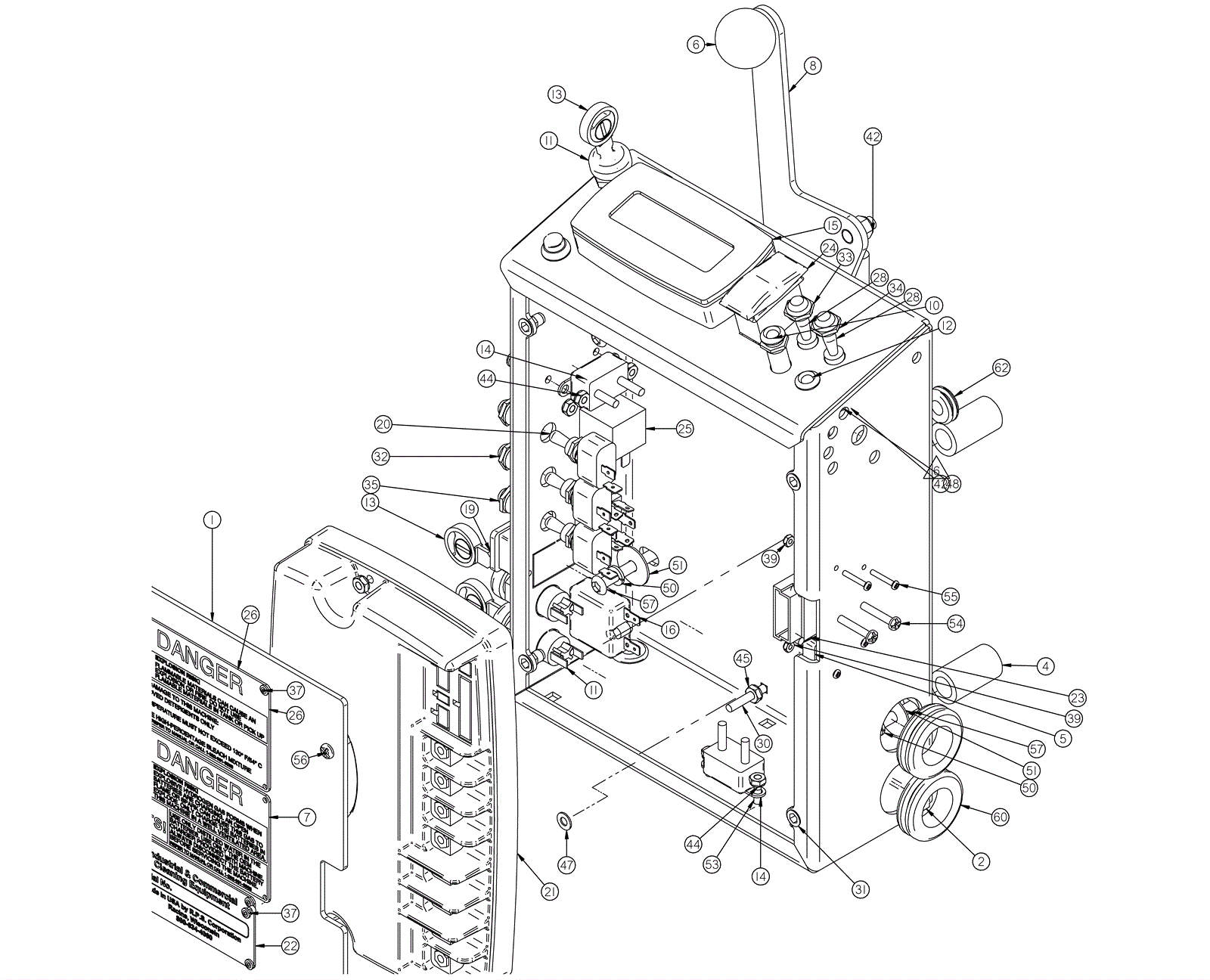

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
202-6033
|
Cover, Control Panel, Traction |
1 |
|
|
2 |
202-6055
|
Box, Control Panel |
1 |
|
|
3 |
202-6079
|
Lift Cable,Squeegee,Black 29 inch |
1 |
|
|
4 |
202-3468
|
Spacer |
4 |
|
|
5 |
202-0721
|
Microswitch |
2 |
|
|
6 |
202-0515
|
Solution flow control knob |
1 |
|
|
7 |
202-5397
|
24V battery warning plate |
1 |
|
|
8 |
202-7050
|
Lever, Squeegee Lift |
1 |
|
|
9 |
202-1181
|
Washer 1/2 flat bronze |
2 |
|
|
10 |
202-0832
|
Full recovery indicator (red) |
1 |
|
|
11 |
202-2300
|
Key switch with key entry (red) and ring (black) |
3 |
|
|
12 |
202-7203
|
Light,24V,Green,Bulb Style |
1 |
|
|
13 |
991-1634
|
Key (pkg of 2) |
3 |
|
|
14 |
202-2052
|
15amp circuit breaker |
2 |
|
|
15 |
202-1317
|
LCD window display |
1 |
|
|
16 |
202-7595
|
Breaker,4a |
1 |
|
|
17 |
202-7693
|
Switch,Micro |
1 |
|
|
18 |
202-1992
|
Toggle switch |
1 |
|
|
19 |
202-5155
|
Hour meter |
1 |
|
|
20 |
202-0097
|
Toggle switch |
1 |
|
|
21 |
202-1369
|
Main controller |
1 |
|
|
22 |
202-0720
|
Serial number plate |
1 |
|
|
23 |
991-9284
|
50amp charger plug SB50 with pins (red) |
1 |
|
|
24 |
202-0369
|
2 position rocker switch |
1 |
|
|
25 |
202-0348
|
15amp relay |
1 |
|
|
26 |
202-0675
|
Detergent warning plate |
1 |
|
|
27 |
202-0097
|
Toggle switch |
2 |
|
|
28 |
202-9604
|
Toggle switch |
2 |
|
|
29 |
202-0879
|
Push button switch |
1 |
|
|
32 |
202-1866
|
Toggle switch protective boot (green) |
1 |
|
|
33 |
202-1865
|
Toggle switch protective boot (blue) |
2 |
|
|
34 |
202-1355
|
Toggle switch protective boot (black) |
1 |
|
|
35 |
202-3465
|
Toggle switch protective boot (orange) |
1 |
|
|
36 |
202-9214
|
Boot,Toggle Switch,Purple |
1 |
|
|
37 |
202-3315
|
Blind rivet |
8 |
|
|
38 |
202-2210
|
Washer 3/8 x 3/4 flat nylon |
3 |
|
|
39 |
999-0295
|
Nut 4-40 nylon insert lock stainless steel |
6 |
|
|
40 |
999-0357
|
Nut 8-32 nylon insert lock stainless steel |
2 |
|
|
41 |
999-0294
|
Nut 1/4-20 hex nylon lock type NE stainless steel |
1 |
|
|
42 |
999-0423
|
Nut 5/16-18 nylon insert lock stainless steel |
3 |
|
|
43 |
999-1482
|
Nut 3/8-16 nylon lock stainless steel |
1 |
|
|
44 |
999-1464
|
Nut 8-32 keps lock with external tooth lockwasher ss |
5 |
|
|
45 |
202-2067
|
Nut 10-32 keps |
4 |
|
|
46 |
999-0266
|
Washer #8 SAE flat stainless steel |
4 |
|
|
47 |
999-0998
|
Washer #10 flat stainless steel |
2 |
|
|
48 |
999-0549
|
Washer 5/16 x 3/4 SAE flat stainless steel |
4 |
|
|
49 |
999-0617
|
Washer 3/8 x 1 flat stainless steel |
1 |
|
|
50 |
999-0632
|
Washer 1/4 split lock stainless steel |
4 |
|
|
51 |
999-1288
|
Washer 1/4 x 1 OD fender stainless steel |
4 |
|
|
52 |
999-1446
|
Washer 3/8 x 1 1/2 fender stainless steel |
2 |
|
|
53 |
999-0916
|
Screw 8-32 x 1/2 pan head phillips stainless steel |
5 |
|
|
54 |
999-1574
|
Screw 8-32 x 1 pan head phillips stainless steel |
2 |
|
|
55 |
202-2371
|
Screw 4-40 x 3/4 round pan head |
6 |
|
|
56 |
202-2122
|
Screw 10-32 x 5/8 inch phillips pan head |
4 |
|
|
57 |
999-1852
|
Screw 1/4-20 x 2 button head socket stainless steel |
4 |
|
|
58 |
999-1401
|
Bolt 1/4-20 x 1 carriage head stainless steel |
1 |
|
|
59 |
999-1401
|
Bolt 1/4-20 x 1 carriage head stainless steel |
1 |
|
|
