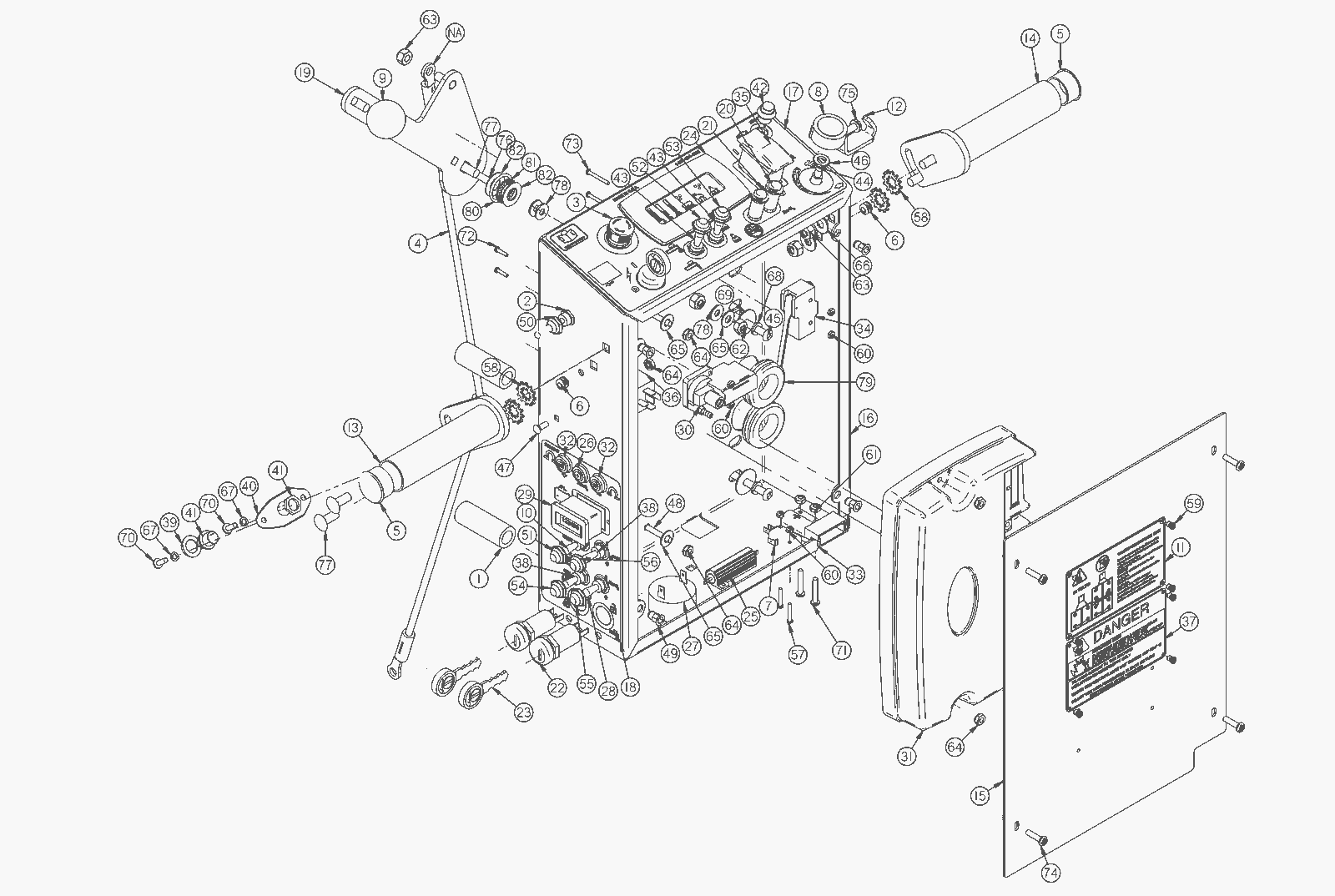

Central Command Assembly (after s/n 97255)

#PartDescription ReqNotesAvailability
1 202-6053 Spacer, 2-1/4 inch Lg 4
2 202-5396 Toggle switch 1
3 202-4191 Emergency stop button 1
4 202-6430 Lift Cable,Squeegee,Black 31 inch 1
5 202-2252 End cap 2
6 202-1587 LED GROMMET 2
7 202-0721 Microswitch 1
8 202-0989 Control knob with washer (red) 1
9 202-0515 Solution flow control knob 1
10 202-3340 Toggle switch 1
11 202-5397 24V battery warning plate 1
12 202-3436 Hook 1
13 202-6994 Handlebar, Adjustable, LH 1
14 202-6995 Handlebar, Adjustable, RH 1
15 202-7014 Cover, Control Panel 1
16 202-7015 Control Panel, LCD Screen, Black 1
17 202-7016 Decal, Control Panel, Top Carbon/Mini HD 1
18 202-7017 Decal, Control Panel, Side 1
19 202-7050 Lever, Squeegee Lift 1
20 202-0831 Low solution indicator (amber) 1
21 202-0832 Full recovery indicator (red) 1
22 202-2300 Key switch with key entry (red) and ring (black) 3
23 991-1634 Key (pkg of 2) 3
24 202-1317 LCD window display 1
25 202-7287 Resistor,Wirewound,8 OHM,50W 1
26 202-7595 Breaker,4a 1
27 202-3377 Central command alarm 1
28 202-1992 Toggle switch 1
29 202-5155 Hour meter 1
30 202-1908 Vacuum shut-off switch 1
31 202-1369 Main controller 1
32 202-2499 15amp fuse 2
33 991-9284 50amp charger plug SB50 with pins (red) 1
34 202-0192 Lift limit switch 1
35 202-0369 2 position rocker switch 1
36 202-0348 15amp relay 1
37 202-0675 Detergent warning plate 1
38 202-0097 Toggle switch 2
39 202-3427 Button cover 2
40 202-0869 Switch cover 4
41 202-0879 Push button switch 4
42 202-0879 Push button switch 1
43 202-0521 Toggle switch 2
44 202-0535 Speed control potentiometer 1
45 202-9603 Washer 1/4 - 20x2-3/4 4
46 202-9136 Nut,Hex,3/8-32 inch,Zinc 1
47 202-3302 Bolt 10-32 x 1/2 carriage head stainless steel 1
48 999-1570 Bolt 10-32 x 1 1/4 round head carriage stainless steel 2
49 202-3601 Nut #10-32 hex crimp 4
50 202-1864 Toggle switch protective boot (red) 1
51 202-1866 Toggle switch protective boot (green) 1
52 202-1865 Toggle switch protective boot (blue) 1
53 202-1355 Toggle switch protective boot (black) 1
54 202-3465 Toggle switch protective boot (orange) 1
55 202-9214 Boot,Toggle Switch,Purple 1
56 202-3466 Toggle switch protective boot (light blue) 1
57 202-2371 Screw 4-40 x 3/4 round pan head 2
58 202-1133 Washer 5/16 internal/external star 4
59 202-3315 Blind rivet 12
60 999-0295 Nut 4-40 nylon insert lock stainless steel 6
61 999-0357 Nut 8-32 nylon insert lock stainless steel 2
62 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel 5
63 999-0423 Nut 5/16-18 nylon insert lock stainless steel 6
64 202-2067 Nut 10-32 keps 5
65 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel 3
66 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel 4
67 999-0998 Washer #10 flat stainless steel 8
68 999-0632 Washer 1/4 split lock stainless steel 4
69 999-1288 Washer 1/4 x 1 OD fender stainless steel 4
70 999-0916 Screw 8-32 x 1/2 pan head phillips stainless steel 8
71 999-1574 Screw 8-32 x 1 pan head phillips stainless steel 2
72 202-2370 Screw 4-40 x 1/2 Phillips pan head stainless steel 2
73 999-1463 Screw 4-40 x 1 pan head phillips stainless steel 2
74 999-1044 Screw 10-32 x 3/4 pan head phillips stainless steel 4
75 999-0567 Screw 1/4-20 x 5/8 pan head phillips stainless steel 1
76 999-1401 Bolt 1/4-20 x 1 carriage head stainless steel 1
77 999-0967 Bolt 5/16-18 x 3/4 carriage head stainless steel 5
78 999-0563 Washer 1/4 x 1/16 flat nylon 3
80 202-4245 Thrust bearing 1
81 202-5232 Roller thrust bearing 1
82 202-5233 Thrust bearing washer 2
