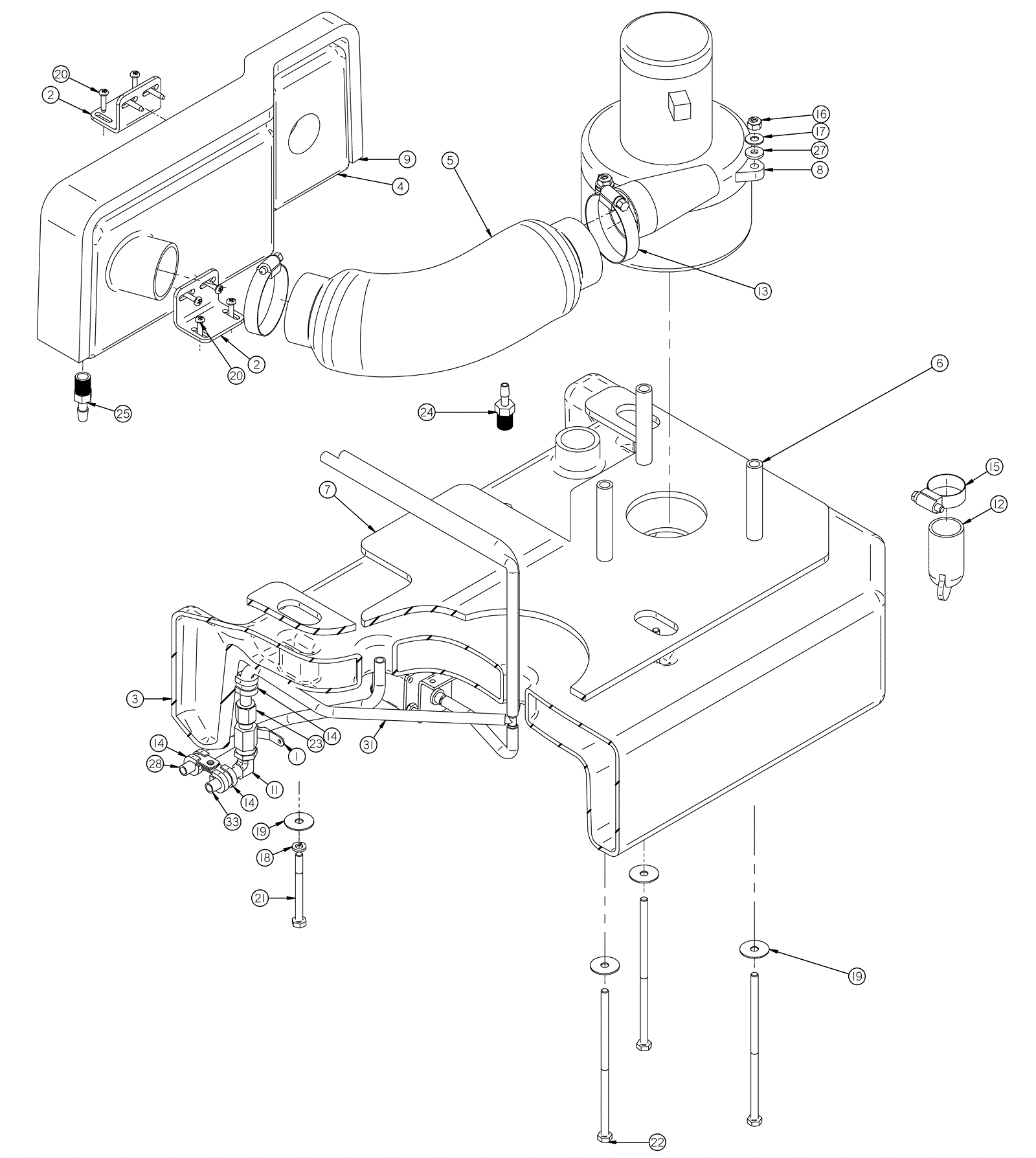

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
202-5483
|
1/4 inch two way ball valve brass |
1 |
|
|
2 |
202-6343
|
Bracket, Baffle |
2 |
|
|
3 |
202-6349
|
Bandeau, Plastic, Black Small Tank |
1 |
|
|
4 |
202-6352
|
Sound Deadening Box, Yellow |
1 |
|
|
5 |
202-6394
|
Muffler, Vac Fan |
1 |
|
|
6 |
202-6395
|
Spacers,Plastic,3 inch |
3 |
|
|
7 |
202-6405
|
Gasket Set, 16/17 Gal |
1 |
|
|
8 |
202-6421
|
Motor,Vacuum, 24V, 3 Stage with Connector |
1 |
|
|
9 |
202-6429
|
Vac Muffler Gasket |
1 |
|
|
10 |
202-3503
|
24V soap pump |
1 |
|
|
11 |
202-0686
|
90 degree barb 1/4 x 1/4 |
1 |
|
|
12 |
202-1916
|
Unloader valve |
1 |
|
|
13 |
997-2011
|
Hose clamp |
2 |
|
|
14 |
202-9128
|
Clamp,Loop,1/2 inch,Rubber |
3 |
|
|
15 |
202-2066
|
Hose clamp |
1 |
|
|
16 |
999-0294
|
Nut 1/4-20 hex nylon lock type NE stainless steel |
3 |
|
|
17 |
999-0335
|
Washer 1/4 x 5/8 SAE flat stainless steel |
3 |
|
|
18 |
999-0632
|
Washer 1/4 split lock stainless steel |
3 |
|
|
19 |
999-1288
|
Washer 1/4 x 1 OD fender stainless steel |
6 |
|
|
20 |
999-0870
|
Screw 8 x 3/4 pan head phillips stainless steel |
8 |
|
|
21 |
202-4235
|
Aerosol rust stopper 1/4 inch - 20 x 2.75 inch |
3 |
|
|
22 |
202-4236
|
Areosol rust stopper 1/4 inch - 20 x 6.0 inch (black) |
3 |
|
|
23 |
202-9475
|
Fitting, 1/4 NPTF x 3/16 Barb |
1 |
|
|
24 |
202-9488
|
Fitting,1/4 inchNPTx1/8 inchBarb |
1 |
|
|
25 |
202-9489
|
Fitting,1/4 inchNPTx1/4 inchBarb |
1 |
|
|
26 |
202-9499
|
Tee, 1/4 inch, Plastic |
1 |
|
|
27 |
202-1986
|
Washer 3/8 x 1-1/8 x 3/32 neoprene thread |
3 |
|
|
28 |
202-4225
|
Hose |
1 |
|
|
33 |
202-9589
|
Hose 1/4 inch x 5 foot (green) |
1 |
|
|
