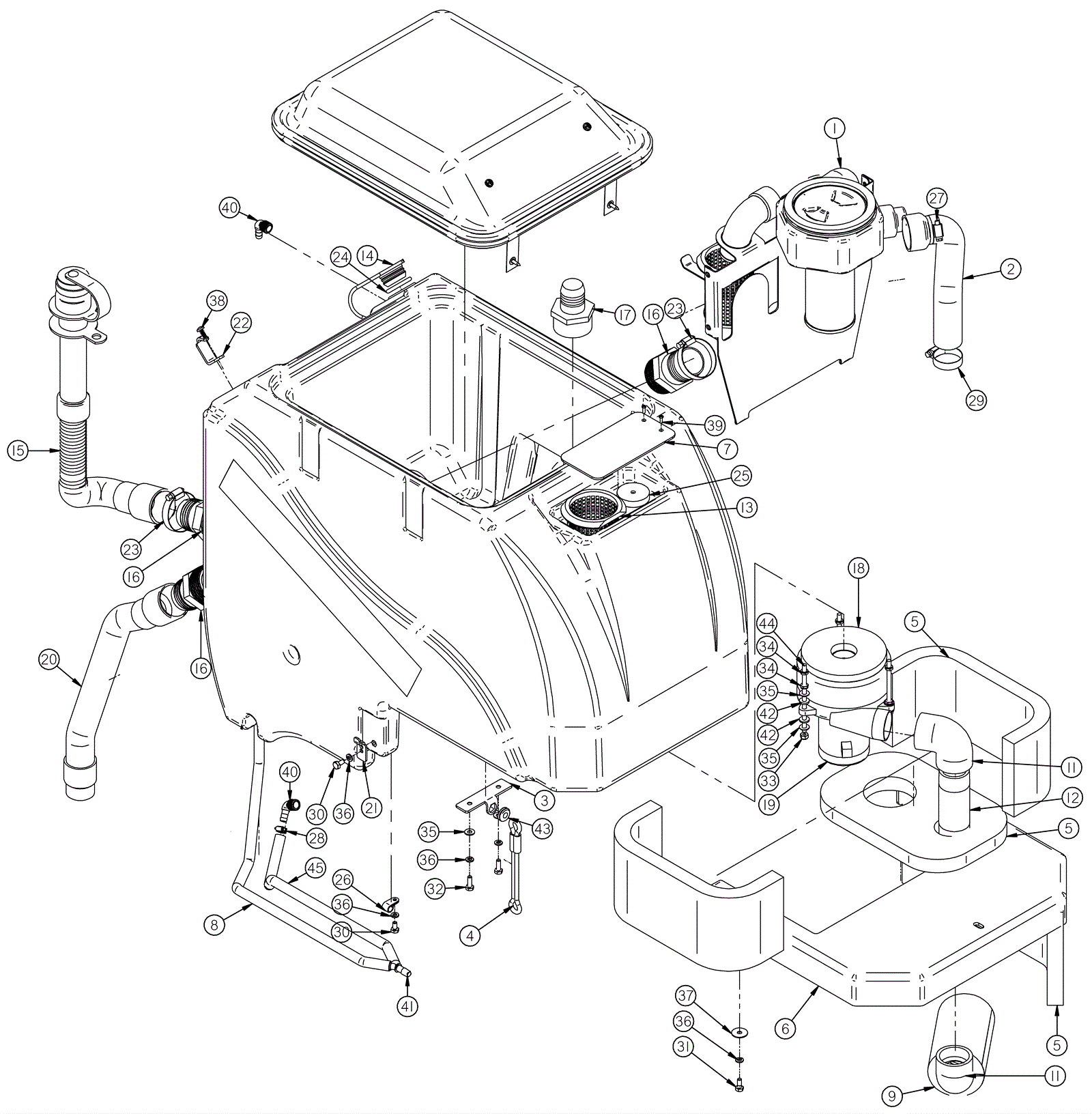

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
202-5990
|
Hose, Tank to baffel |
1 |
|
|
2 |
202-9597
|
Clean air intake hose |
1 |
|
|
3 |
202-5996
|
Bracket, Tank Strap |
1 |
|
|
4 |
202-9599
|
Tank strap |
1 |
|
|
5 |
202-5367
|
Vacuum motor insulation |
1 |
|
|
6 |
202-5368
|
Disc cover |
1 |
|
|
7 |
202-6016
|
Curtain, Splash |
1 |
|
|
8 |
202-5372
|
Sight tube hose |
1 |
|
|
9 |
202-5374
|
Muffler |
2 |
|
|
10 |
202-9600
|
Battery configuration plate |
1 |
|
|
11 |
202-5376
|
1 1/2 inch elbow |
2 |
|
|
12 |
202-5377
|
1 1/2 inch pipe |
1 |
|
|
13 |
202-9601
|
Screen strainer 4-1/4 inch |
1 |
|
|
14 |
202-3373
|
Drain hose cap |
1 |
|
|
15 |
202-3582
|
Drain hose assembly |
1 |
|
|
16 |
202-2025
|
Hosebarb |
3 |
|
|
17 |
202-2118
|
Hosebarb |
1 |
|
|
18 |
202-1917
|
Vacuum motor gasket |
1 |
|
|
19 |
991-1210
|
24V 3 stage vacuum motor tangential |
1 |
|
|
20 |
202-3023
|
Squeegee vacuum hose |
1 |
|
|
21 |
202-3044
|
Clip |
2 |
|
|
22 |
202-3436
|
Hook |
1 |
|
|
23 |
997-2011
|
Hose clamp |
2 |
|
|
24 |
202-4106
|
O-ring |
1 |
|
|
25 |
202-4200
|
Fill hose |
1 |
|
|
26 |
202-2189
|
Loop clamp rubber |
1 |
|
|
27 |
202-3256
|
Hose clamp |
1 |
|
|
28 |
202-3238
|
Hose clamp |
1 |
|
|
29 |
202-5299
|
Hose clamp |
1 |
|
|
30 |
999-0644
|
Bolt 1/4-20 x 1/2 hex head stainless steel |
3 |
|
|
31 |
999-0633
|
Bolt 1/4-20 x 5/8 hex head stainless steel |
3 |
|
|
32 |
999-0334
|
Bolt 1/4-20 x 3/4 inch hex head stainless steel |
2 |
|
|
33 |
999-0294
|
Nut 1/4-20 hex nylon lock type NE stainless steel |
3 |
|
|
34 |
999-1466
|
Nut 1/4-20 lock with external toothed lockwasher SS |
6 |
|
|
35 |
999-0335
|
Washer 1/4 x 5/8 SAE flat stainless steel |
8 |
|
|
36 |
999-0632
|
Washer 1/4 split lock stainless steel |
8 |
|
|
37 |
999-1288
|
Washer 1/4 x 1 OD fender stainless steel |
3 |
|
|
38 |
202-2918
|
Screw 1/4-20 x 3/4 self tapping |
1 |
|
|
39 |
999-1882
|
Screw #6 x 1/2 inch pan head phillips stainless steel |
2 |
|
|
40 |
202-5379
|
3/8 inch elbow |
2 |
|
|
41 |
202-5380
|
3/8 inch fitting |
1 |
|
|
42 |
202-1986
|
Washer 3/8 x 1-1/8 x 3/32 neoprene thread |
6 |
|
|
43 |
202-3348
|
Rubber grommet |
1 |
|
|
44 |
202-0898
|
Stud 1/4-20 x 5 threaded stainless steel |
3 |
|
|
45 |
202-5382
|
3/8 inch hose |
1 |
|
|
