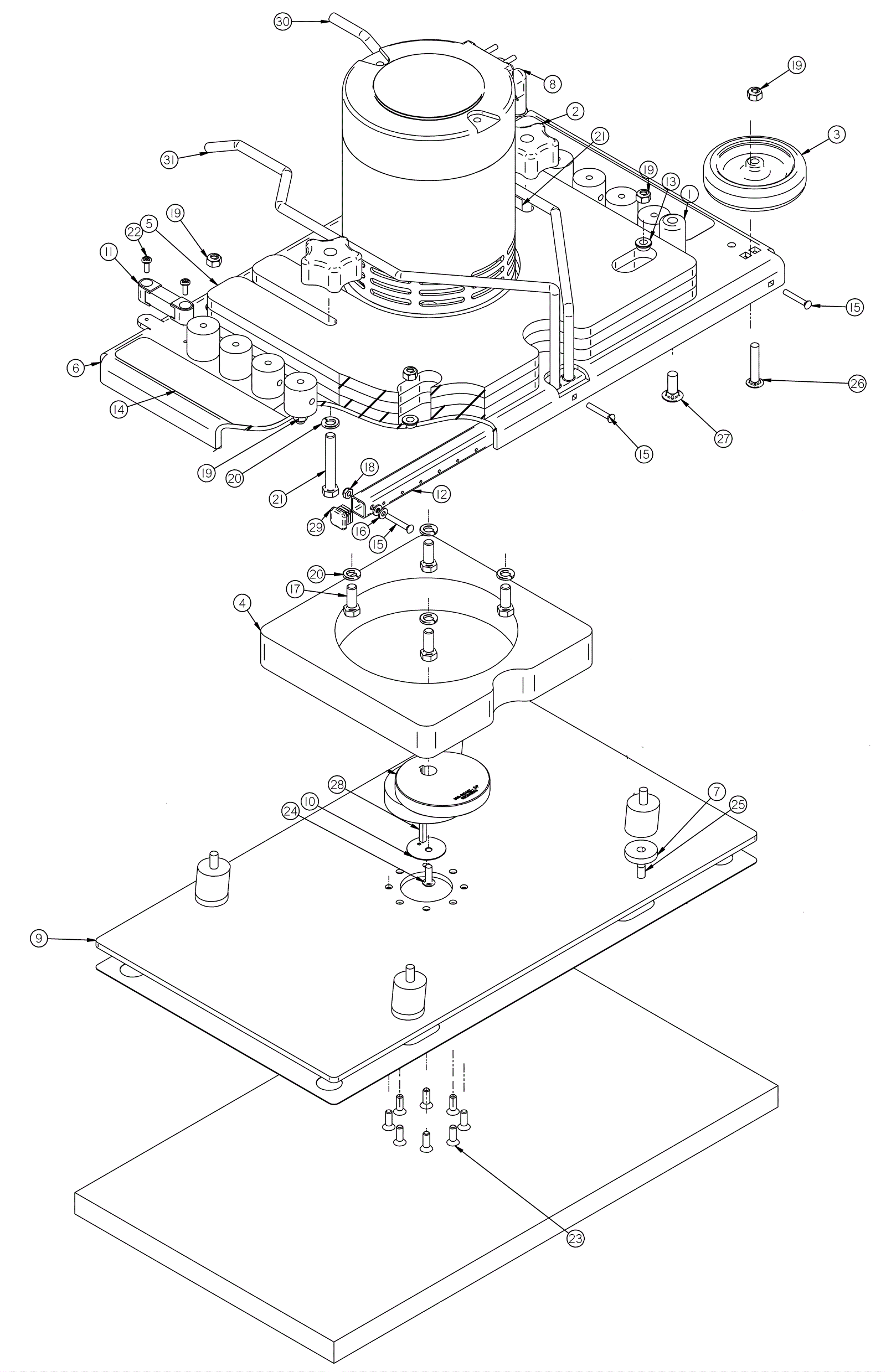

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
202-5317
|
Female stud |
2 |
|
|
2 |
202-5078
|
Star knob |
2 |
|
|
3 |
202-5079
|
4 inch wheel |
2 |
|
|
4 |
202-6324
|
Gasket, Bearing, 1-1/2 inch |
1 |
|
|
5 |
202-6410
|
Weight, 16.5 Lbs, Green |
3 |
|
|
6 |
202-9595
|
24 inch Square head deck |
1 |
|
|
7 |
202-4230
|
Spacer |
4 |
|
|
8 |
202-2961
|
Terminal cover (black) |
2 |
|
|
9 |
202-5528
|
24 inch aluminum pad driver |
1 |
|
|
10 |
202-5084
|
Crush washer |
1 |
|
|
11 |
202-5098
|
2 inch bolt on level |
2 |
|
|
12 |
202-5530
|
24 inch feed tube kit |
1 |
|
|
13 |
202-7656
|
Bushing,Flanged,5/16 inchIDx1/2 inchODx 1/4 inch, Hardened S |
4 |
|
|
14 |
202-9089
|
Decal, Edge, 24 inch |
2 |
|
|
15 |
999-1570
|
Bolt 10-32 x 1 1/4 round head carriage stainless steel |
3 |
|
|
16 |
999-1874
|
Washer #10 nylon flat |
6 |
|
|
17 |
999-0562
|
Bolt 3/8-16 x 1 hex head stainless steel |
4 |
|
|
18 |
999-0086
|
Nut 10-32 nylon insert lock zinc plated |
3 |
|
|
19 |
999-0423
|
Nut 5/16-18 nylon insert lock stainless steel |
16 |
|
|
20 |
999-0659
|
Washer 3/8 medium split lock stainless steel |
6 |
|
|
22 |
999-0916
|
Screw 8-32 x 1/2 pan head phillips stainless steel |
4 |
|
|
23 |
999-0457
|
Screw 1/4-20 x 3/4 flat head phillips stainless steel |
8 |
|
|
24 |
999-0867
|
Bolt 1/4-20 x 3/4 button head socket cap stainless steel |
1 |
|
|
25 |
202-2831
|
Screw 5/16-18 x 3/4 flat head socket stainless steel |
4 |
|
|
26 |
202-3077
|
Carriage bolt 5/16 x 1-1/2 stainless steel |
2 |
|
|
27 |
202-2832
|
Bolt 3/8 - 16 x 1 carriage head stainless steel |
2 |
|
|
28 |
202-0140
|
Steering shaft key |
1 |
|
|
29 |
202-9545
|
Plug,Square,3/4 inch,Black |
2 |
|
|
30 |
202-4225
|
Hose |
1 |
|
|
