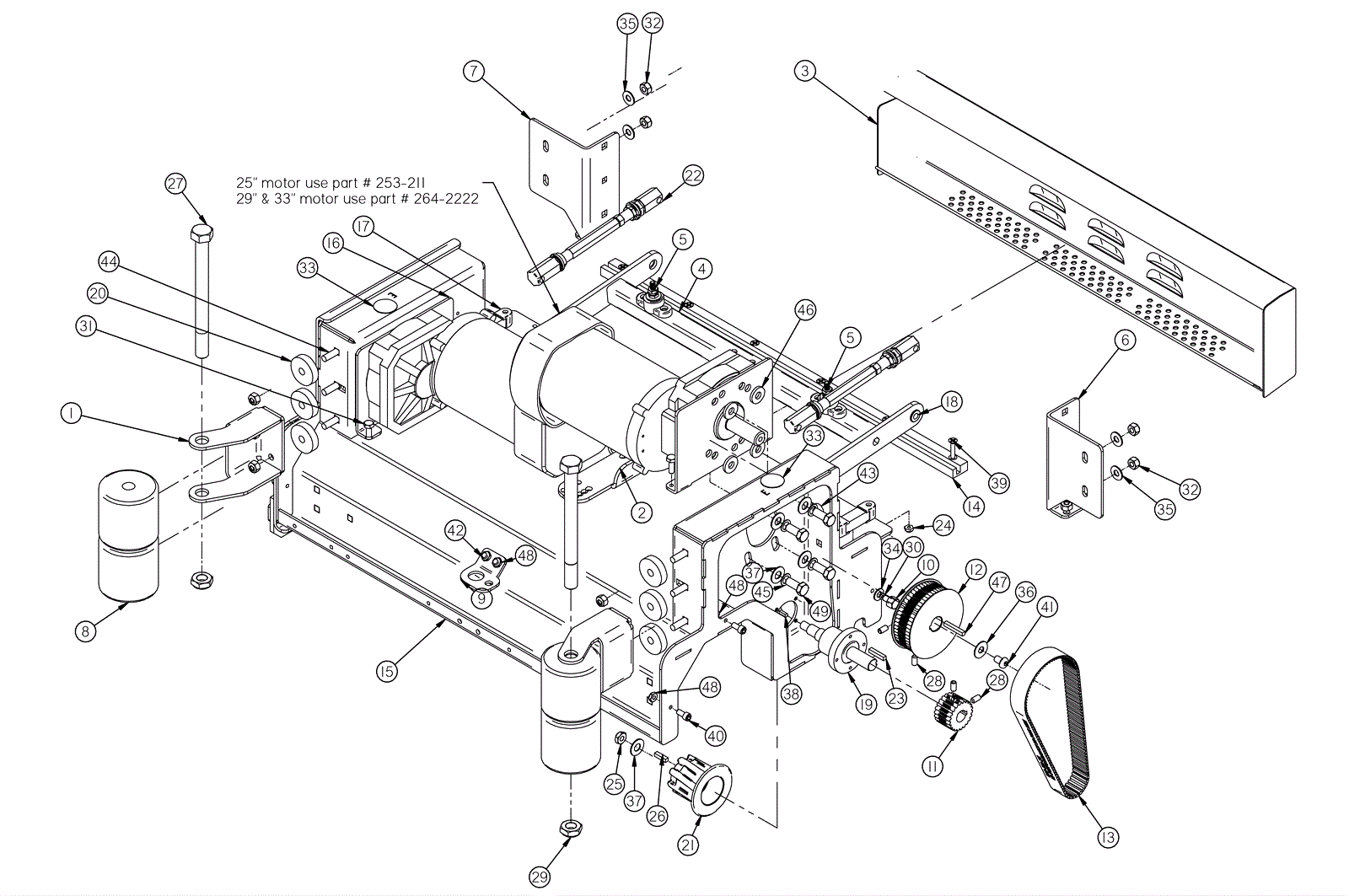

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
202-6005
|
Bracket, Roller |
2 |
|
|
2 |
202-6095
|
Bracket, Deck Lifting |
1 |
|
|
3 |
202-6097
|
Hopper, 25 inch |
1 |
|
|
4 |
202-6106
|
Arm, Lateral, Cylindrical |
1 |
|
|
5 |
202-6396
|
Power Post, Black, 1/4 Terminal |
2 |
|
|
6 |
202-6434
|
Bracket, Cylindrical Lifting, LH, 24 inch |
1 |
|
|
7 |
202-6435
|
Bracket, Cylindrical Lifting, RH, 24 |
1 |
|
|
8 |
202-0756
|
Guide roller |
4 |
|
|
9 |
202-4022
|
Quick disconnect bracket |
1 |
|
|
10 |
202-4023
|
Thumb screw |
2 |
|
|
11 |
202-7058
|
Sprocket, Timing, 26 Tooth |
2 |
|
|
12 |
202-7059
|
Sprocket, Timing, 56 Tooth |
2 |
|
|
13 |
202-7060
|
Belt, Cylindrical |
2 |
|
|
14 |
202-7061
|
Hopper Rail, 25 inch |
1 |
|
|
15 |
202-7069
|
Brushhead, Cylindrical, 25 inch |
1 |
|
|
16 |
202-7071
|
Bracket, Motor Adjustment |
2 |
|
|
17 |
202-5098
|
2 inch bolt on level |
2 |
|
|
18 |
202-7656
|
Bushing,Flanged,5/16 inchIDx1/2 inchODx 1/4 inch, Hardened S |
4 |
|
|
19 |
202-3146
|
Bearing housing |
2 |
|
|
20 |
202-0151
|
Grommet |
6 |
|
|
21 |
202-8374
|
Driver, Cylindrical Spiral, 8 Spline, Alum HC W/Gasket |
2 |
|
|
22 |
202-4224
|
Adjustable lateral arm |
2 |
|
|
23 |
202-0847
|
Square keyway |
2 |
|
|
24 |
999-1269
|
Nut 10-32 nylon insert jam stainless steel |
6 |
|
|
25 |
999-1151
|
Nut 3/8-24 nylon insert jam lock stainless steel |
2 |
|
|
26 |
202-3153
|
Square keyway |
2 |
|
|
27 |
999-6723
|
Bolt 5/8-11 x 7 hex head grade 5 zinc plated |
2 |
|
|
28 |
999-1468
|
Screw 1/4-20 x 1/2 knurled point set alloy steel |
8 |
|
|
29 |
999-0968
|
Nut 5/8-11 nylon insert jam lock zinc plated |
2 |
|
|
30 |
202-4039
|
O-ring |
2 |
|
|
31 |
999-0334
|
Bolt 1/4-20 x 3/4 inch hex head stainless steel |
4 |
|
|
32 |
999-0423
|
Nut 5/16-18 nylon insert lock stainless steel |
14 |
|
|
33 |
202-2244
|
Hole plug 7/8 |
2 |
|
|
34 |
999-0335
|
Washer 1/4 x 5/8 SAE flat stainless steel |
2 |
|
|
35 |
999-0549
|
Washer 5/16 x 3/4 SAE flat stainless steel |
4 |
|
|
36 |
999-0549
|
Washer 5/16 x 3/4 SAE flat stainless steel |
2 |
|
|
37 |
999-0617
|
Washer 3/8 x 1 flat stainless steel |
10 |
|
|
38 |
999-1009
|
Screw 10-32 x 1/2 flat head phillips stainless steel |
8 |
|
|
39 |
999-1471
|
Screw #10-21 x 1 flat head phillips stainless steel |
6 |
|
|
40 |
202-3157
|
Screw 1/4 x 1/4 inch socket head stainless steel |
3 |
|
|
41 |
999-1459
|
Screw 5/16-18 x 1/2 button socket head stainless steel |
2 |
|
|
43 |
999-0967
|
Bolt 5/16-18 x 3/4 carriage head stainless steel |
8 |
|
|
44 |
999-9066
|
Bolt 5/16-18 x 1 carriage head stainless steel |
6 |
|
|
45 |
202-3158
|
Washer 3/8 inch serrated stainless steel |
8 |
|
|
46 |
999-0120
|
Washer 3/8 SAE flat |
8 |
|
|
47 |
202-0140
|
Steering shaft key |
2 |
|
|
48 |
999-0304
|
Nut 1/4-20 nylon lock jam stainless steel |
5 |
|
|
49 |
999-1469
|
Screw 3/8-24 x 7/8 hex head zinc plated |
8 |
|
|
