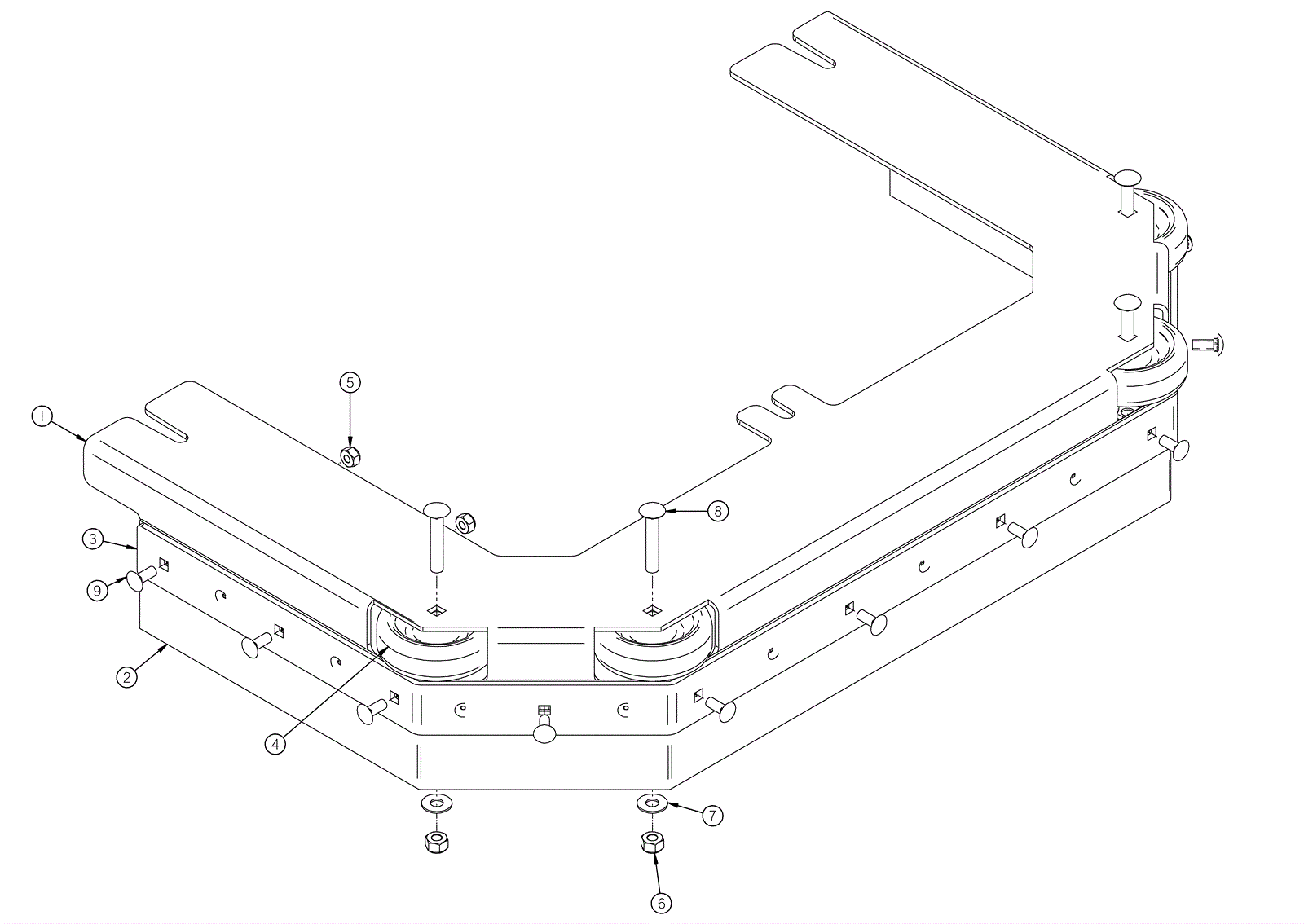

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
202-6002
|
Shroud, 26 inch |
1 |
|
|
2 |
202-6014
|
Curtain, Shroud, 26 inch |
1 |
|
|
3 |
202-6015
|
Band, Shroud, 26 inch |
1 |
|
|
4 |
202-5405
|
3 inch wheel |
4 |
|
|
5 |
999-0294
|
Nut 1/4-20 hex nylon lock type NE stainless steel |
12 |
|
|
6 |
999-0423
|
Nut 5/16-18 nylon insert lock stainless steel |
4 |
|
|
7 |
999-0549
|
Washer 5/16 x 3/4 SAE flat stainless steel |
4 |
|
|
8 |
202-3077
|
Carriage bolt 5/16 x 1-1/2 stainless steel |
4 |
|
|
9 |
202-2851
|
Bolt 1/4-20 x 5/8 inch carriage head stainless steel |
12 |
|
|
