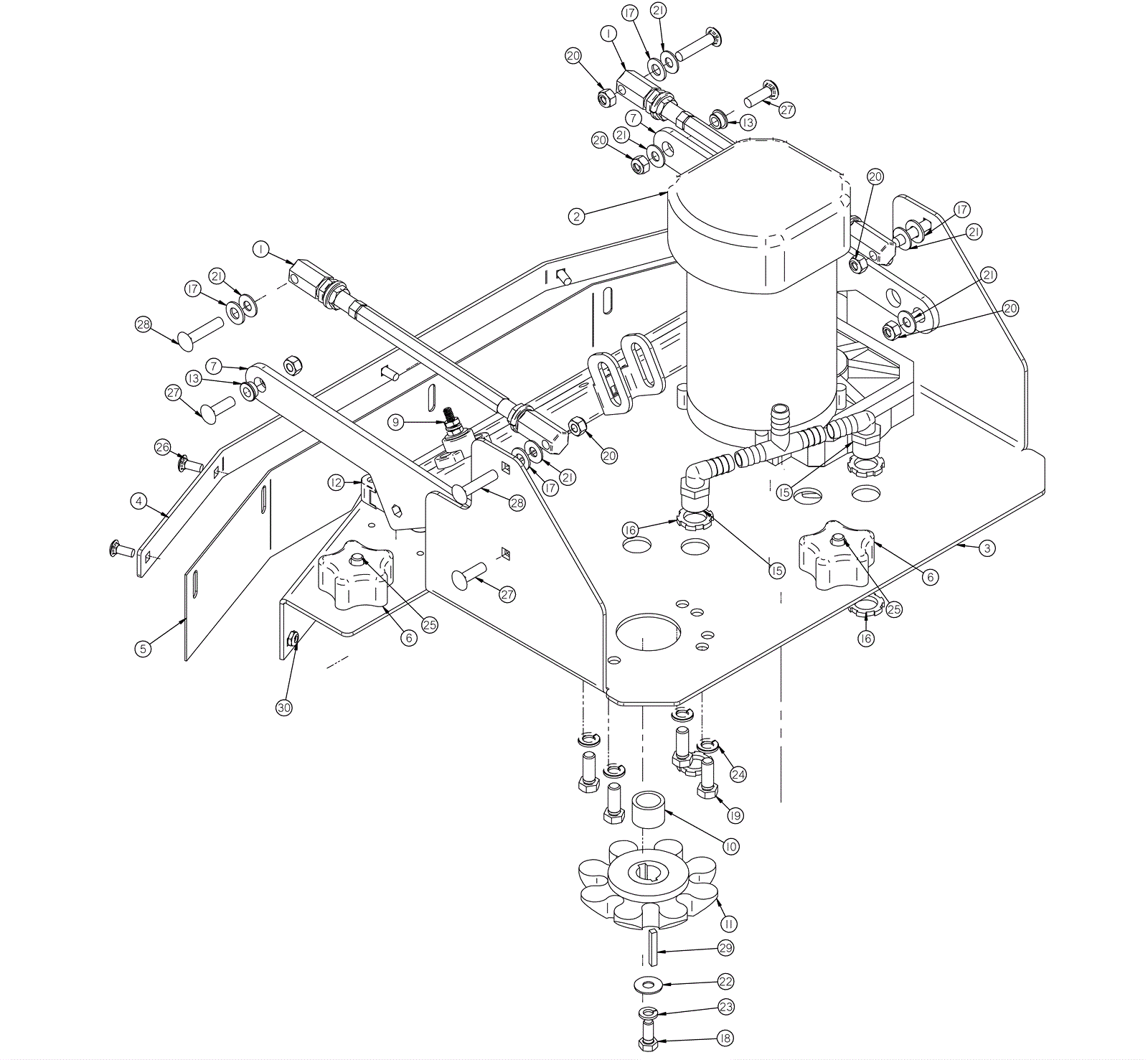

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
202-5800
|
Body, Adjustable Lateral Arm |
2 |
|
|
2 |
202-5443
|
24V 3/4HP 200RPM brush motor |
2 |
|
|
3 |
202-5993
|
Deck, Dick, 26 inch, SS |
1 |
|
|
4 |
202-6010
|
Band, Curtain, 26 inch |
1 |
|
|
5 |
202-6013
|
Curtain, Disk Deck, 26 inch |
1 |
|
|
6 |
202-5078
|
Star knob |
3 |
|
|
7 |
202-6105
|
Arm, Scrubdeck Lift, Disk |
1 |
|
|
8 |
202-6396
|
Power Post, Black, 1/4 Terminal |
1 |
|
|
9 |
202-6397
|
Power Post, Red, 1/4 Terminal |
1 |
|
|
10 |
202-6418
|
Spacer, Driver |
2 |
|
|
11 |
202-7038
|
Driver, Brush, Rounded Tooth, Aluminum w/ Insert, Hard coate |
2 |
|
|
12 |
202-5098
|
2 inch bolt on level |
2 |
|
|
13 |
202-7656
|
Bushing,Flanged,5/16 inchIDx1/2 inchODx 1/4 inch, Hardened S |
4 |
|
|
14 |
202-0332
|
1/2 inch barbed tee |
1 |
|
|
15 |
202-0333
|
Elbow barb |
2 |
|
|
16 |
999-0330
|
Nut 1/2-13 acorn brass |
6 |
|
|
17 |
202-2210
|
Washer 3/8 x 3/4 flat nylon |
4 |
|
|
18 |
999-0556
|
Bolt 5/16-18 x 3/4 hex head stainless steel |
2 |
|
|
19 |
999-0562
|
Bolt 3/8-16 x 1 hex head stainless steel |
8 |
|
|
20 |
999-0423
|
Nut 5/16-18 nylon insert lock stainless steel |
8 |
|
|
21 |
999-0549
|
Washer 5/16 x 3/4 SAE flat stainless steel |
8 |
|
|
22 |
999-0549
|
Washer 5/16 x 3/4 SAE flat stainless steel |
2 |
|
|
23 |
999-0553
|
Washer 5/16 medium split lock stainless steel |
2 |
|
|
24 |
999-0659
|
Washer 3/8 medium split lock stainless steel |
11 |
|
|
26 |
202-2851
|
Bolt 1/4-20 x 5/8 inch carriage head stainless steel |
5 |
|
|
27 |
999-9066
|
Bolt 5/16-18 x 1 carriage head stainless steel |
4 |
|
|
28 |
999-1370
|
Bolt 5/16-18 x 1 1/2 carriage head stainless steel |
4 |
|
|
29 |
202-0140
|
Steering shaft key |
2 |
|
|
30 |
999-0304
|
Nut 1/4-20 nylon lock jam stainless steel |
5 |
|
|
