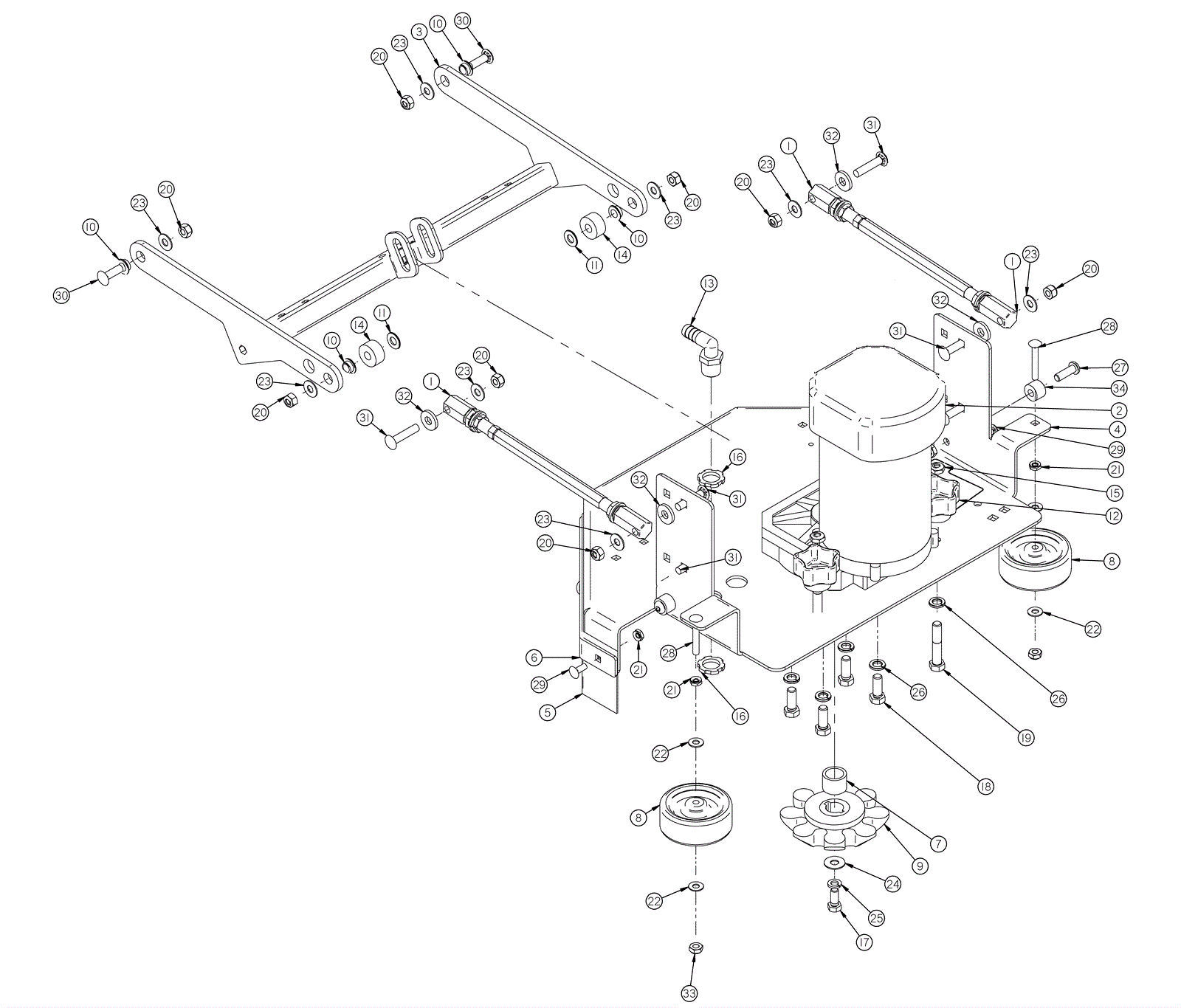

20 inch Disk Decks

#PartDescription ReqNotesAvailability
1 202-5800 Body, Adjustable Lateral Arm 2
2 202-5443 24V 3/4HP 200RPM brush motor 1
3 202-6105 Arm, Scrubdeck Lift, Disk 1
4 202-6186 Scrubdeck,Disk,20 inch, MS 1
5 202-4129 20 inch curtain 1
6 202-4127 20 inch curtain band 1
7 202-6418 Spacer, Driver 1
8 202-5405 3 inch wheel 2
9 202-7038 Driver, Brush, Rounded Tooth, Aluminum w/ Insert, Hard coate 1
10 202-1239 Flanged bearing 4
11 202-1181 Washer 1/2 flat bronze 2
12a 202-0809 Brass star knob 2
12b 991-2411 Brass star knob 2 (NON-OEM)
13 202-0333 Elbow barb 1
14 202-8691 Spacer,.38 inchIDx1 inchODx.50 inchThick 2
15 999-1151 Nut 3/8-24 nylon insert jam lock stainless steel 2
16 999-0330 Nut 1/2-13 acorn brass 4
17 999-0556 Bolt 5/16-18 x 3/4 hex head stainless steel 1
18 999-0562 Bolt 3/8-16 x 1 hex head stainless steel 4
19 999-1568 Screw 3/8-24 x 2 hex head stainless steel 2
20 999-0423 Nut 5/16-18 nylon insert lock stainless steel 8
21 999-1466 Nut 1/4-20 lock with external toothed lockwasher SS 7
22 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel 4
23 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel 8
24 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel 1
25 999-0553 Washer 5/16 medium split lock stainless steel 1
26 999-0659 Washer 3/8 medium split lock stainless steel 6
27 999-1507 Screw 5/16-18 x 1 button head socket stainless steel 2
28 999-1400 Screw 1/4-20 x 1 3/4 carriage head stainless steel 2
29 202-2851 Bolt 1/4-20 x 5/8 inch carriage head stainless steel 5
30 999-9066 Bolt 5/16-18 x 1 carriage head stainless steel 2
31 999-1370 Bolt 5/16-18 x 1 1/2 carriage head stainless steel 6
32 999-0120 Washer 3/8 SAE flat 4
33 999-1019 Nut 5/16-18 hex jam stainless steel 4
34 202-4123 Plastic spacer 2
