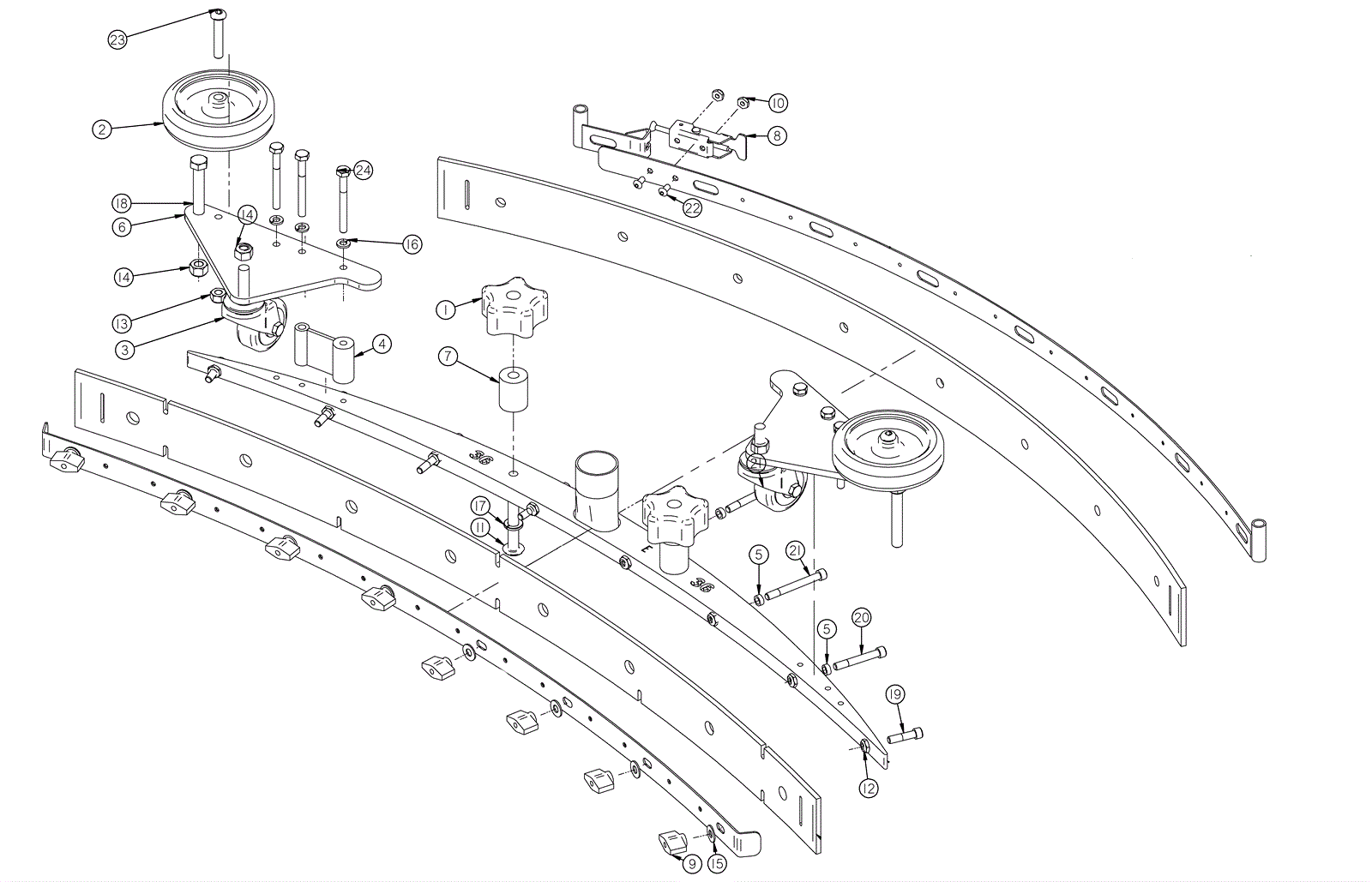

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
202-5078
|
Star knob |
2 |
|
|
2 |
202-5079
|
4 inch wheel |
2 |
|
|
3 |
202-3590
|
2 inch caster (gray) |
2 |
|
|
4 |
202-7598
|
Bracket, Band Holder |
2 |
|
|
5 |
202-7602
|
Spacer |
6 |
|
|
6 |
202-7610
|
Bracket, Squeegee Caster |
2 |
|
|
7 |
202-7619
|
Standoff, 1.25 inch |
2 |
|
|
8 |
202-2898
|
Latch |
1 |
|
|
9 |
202-0711
|
Clamping knob (pkg of 2) |
8 |
|
|
10 |
999-1269
|
Nut 10-32 nylon insert jam stainless steel |
2 |
|
|
11 |
999-1273
|
Screw 3/8-16 x 3 1/2 button head socket stainless steel |
2 |
|
|
12 |
999-0304
|
Nut 1/4-20 nylon lock jam stainless steel |
8 |
|
|
13 |
999-0423
|
Nut 5/16-18 nylon insert lock stainless steel |
2 |
|
|
14 |
999-1482
|
Nut 3/8-16 nylon lock stainless steel |
4 |
|
|
15 |
999-0335
|
Washer 1/4 x 5/8 SAE flat stainless steel |
8 |
|
|
16 |
999-0632
|
Washer 1/4 split lock stainless steel |
6 |
|
|
17 |
999-0659
|
Washer 3/8 medium split lock stainless steel |
2 |
|
|
18 |
202-3193
|
Bolt 3/8-16 x 3 inch hex head stainless steel |
2 |
|
|
19 |
202-9397
|
Screw,SHC,1/4-20x1 inch |
2 |
|
|
20 |
202-3211
|
Screw 1/4-20 x 1-3/4 inch socket stainless steel |
2 |
|
|
21 |
999-1839
|
Screw 1/4-20 x 2 1/4 socket cap stainless steel |
4 |
|
|
22 |
202-3197
|
Screw 10-32 x 3/8 inch button head socket stainless steel |
2 |
|
|
23 |
999-1913
|
Screw 5/16-18 x 1 3/4 button head socket cap stainless steel |
2 |
|
|
24 |
202-3198
|
Screw 1/4-20 x 2-1/2 inch hex head stainless steel |
6 |
|
|
