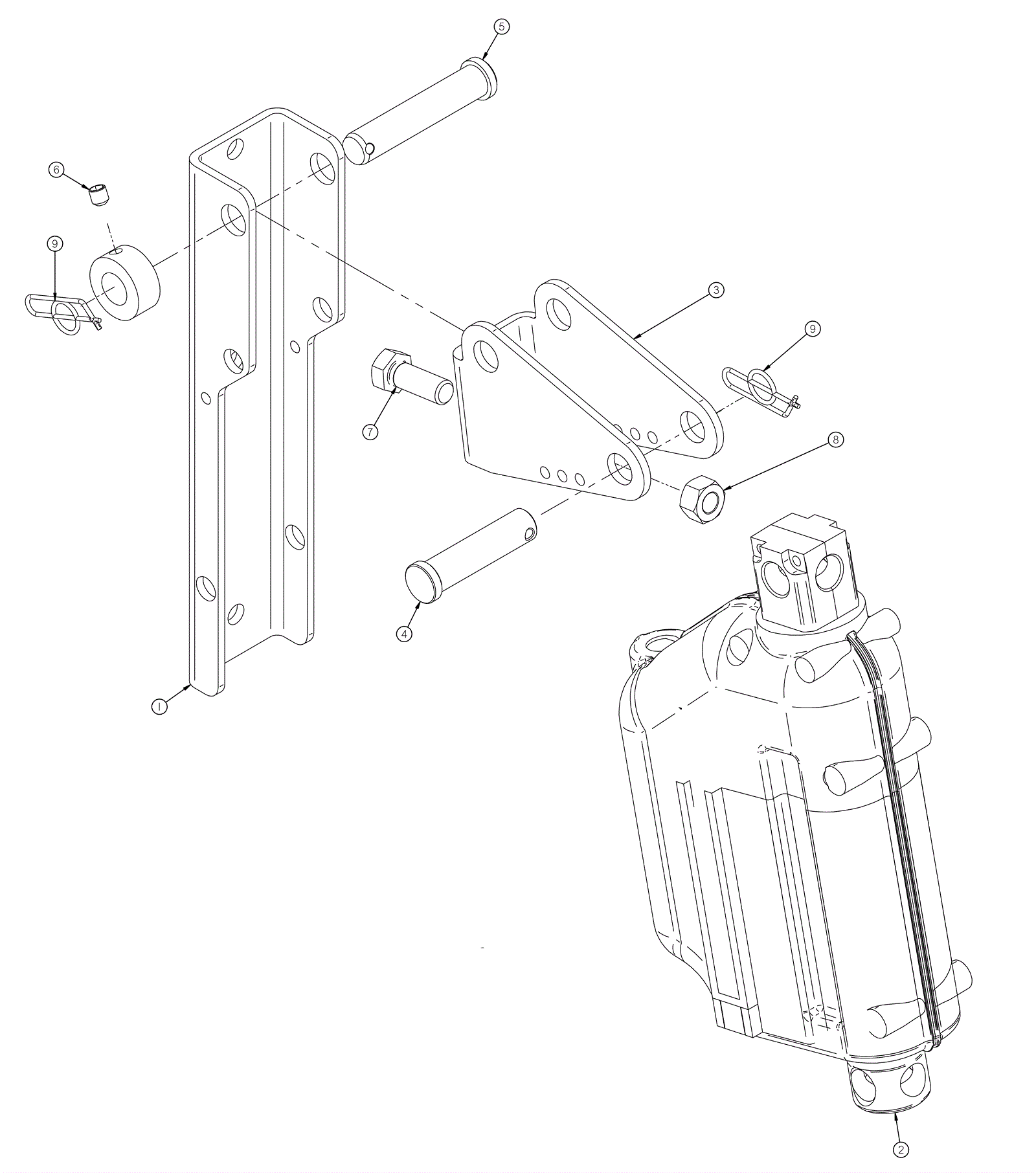

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
202-6019
|
Anchor, Actuator |
1 |
|
|
2 |
202-4042
|
24V actuator |
1 |
|
|
3 |
202-7359
|
Arm, Actuator |
1 |
|
|
4 |
202-3401
|
Clevis pin |
1 |
|
|
5 |
202-4141
|
Clevis pin 1/2 x 2 1/2 inch |
1 |
|
|
6 |
202-3222
|
Shaft collar with set screw |
1 |
|
|
7 |
999-0562
|
Bolt 3/8-16 x 1 hex head stainless steel |
1 |
|
|
8 |
999-0635
|
Nut 3/8-16 hex stainless steel |
1 |
|
|
9 |
202-2059
|
Cotter ring |
2 |
|
|
