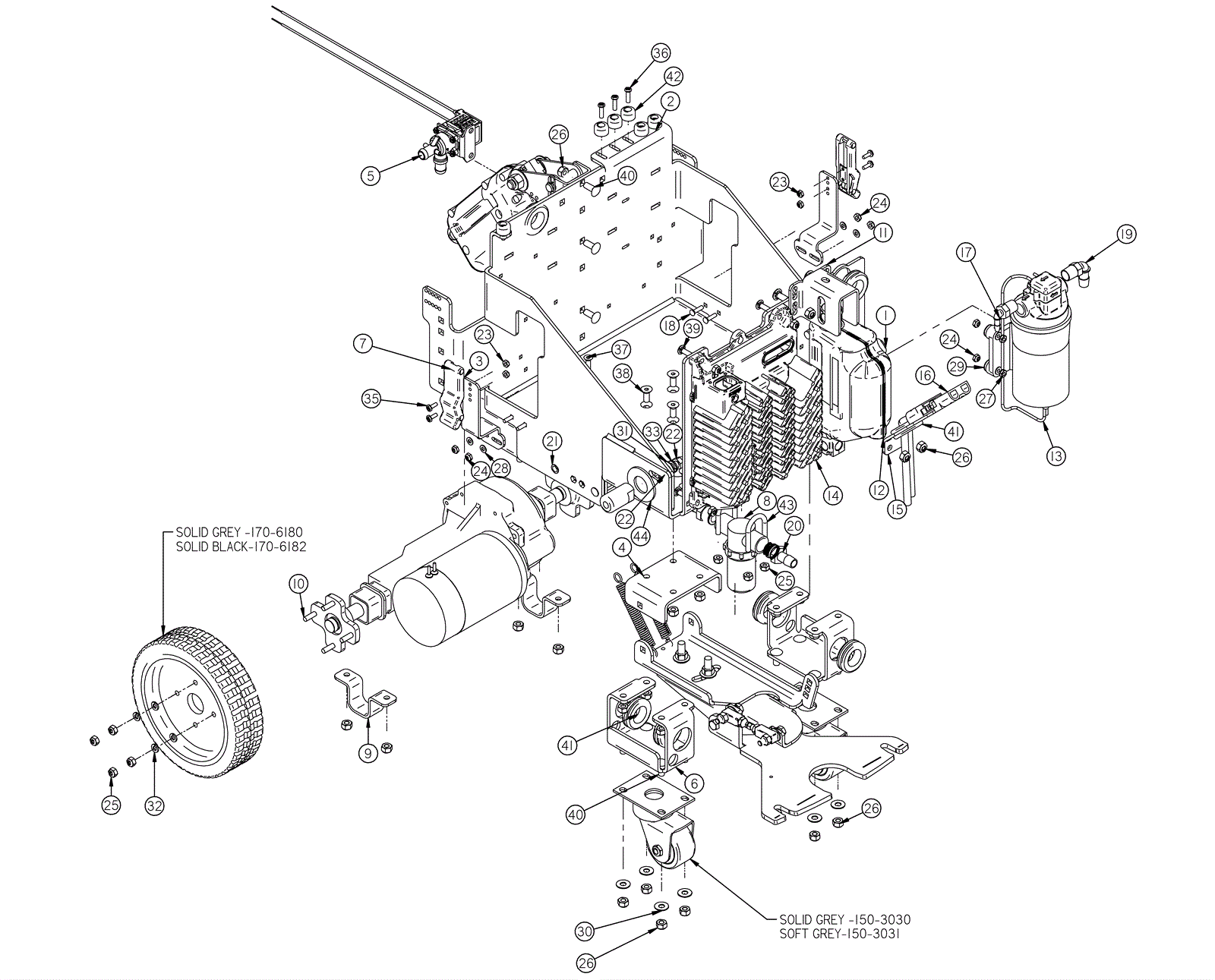

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
202-5317
|
Female stud |
2 |
|
|
2 |
202-5999
|
Mainframe, Sport |
1 |
|
|
3 |
202-6003
|
Tank Latch |
2 |
|
|
4 |
202-6024
|
Bracket, Squeegee Drag |
1 |
|
|
5 |
202-5351
|
Adjustable solution flow valve |
1 |
|
|
6 |
202-6064
|
Caster Mount |
2 |
|
|
7 |
202-1487
|
Latch |
2 |
|
|
8 |
202-6442
|
Filter,Inline, Blue Filter |
1 |
|
|
9 |
202-0911
|
Axle mount |
2 |
|
|
10 |
202-0908
|
Transaxle assembly |
1 |
|
|
11 |
202-5026
|
Squeegee lifting bracket |
1 |
|
|
12 |
202-4042
|
24V actuator |
1 |
|
|
13 |
202-6852
|
Pump,24V,High PSI |
1 |
|
|
14 |
202-7022
|
Charger, 24V,37A Onboard, Universal Charger w/Power Cord |
1 |
|
|
15 |
202-7091
|
Bracket, Charger Connector |
1 |
|
|
16 |
991-9284
|
50amp charger plug SB50 with pins (red) |
2 |
|
|
17 |
202-5011
|
90 degree hose barb |
1 |
|
|
18 |
999-1873
|
Bolt 10-32 x 3/4 carriage head stainless steel |
4 |
|
|
19 |
202-3236
|
Threaded barb |
1 |
|
|
20 |
202-3263
|
Fitting 1/2 x 1/2 inch |
2 |
|
|
21 |
999-0190
|
Nut 1/4-20 hex plain finish |
4 |
|
|
22 |
202-1970
|
Bolt 3/8-16 x 1-1/2 hex head stainless steel |
2 |
|
|
23 |
999-0357
|
Nut 8-32 nylon insert lock stainless steel |
4 |
|
|
24 |
999-0086
|
Nut 10-32 nylon insert lock zinc plated |
15 |
|
|
25 |
999-0294
|
Nut 1/4-20 hex nylon lock type NE stainless steel |
17 |
|
|
26 |
999-0423
|
Nut 5/16-18 nylon insert lock stainless steel |
30 |
|
|
27 |
202-2067
|
Nut 10-32 keps |
10 |
|
|
28 |
999-0998
|
Washer #10 flat stainless steel |
4 |
|
|
29 |
202-3316
|
Washer flat stainless steel |
2 |
|
|
30 |
999-0549
|
Washer 5/16 x 3/4 SAE flat stainless steel |
6 |
|
|
31 |
999-0617
|
Washer 3/8 x 1 flat stainless steel |
2 |
|
|
32 |
999-0632
|
Washer 1/4 split lock stainless steel |
4 |
|
|
33 |
999-0659
|
Washer 3/8 medium split lock stainless steel |
2 |
|
|
34 |
999-6720
|
Screw #6-32 x 2 phillips pan head stainless steel |
2 |
|
|
35 |
999-0916
|
Screw 8-32 x 1/2 pan head phillips stainless steel |
4 |
|
|
36 |
999-1044
|
Screw 10-32 x 3/4 pan head phillips stainless steel |
6 |
|
|
37 |
999-1571
|
Screw 1/4-20 x 3/4 flat head socket stainless steel |
1 |
|
|
38 |
202-2831
|
Screw 5/16-18 x 3/4 flat head socket stainless steel |
12 |
|
|
39 |
999-0963
|
Bolt 1/4-20 x 3/4 carriage head stainless steel |
4 |
|
|
40 |
999-0967
|
Bolt 5/16-18 x 3/4 carriage head stainless steel |
19 |
|
|
42 |
202-3275
|
Rubber bumper |
6 |
|
|
43 |
202-5603
|
U-bolt 1/4-20 x 1 |
2 |
|
|
44 |
202-9521
|
Washer, Rubber, 1 inchIDx2 inch OD .125 Thick |
2 |
|
|
