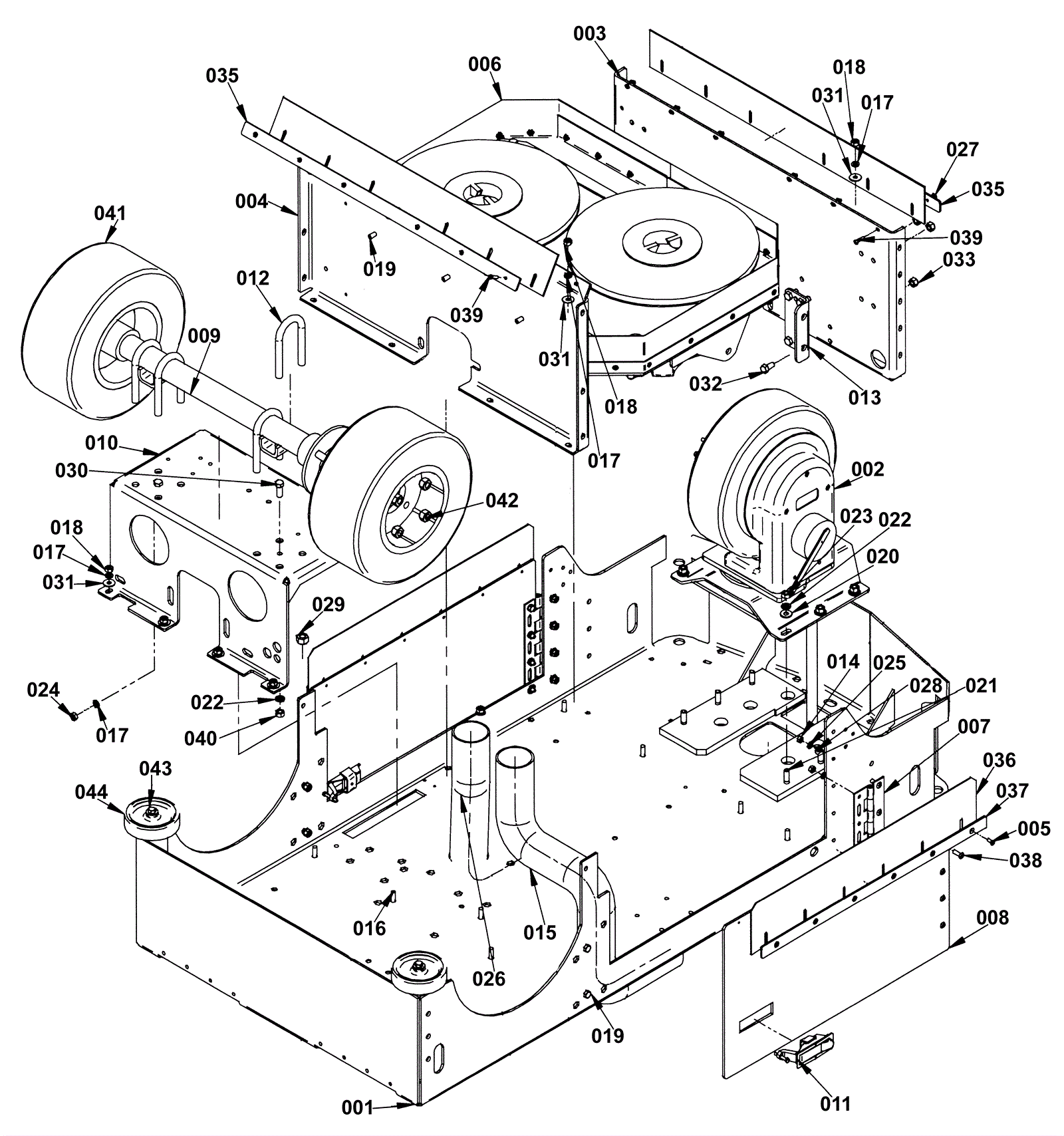

295 Frame Bottom

#PartDescriptionPriceReqNotesAvailability
001 202-2597 Frame weldment $1,048.85 1 usually ships 1-5 days
002 202-5041 36V 12 inch front drive wheel assembly w/ plate and hardware $3,266.56 1 usually ships 8-12 days
003 202-2632 Front panel $80.74 1 usually ships 1-5 days
004 202-2633 Rear panel $207.79 1 usually ships 1-5 days
005 999-1009 Screw 10-32 x 1/2 flat head phillips stainless steel $0.99 12 ships same day
007 202-0403 Hinge $24.42 2 usually ships 8-12 days
008 202-2634 Door (OBSOLETE) $71.60 2 usually ships 1-5 days
009 202-0723 Rear axle $279.40 1 usually ships 1-5 days
010 202-0726 Axle mount $146.58 1 usually ships 1-5 days
011 202-0404 Latch $49.06 2 ships same day
012 202-1154 U bolt 1/2-13 x 1 1/4 $5.50 4 usually ships 1-5 days
013 202-0733 Scrub arm bracket $20.46 2 usually ships 1-5 days
014 999-0190 Nut 1/4-20 hex plain finish $0.99 14 ships same day
015 202-2635 Dust hose $97.90 1 usually ships 1-5 days
016 999-1016 Screw 10-32 x 1 1/4 flat head phillips stainless steel $0.99 11 ships same day
017 999-0553 Washer 5/16 medium split lock stainless steel $0.99 15 ships same day
018 999-0423 Nut 5/16-18 nylon insert lock stainless steel $0.99 13 ships same day
019 999-0132 Bolt 5/16-18 x 3/4 hex head grade 5 zinc plated $2.64 7 ships same day
020 999-0617 Washer 3/8 x 1 flat stainless steel $1.82 5 ships same day
021 999-0857 Screw 3/8-24 x 1 3/4 hex head stainless steel $1.51 6 ships same day
022 999-0659 Washer 3/8 medium split lock stainless steel $0.39 7 ships same day
023 999-0169 Nut 3/8-24 hex jam plain finish $0.99 5 ships same day
024 999-0069 Nut 5/16-18 hex $0.99 3 ships same day
025 999-0632 Washer 1/4 split lock stainless steel $0.99 14 ships same day
026 202-2635 Dust hose $97.90 1 usually ships 1-5 days
027 999-0086 Nut 10-32 nylon insert lock zinc plated $0.99 7 ships same day
028 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel $0.99 8 ships same day
029 999-0842 Nut 1/2-20 nylon insert lock zinc plated $1.40 8 ships same day
030 999-0562 Bolt 3/8-16 x 1 hex head stainless steel $1.50 2 ships same day
031 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel $0.99 14 ships same day
032 999-0493 Bolt 3/8-16 x 3/4 hex head stainless steel $0.99 8 ships same day
033 999-0513 Nut 3/8-16 nylon insert lock type NE stainless steel $3.96 6 ships same day
034 202-2636 Lateral curtain $12.54 2 usually ships 8-12 days
035 202-2637 Rear curtain manufactoring strip $43.45 2 usually ships 1-5 days
036 202-2638 Side curtain $48.40 2 usually ships 8-12 days
037 202-2639 Door curtain band (OBSOLETE) $41.11 2 usually ships 1-5 days
039 999-1008 Screw 10-32 x 3/4 round head phillips stainless steel $0.99 12 ships same day
040 999-0635 Nut 3/8-16 hex stainless steel $0.99 2 ships same day
041 202-1288 Rear wheel $1,046.93 2 usually ships 1-5 days
042 202-1153 Nut 1/2-20 lug $5.50 8 usually ships 1-5 days
043 999-0911 Screw 5/16-18 x 3 hex head stainless steel $4.75 2 ships same day
044 202-0174 Squeegee guide wheels w/ collar and hardware (pkg of 2) $50.49 2 usually ships 8-12 days
