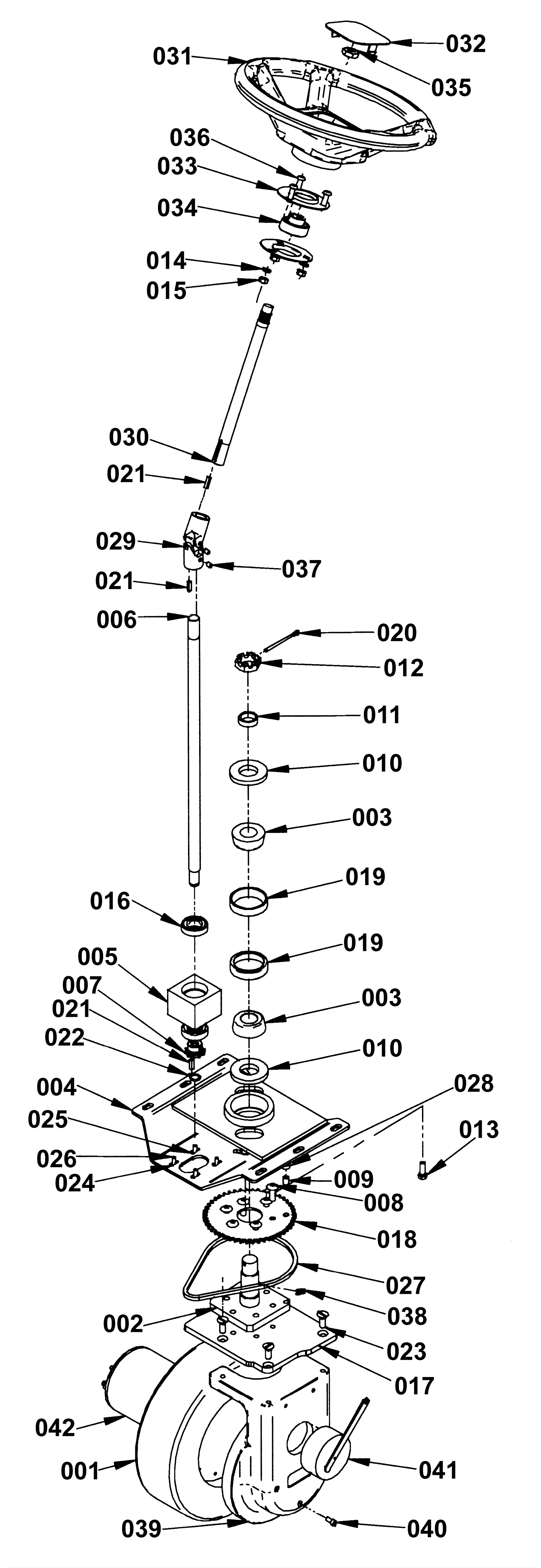

295 Steering and Traction

#PartDescriptionPriceReqNotesAvailability
001 202-2629 Smooth gray tire $973.17 1 usually ships 1-5 days
002 202-1802 Steering shaft kit $418.33 1 usually ships 1-5 days
003 202-0766 Tapered bearing $24.42 2 usually ships 8-12 days
004 202-0764 Drop plate (OBSOLETE) $233.97 1 usually ships 1-5 days
005 202-0771 Bearing block $205.48 1 usually ships 8-12 days
006 202-0762 Lower steering shaft (OBSOLETE) $40.48 1 usually ships 1-5 days
007 202-0280 10 toothed sprocket $31.13 1 usually ships 8-12 days
008 999-1011 Screw 3/8-24 x 1 button head socket plain finish $1.40 6 ships same day
009 202-1169 Clevis pin $10.91 1 usually ships 1-5 days
010 202-0768 Seal $32.01 2 usually ships 8-12 days
011 202-0769 Sleeved bearing $5.50 1 usually ships 8-12 days
012 202-1166 Slotted castle nut $9.35 1 usually ships 8-12 days
013 999-0031 Bolt 5/16-18 x 1 hex head grade 5 zinc plated $0.99 2 ships same day
014 999-0553 Washer 5/16 medium split lock stainless steel $0.99 5 ships same day
015 999-0069 Nut 5/16-18 hex $0.99 9 ships same day
016 202-0160 Bearing $41.80 2 usually ships 8-12 days
017 202-1802 Steering shaft kit $418.33 1 usually ships 1-5 days
018 202-1802 Steering shaft kit $418.33 1 usually ships 1-5 days
019 202-0767 Bearing cap $24.86 2 usually ships 8-12 days
020 997-2520 Cotter pin $2.18 1 usually ships 12-18 days
021 164-1029 Square keyway $13.22 3 usually ships 18-33 days
022 202-0281 Snap ring $5.50 1 usually ships 8-12 days
023 999-0992 Screw 3/8-16 x 1 flat head slotted zinc plated $0.99 4 usually ships 1-5 days
024 999-0060 Washer 1/4 split lock plain finish $0.99 2 ships same day
025 999-0435 Screw 1/4-20 x 5/8 socket head alloy plain finish $0.99 2 ships same day
026 999-0020 Bolt 1/4-20 x 3/4 hex head grade 5 zinc plated $0.99 2 ships same day
027 202-0770 Steering chain (29 links) (sold as one piece) $33.11 1 usually ships 8-12 days
028 202-0775 PVC tube $6.31 1 usually ships 1-5 days
029 202-0760 U-joint $131.23 1 usually ships 8-12 days
030 202-0761 Upper steering shaft $63.03 1 usually ships 1-5 days
031 202-0772 Steering wheel $147.73 1 usually ships 1-5 days
032 202-0773 Steering cover $15.07 1 usually ships 1-5 days
033 202-0143 Bearing mount $15.84 2 usually ships 1-5 days
034 202-0142 Upper steering bearing $31.24 1 usually ships 8-12 days
035 999-0968 Nut 5/8-11 nylon insert jam lock zinc plated $2.27 1 ships same day
036 999-1507 Screw 5/16-18 x 1 button head socket stainless steel $1.88 3 ships same day
038 202-0283 Master link $5.50 1 usually ships 8-12 days
039 202-0758 Drive wheel housing w/ motor and brake (wheel not included) $2,393.38 1 usually ships 1-5 days
040 999-0338 Screw 1/4-20 x 1/2 socket head shoulder $8.75 3 ships same day
041 202-2455 Brake assembly $619.80 1 ships same day
042 202-2630 36v Motor $420.64 1 usually ships 1-5 days
