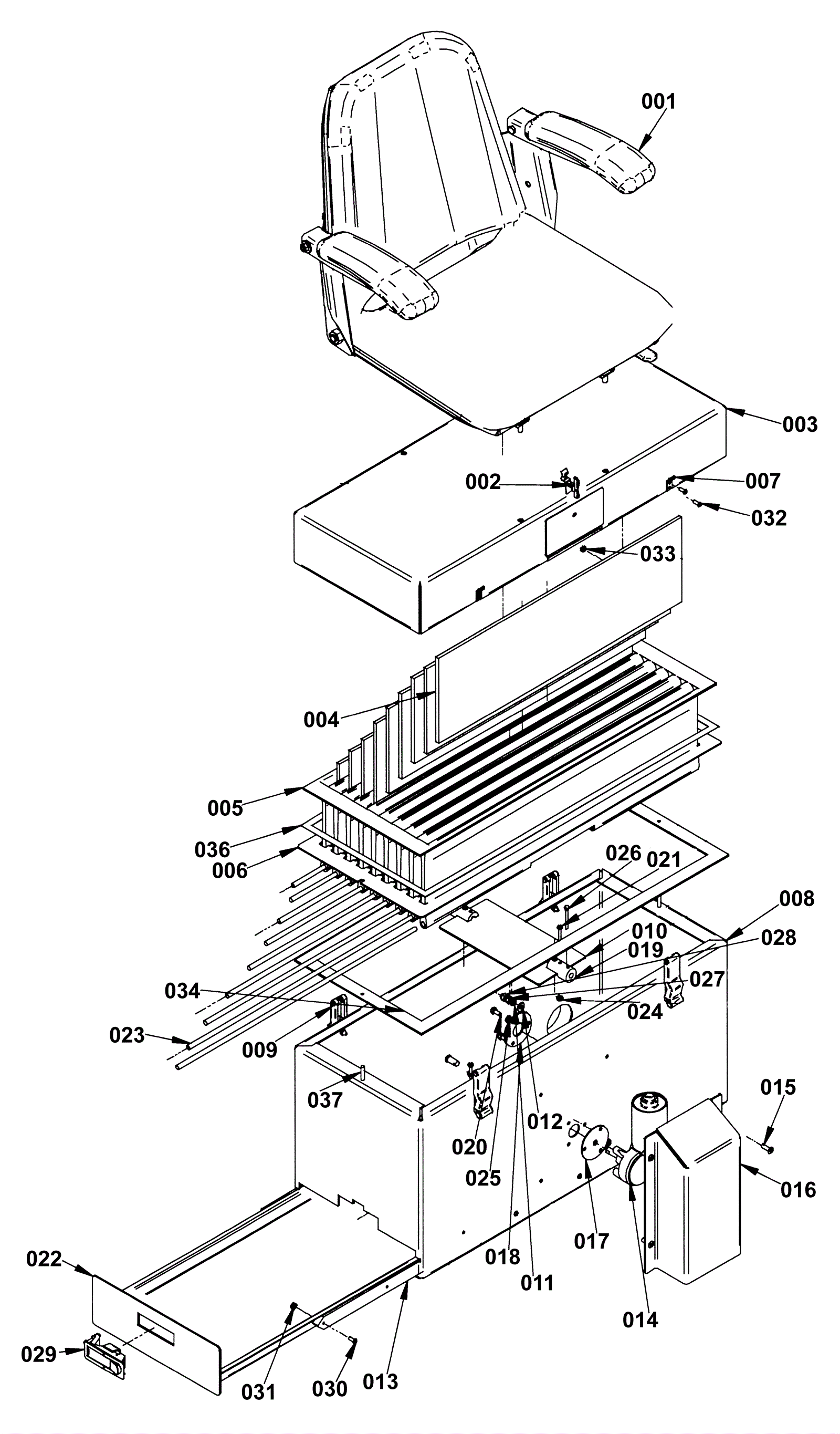

| # | Part | Description | Price | Req | Notes | Availability |
|---|
001 |
202-0081
|
Seat with switch, cover, locking track and mounting |
$740.52
|
1 |
|
usually ships 8-12 days |
002 |
202-2606
|
Door latch |
$11.66
|
1 |
|
usually ships 8-12 days |
003 |
202-2607
|
Filter hood |
$145.20
|
1 |
|
usually ships 1-5 days |
004 |
202-2608
|
Filter separator |
$70.62
|
9 |
|
usually ships 1-5 days |
005 |
202-2609
|
Filter element |
$652.63
|
1 |
|
usually ships 1-5 days |
006 |
202-2610
|
Filter grill (OBSOLETE) |
$50.49
|
1 |
|
usually ships 1-5 days |
007 |
202-1487
|
Latch |
$25.19
|
4 |
|
usually ships 8-12 days |
008 |
202-2612
|
Filter chambert |
$3.85
|
1 |
|
usually ships 1-5 days |
009 |
202-1487
|
Latch |
$25.19
|
4 |
|
usually ships 8-12 days |
011 |
999-0632
|
Washer 1/4 split lock stainless steel |
$0.99
|
5 |
|
ships same day |
012 |
999-0355
|
Washer 3/8 x 7/8 SAE flat stainless steel |
$0.99
|
5 |
|
ships same day |
013 |
202-2614
|
Slide rail |
$16.06
|
2 |
|
usually ships 1-5 days |
014 |
202-0997
|
Side broom motor |
$378.40
|
1 |
|
usually ships 1-5 days |
016 |
202-2615
|
Filter cleaning motor cover |
$57.20
|
1 |
|
usually ships 1-5 days |
017 |
991-2121
|
24V .75HP brush motor assembly with gear box |
$416.75
|
1 |
|
ships same day |
018 |
202-2616
|
Gasket backing plate |
$16.83
|
1 |
|
usually ships 1-5 days |
019 |
202-2617
|
Filter cleaner motor coupler |
$29.48
|
2 |
|
usually ships 1-5 days |
020 |
999-1465
|
Screw M6-1 x 14mm hex head zinc plated |
$0.99
|
3 |
|
usually ships 12-18 days |
021 |
999-0870
|
Screw 8 x 3/4 pan head phillips stainless steel |
$0.99
|
4 |
|
ships same day |
022 |
202-2618
|
Dust tray |
$89.32
|
1 |
|
usually ships 1-5 days |
023 |
202-2619
|
Filter weight rod |
$111.21
|
9 |
|
ships same day |
024 |
999-0086
|
Nut 10-32 nylon insert lock zinc plated |
$0.99
|
4 |
|
ships same day |
025 |
999-0060
|
Washer 1/4 split lock plain finish |
$0.99
|
3 |
|
ships same day |
026 |
202-2620
|
Cotter pin 1/4 inch x 1 1/5 inch |
$5.50
|
1 |
|
usually ships 1-5 days |
027 |
999-0609
|
Nut 1/4-20 hex stainless steel |
$0.99
|
5 |
|
ships same day |
028 |
999-0429
|
Nut 1/4-20 acorn nickel plated |
$0.99
|
5 |
|
ships same day |
029 |
202-0404
|
Latch |
$49.06
|
1 |
|
ships same day |
030 |
999-0074
|
Screw 10-32 x 1/2 round head slotted zinc plated |
$0.99
|
10 |
|
ships same day |
032 |
202-2621
|
Screw 6-32 x 1/2 round head phillips |
$5.50
|
16 |
|
usually ships 8-12 days |
033 |
202-2622
|
Nut 6 - 32 hex, ss |
$4.40
|
16 |
|
usually ships 1-5 days |
034 |
202-2623
|
77 1/2 inch rubber gasket (black) |
$104.61
|
1 |
|
usually ships 1-5 days |
036 |
202-2624
|
1/2 double sided tape |
$42.79
|
1 |
|
usually ships 8-12 days |
