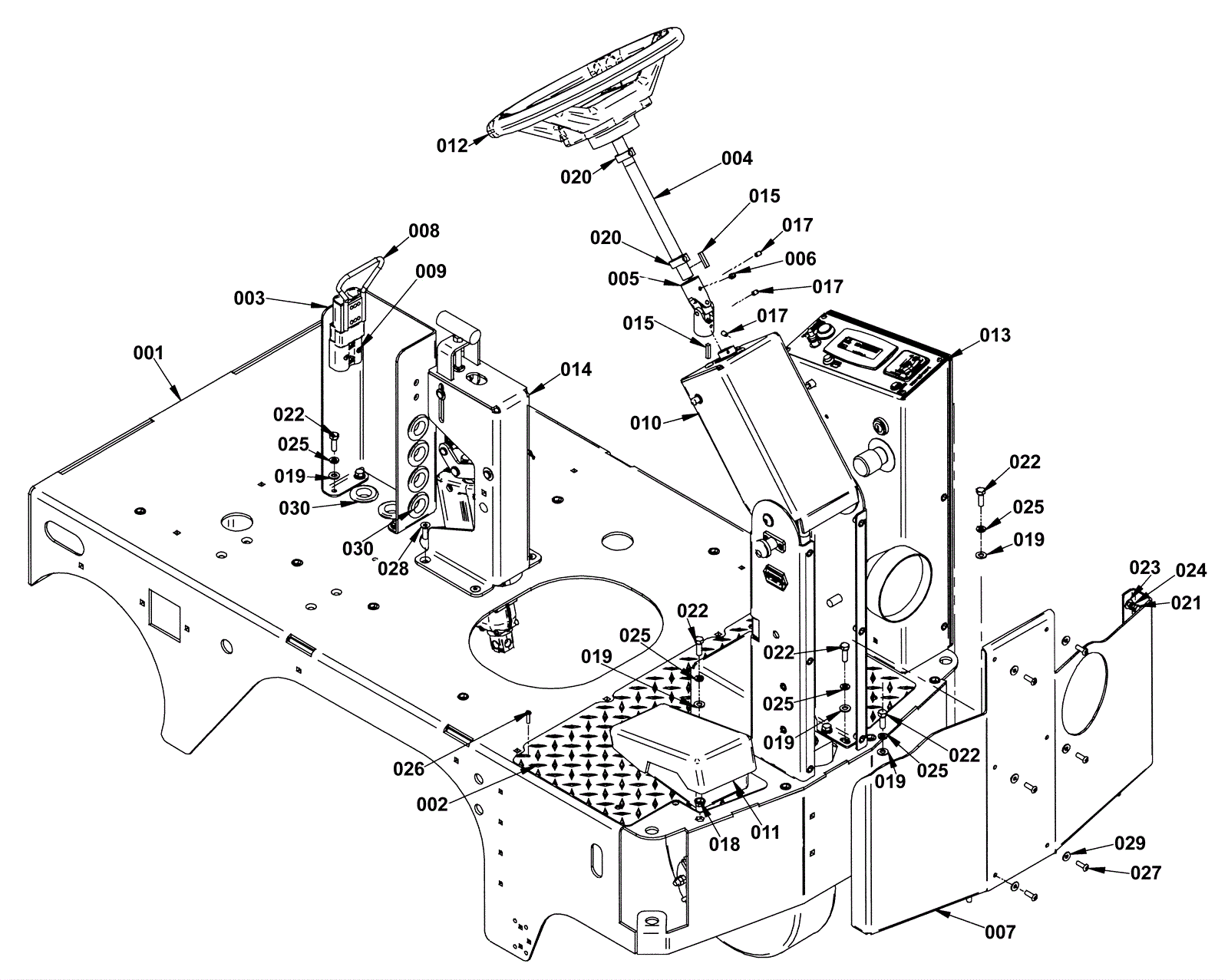

275 Machine top Componaints

#PartDescriptionPriceReqNotesAvailability
001 202-2520 Frame weldment $1,191.08 1 usually ships 1-5 days
002 202-2581 Non skid floor plate $120.45 1 usually ships 1-5 days
003 202-2582 Hood strap upright $79.20 1 usually ships 1-5 days
004 202-0761 Upper steering shaft $63.03 1 usually ships 1-5 days
005 202-0760 U-joint $131.23 1 usually ships 3-11 days
006 202-2404 Fitting $5.50 1 usually ships 1-5 days
007 202-2583 Front apron $168.19 1 usually ships 1-5 days
008 202-2584 Connector handle $55.66 1 usually ships 1-5 days
009 202-3287 Battery connector housing $29.48 2 usually ships 1-5 days
010 202-2586 36V steering upright (OBSOLETE) Call for price 1 usually ships 1-5 days
011 202-0362 Foot pedal assembly (includes potentiometer) $657.18 1 usually ships 3-11 days
012 202-0772 Steering wheel $147.73 1 usually ships 1-5 days
013 202-2587 Central command II (OBSOLETE) Call for price 1 usually ships 1-5 days
014 202-2588 Actuator pivot (OBSOLETE) Call for price 1 usually ships 1-5 days
015 202-0847 Square keyway $5.50 2 usually ships 3-11 days
016 202-2589 Nut 10-32 crimp hex $5.50 5 usually ships 1-5 days
019 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel $0.99 17 ships same day
020 202-2216 Shaft collar with set screw $5.50 2 usually ships 3-11 days
021 999-0297 Bolt 1/4-20 x 1 hex head stainless steel $2.53 2 ships same day
022 999-0424 Bolt 5/16-18 x 1 hex head stainless steel $0.99 17 ships same day
023 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel $0.99 2 ships same day
024 999-0632 Washer 1/4 split lock stainless steel $0.99 1 ships same day
025 999-0553 Washer 5/16 medium split lock stainless steel $0.99 17 ships same day
026 999-1008 Screw 10-32 x 3/4 round head phillips stainless steel $0.99 4 ships same day
028 999-0734 Screw 5/16-18 x 1 3/4 flat head socket zinc plated $1.25 4 ships same day
029 999-0563 Washer 1/4 x 1/16 flat nylon $0.99 6 ships same day
030 202-2592 Grommet $5.50 6 usually ships 3-11 days
